INTERIOR
ORION
Adjustable Solid State Downlight
The ORION family is a high-performance recessed downlight range combining advanced thermal management with passive cooling for reliable LED performance. Constructed from aluminium, the range includes round, trimless, XL and wall-wash variants to suit different architectural applications. Adjustable models feature 30° tilt and 355° rotation for precise beam positioning, while secondary reflectors help reduce glare or provide dedicated wall-wash distribution. CRI >90 and 2-Step MacAdam ellipse binning ensure excellent colour quality and consistency.
Selected variants are rated for 90-minute fire resistance in solid joist constructions, while the trimless model is also available with an IP54 option.
Range Specifications
InstallationRECESSED / RECESSED TRIMLESS
Wattage13W – 21W
Lumen Output741LM – 2247LM
Colour Temperature2700K – 4000K
Diameter67 MM – 110 MM
ROUND
Round Adjustable Solid State Downlight
1417LM - 1508LM | 13W IP20 | 2700K - 4000K
ROUND TRIMLESS
Trimless Round Adjustable Solid State Downlight
1322LM - 1469LM | 13W IP20 - IP54 | 2700K - 3000K

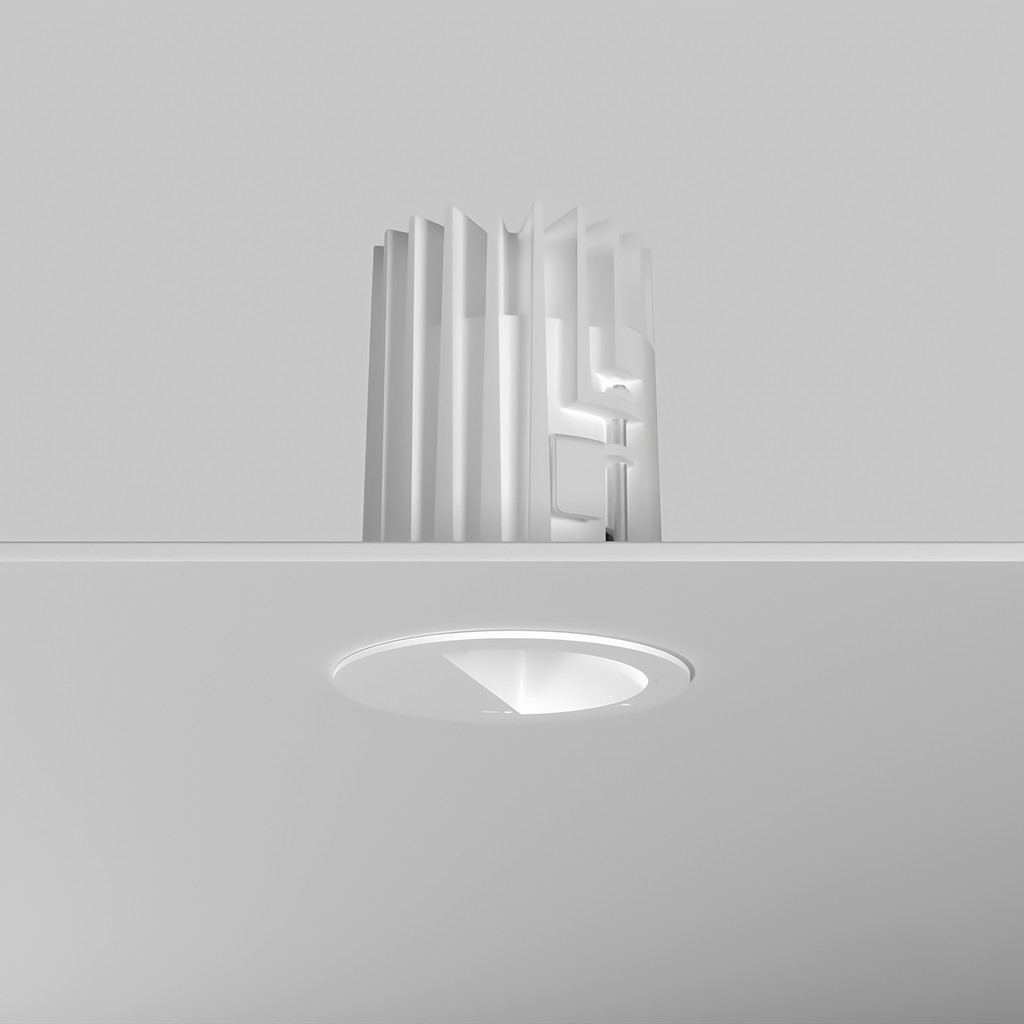

ROUND WALL WASH
Round Wall Wash Solid State Downlight
741LM - 858LM | 13W IP20 | 2700K - 4000K

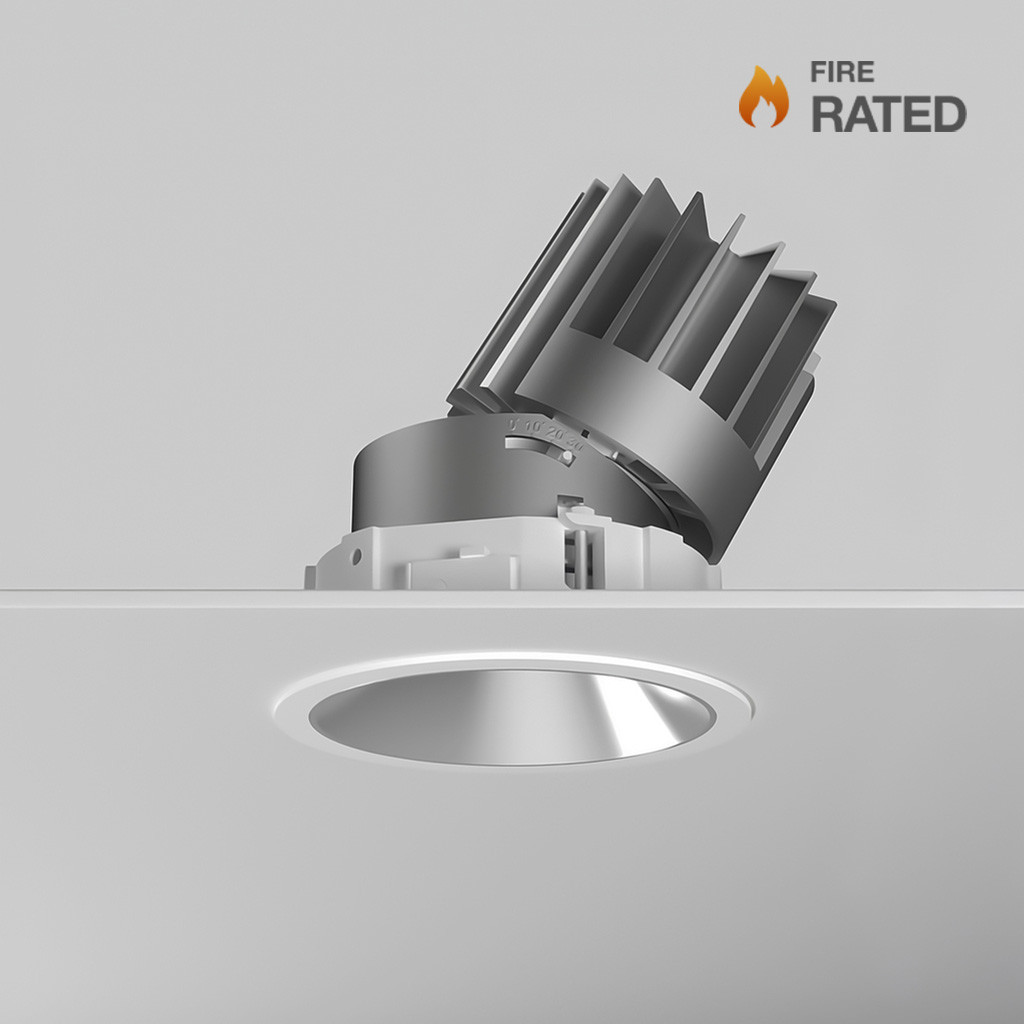

ROUND XL
Round XL Adjustable Solid State Downlight
1995LM - 2247LM | 21W IP20 | 2700K - 4000K
Round Adjustable Solid State Downlight
Product CodeFinishCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
