ORLINE-50
Linear Fixture
The ORLINE-50 is a modular architectural linear lighting system designed for flexible commercial and interior applications. A tongue-and-groove locking mechanism enables seamless connection between multiple lengths, creating isolated modules, continuous lines of light and bespoke configurations.
The range includes suspended, surface-mounted, wall-mounted, recessed and trimless recessed options, with DUO variants providing upward and downward illumination. Integral control gear, multiple power outputs and CRI >80 or 90 support varied project requirements. Standard configurations are available up to 15m, with bespoke lengths, low-UGR options, tuneable white, track mounted and custom shaped arrangements also available.
Wattage options available (Down Only):
12W/M | 17W/M | 26W/M (Standard) | 36W/M | 45W/M | |
|---|---|---|---|---|---|
3K | 1630LM/M | 2160LM/M | 3018LM/M | 4129LM/M | 5014LM/M |
4K | 1706LM/M | 2261LM/M | 3254LM/M | 4321LM/M | 5247LM/M |
Wattage options available (Duo Only):
15W/M | 21W/M (Standard) | 33W/M | 47W/M | 59W/M | |
|---|---|---|---|---|---|
3K | 2241LM/M | 2970LM/M | 4274LM/M | 5677LM/M | 6895LM/M |
4K | 2346LM/M | 3285LM/M | 4473LM/M | 5941LM/M | 7215LM/M |
Range Specifications
InstallationRECESSED / RECESSED TRIMLESS / SURFACE MOUNTED / SUSPENDED +1 more
Wattage22W – 64W
Lumen Output3168LM – 8112LM
Colour Temperature3000K – 4000K
Width50 MM

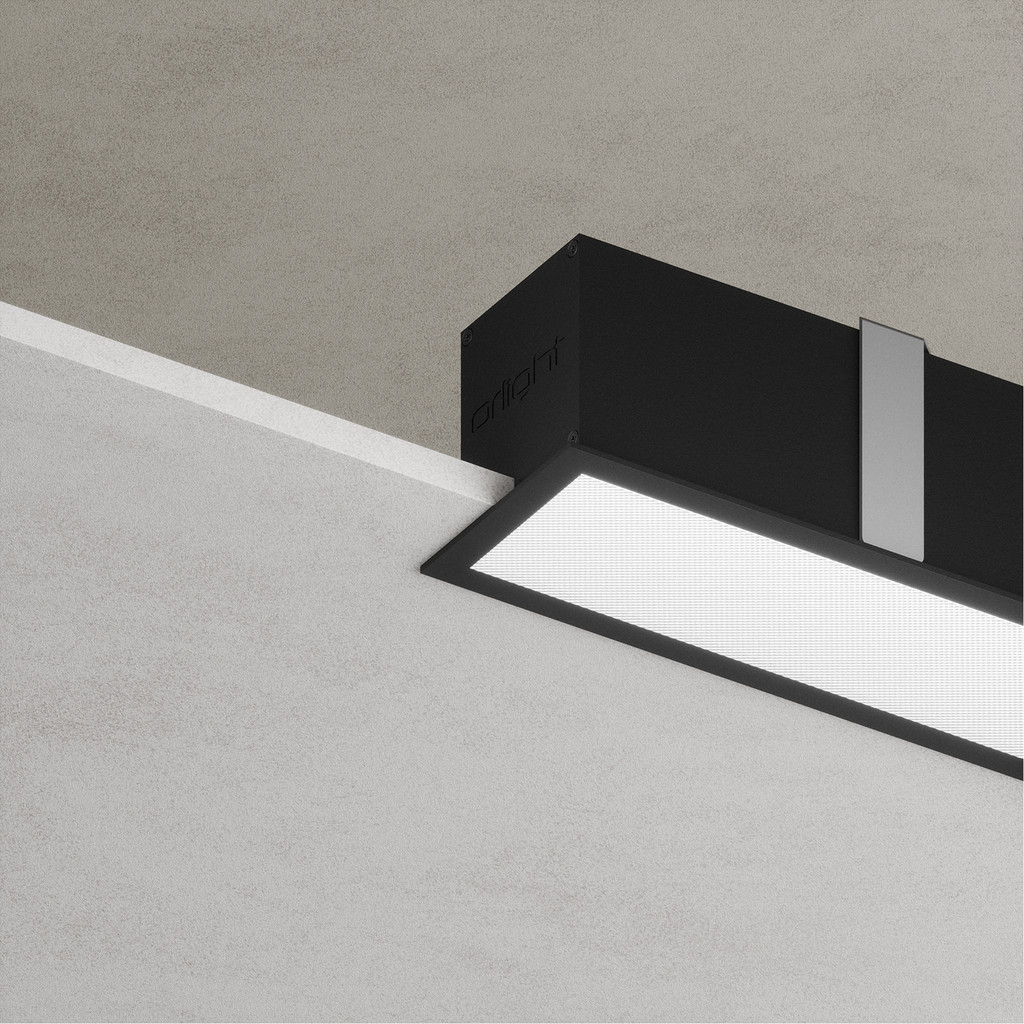

RECESSED
Recessed Linear Fixture
3220LM - 8000LM | 28W - 64W IP20 | 3000K - 4000K

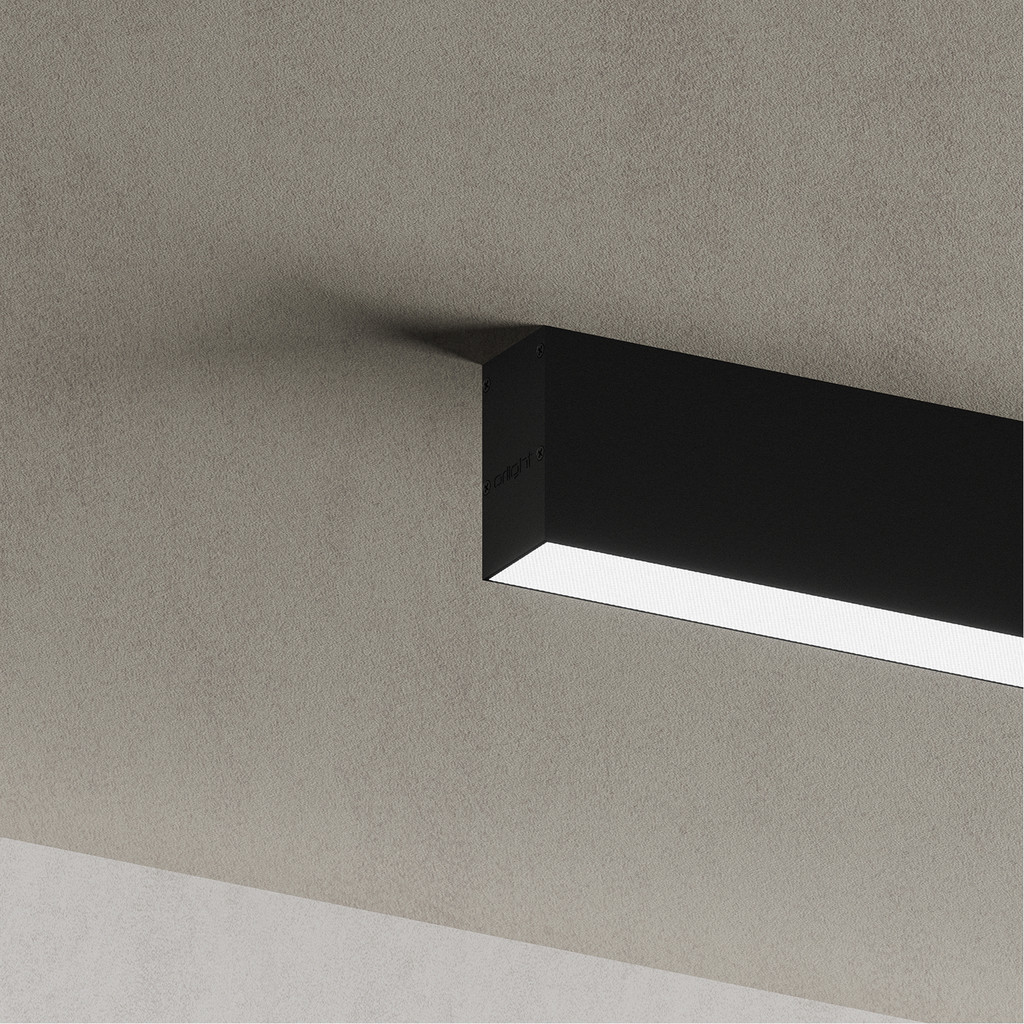

SURFACE MOUNTED
Surface Mounted Linear Fixture
3220LM - 8000LM | 28W - 64W IP20 | 3000K - 4000K

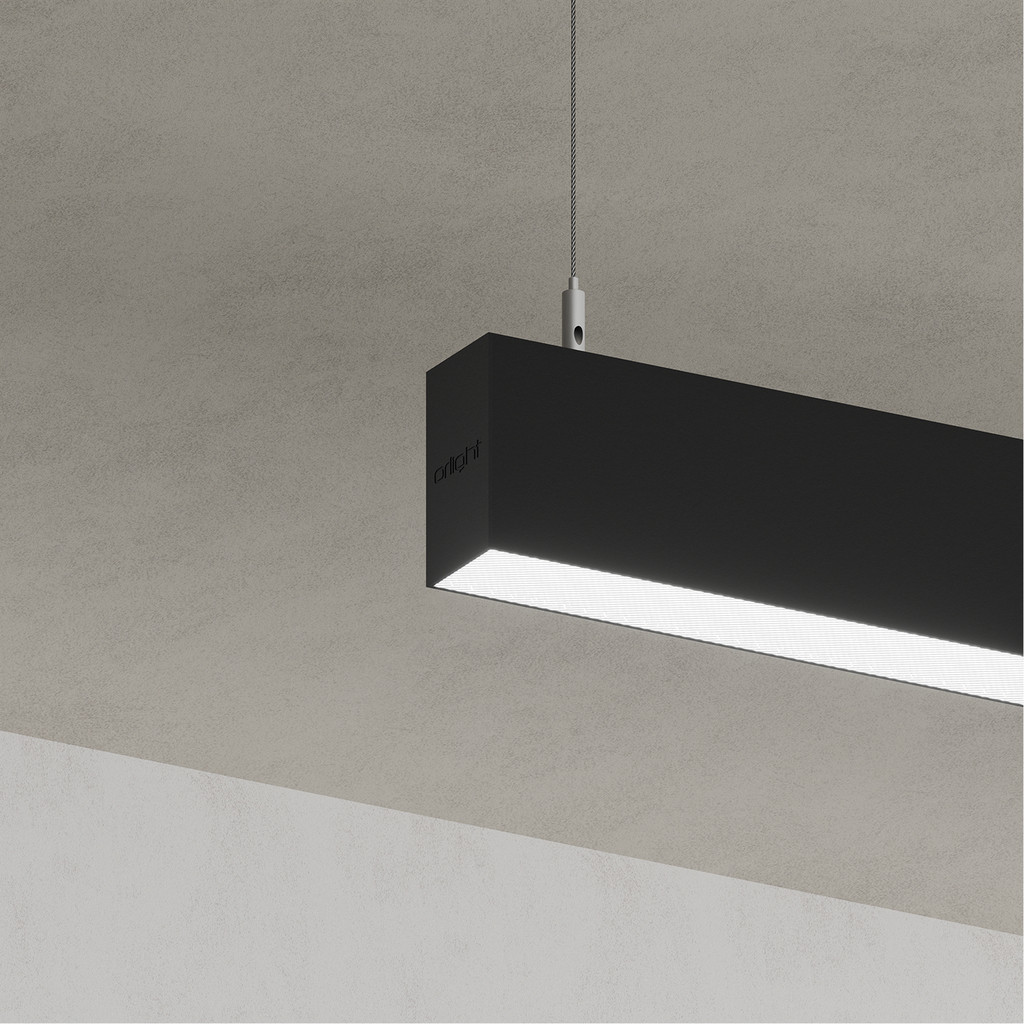

SUSPENDED
Suspended Linear Fixture
3220LM - 8000LM | 26W - 64W IP20 | 3000K - 4000K
DUO
Suspended Duo Linear Fixture
3168LM - 8112LM | 22W - 52W IP20 | 3000K - 4000K

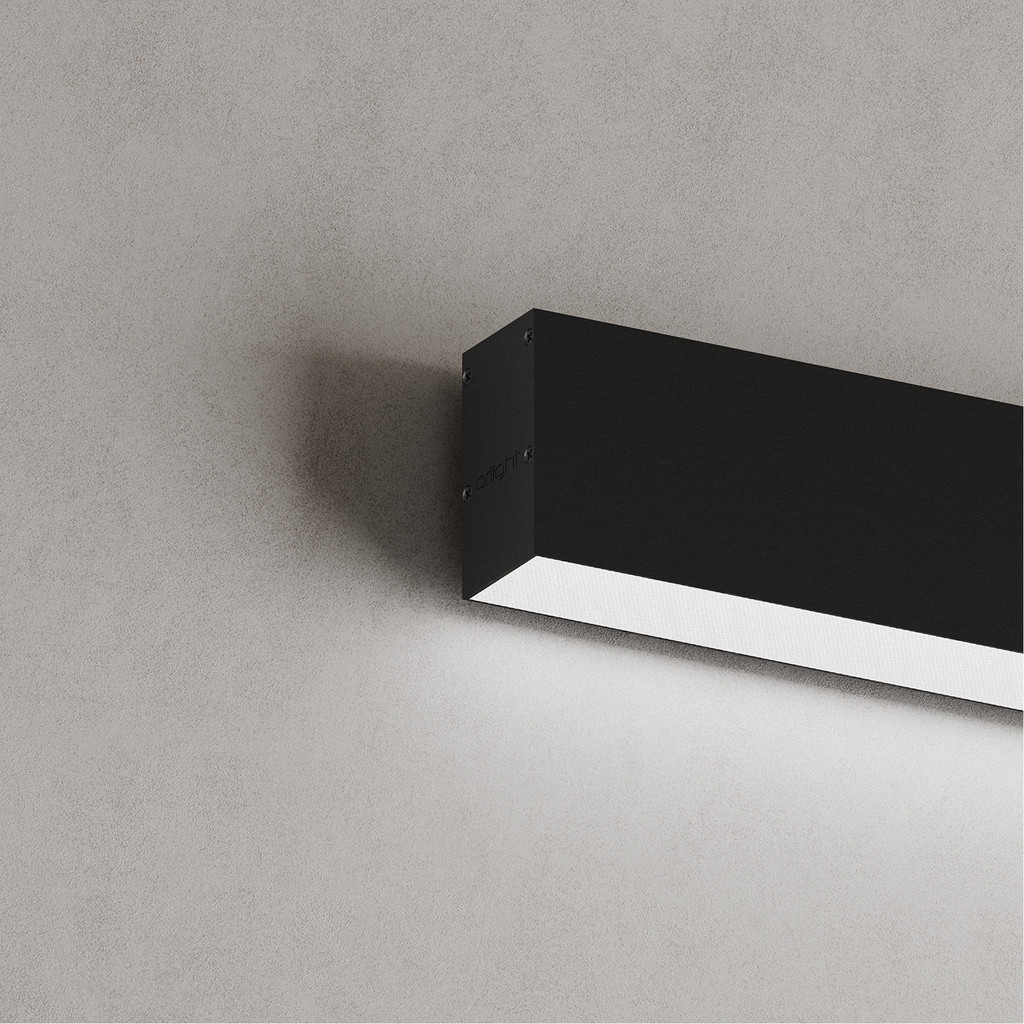

WALL MOUNTED
Wall Mounted Linear Fixture
3220LM - 8000LM | 28W - 64W IP20 | 3000K - 4000K

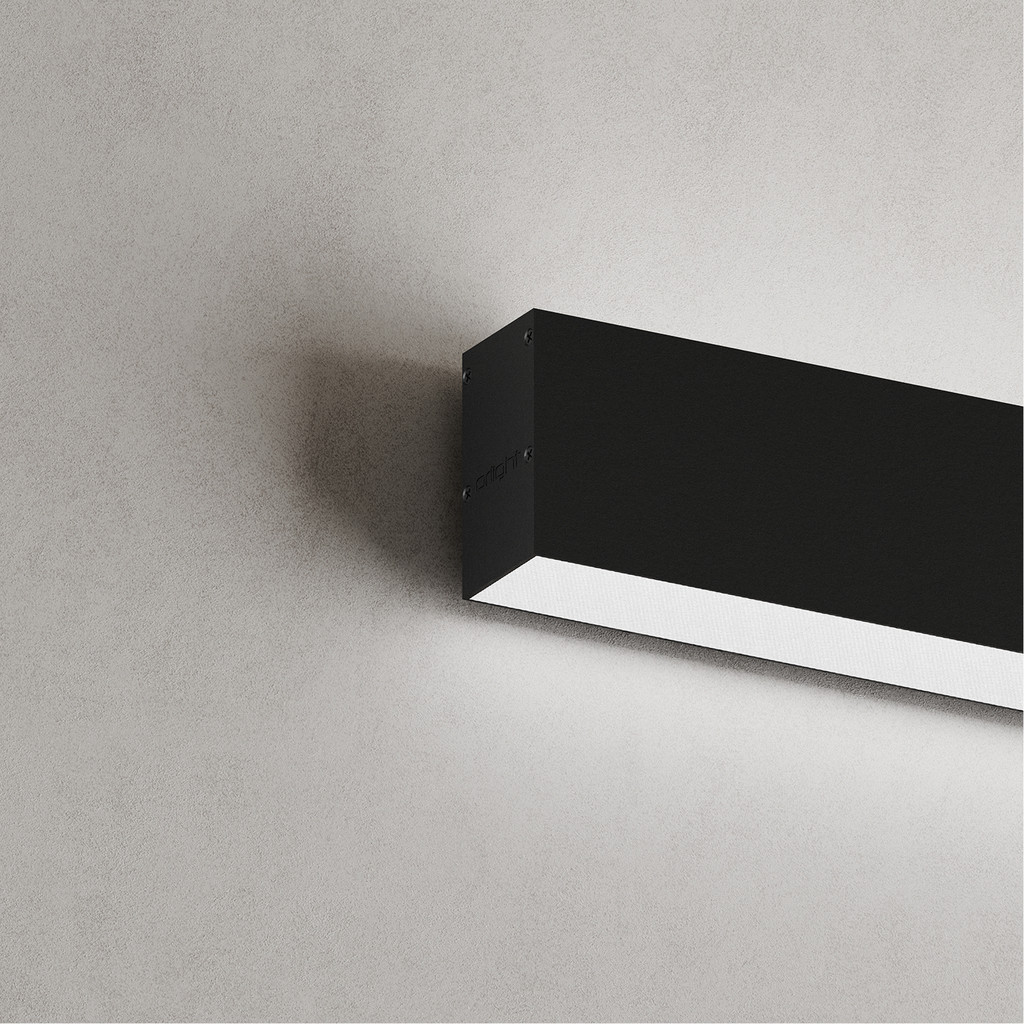

DUO WALL MOUNTED
Wall Mounted Duo Linear Fixture
3168LM - 8112LM | 22W - 52W IP20 | 3000K - 4000K

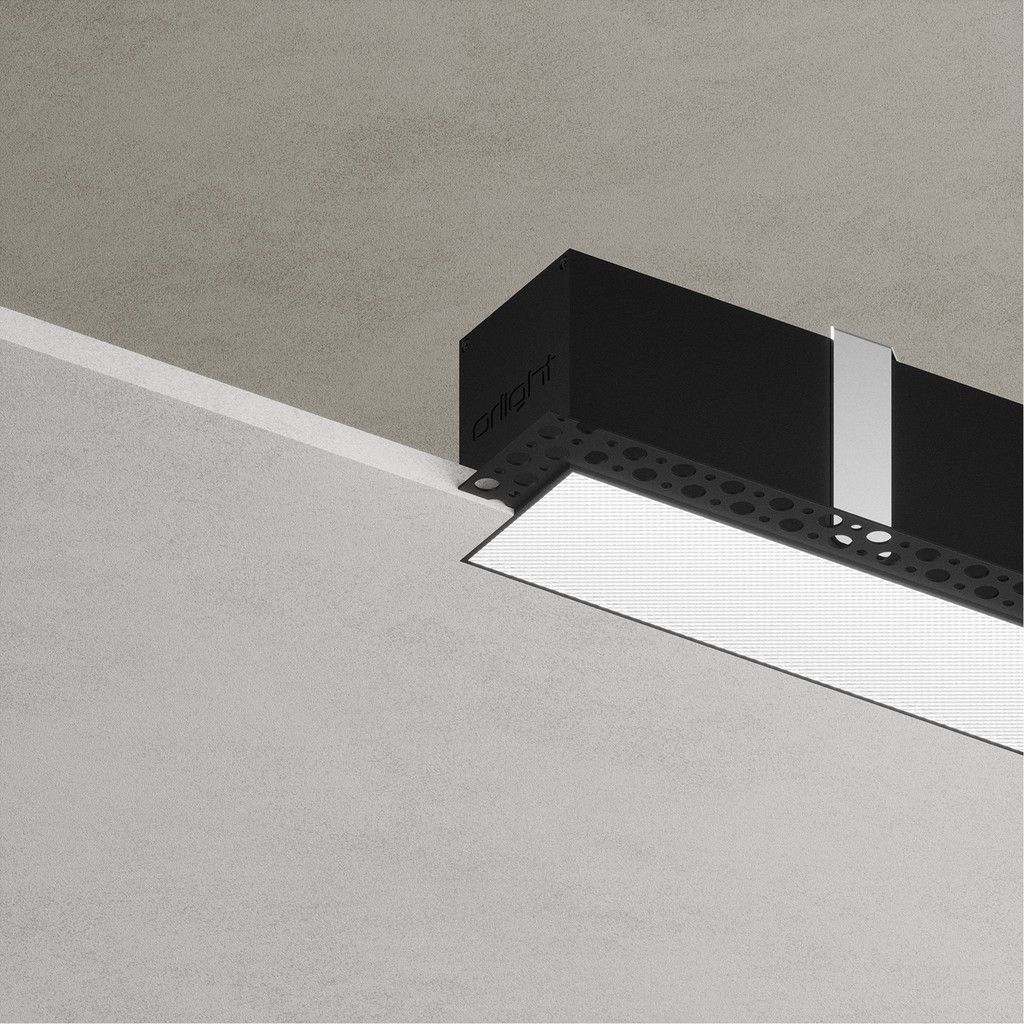

RECESSED TRIMLESS
Recessed Trimless Linear Fixture
3220LM - 8000LM | 28W - 64W IP20 | 3000K - 4000K
Recessed Linear Fixture
Product CodeFinishLengthCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
White1430 Mm3000K37W4255 LM115LM/WDALI DimmableYes290 LM
