LINEAR SYSTEMS
DATA-PRO
LED Trunking Lighting System
The DATA-PRO family is a modular linear trunking system designed for efficient, flexible lighting across industrial and commercial applications. Constructed from aluminium, the pre-wired plug-and-play system supports continuous lighting runs and is available in 1200mm and 1500mm luminaire formats.
A dual power supply allows customised circuit arrangements, while advanced thermal management supports reliable LED performance. Various trunking lengths and L, T and X connectors provide flexibility for complex layouts, with rod, wire, chain and surface mounting options available. A choice of beam angles and colour temperatures allows the system to be configured to suit different project requirements.
Range Specifications
InstallationPLUG & PLAY
ConstructionALUMINIUM
Wattage30W – 70W
Colour Temperature3000K – 4000K
ControlDALI DIMMABLE
DATA-PRO-1200
LED Trunking Lighting System
5340LM - 11880LM | 30W - 60W IP20 | 3000K - 4000K

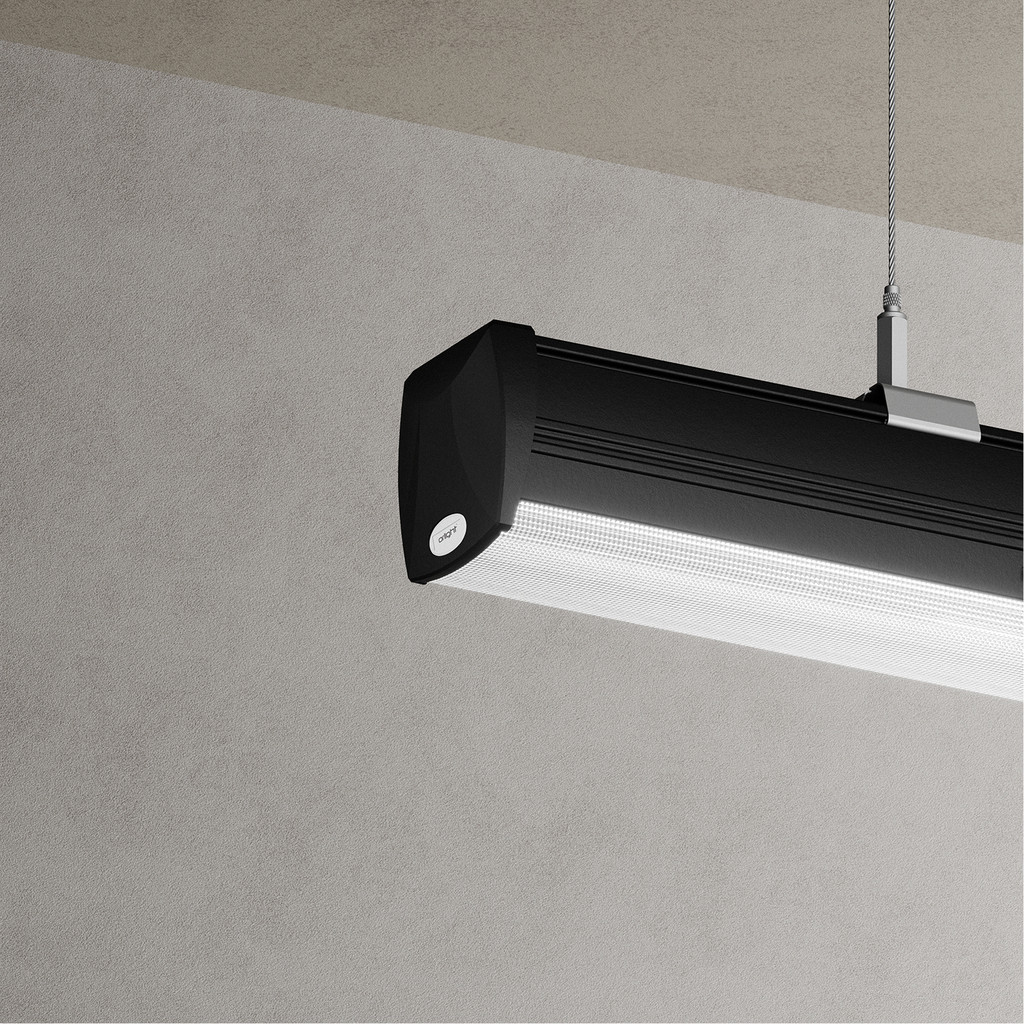

DATA-PRO-1500
LED Trunking Lighting System
6144LM - 13899LM | 35W - 70W IP20 | 3000K - 4000K
LED Trunking Lighting System
Product CodeIP RatingFinishCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
IP20Black3000K30W5340 LM178LM/WDALI DimmableYes534 LM
IP20Black3500K30W5640 LM188LM/WDALI DimmableYes564 LM
IP20Black4000K30W5940 LM198LM/WDALI DimmableYes594 LM
IP20White3000K30W5340 LM178LM/WDALI DimmableYes534 LM
IP20White3500K30W5640 LM188LM/WDALI DimmableYes564 LM
IP20White4000K30W5940 LM198LM/WDALI DimmableYes594 LM
IP20Black3000K40W7120 LM178LM/WDALI DimmableYes534 LM
IP20Black3500K40W7520 LM188LM/WDALI DimmableYes564 LM
IP20Black4000K40W7920 LM198LM/WDALI DimmableYes594 LM
IP20White3000K40W7120 LM178LM/WDALI DimmableYes534 LM
IP20White3500K40W7520 LM188LM/WDALI DimmableYes564 LM
IP20White4000K40W7920 LM198LM/WDALI DimmableYes594 LM
IP20Black3000K60W10680 LM178LM/WDALI DimmableYes534 LM
IP20Black3500K60W11280 LM188LM/WDALI DimmableAvailable-
IP20Black3500K60W11280 LM188LM/WDALI DimmableYes564 LM
IP20Black4000K60W11880 LM198LM/WDALI DimmableYes594 LM
IP20White3000K60W10680 LM178LM/WDALI DimmableYes534 LM
IP20White3500K60W11280 LM188LM/WDALI DimmableAvailable-
IP20White3500K60W11280 LM188LM/WDALI DimmableYes564 LM
IP20White4000K60W11880 LM198LM/WDALI DimmableYes594 LM
