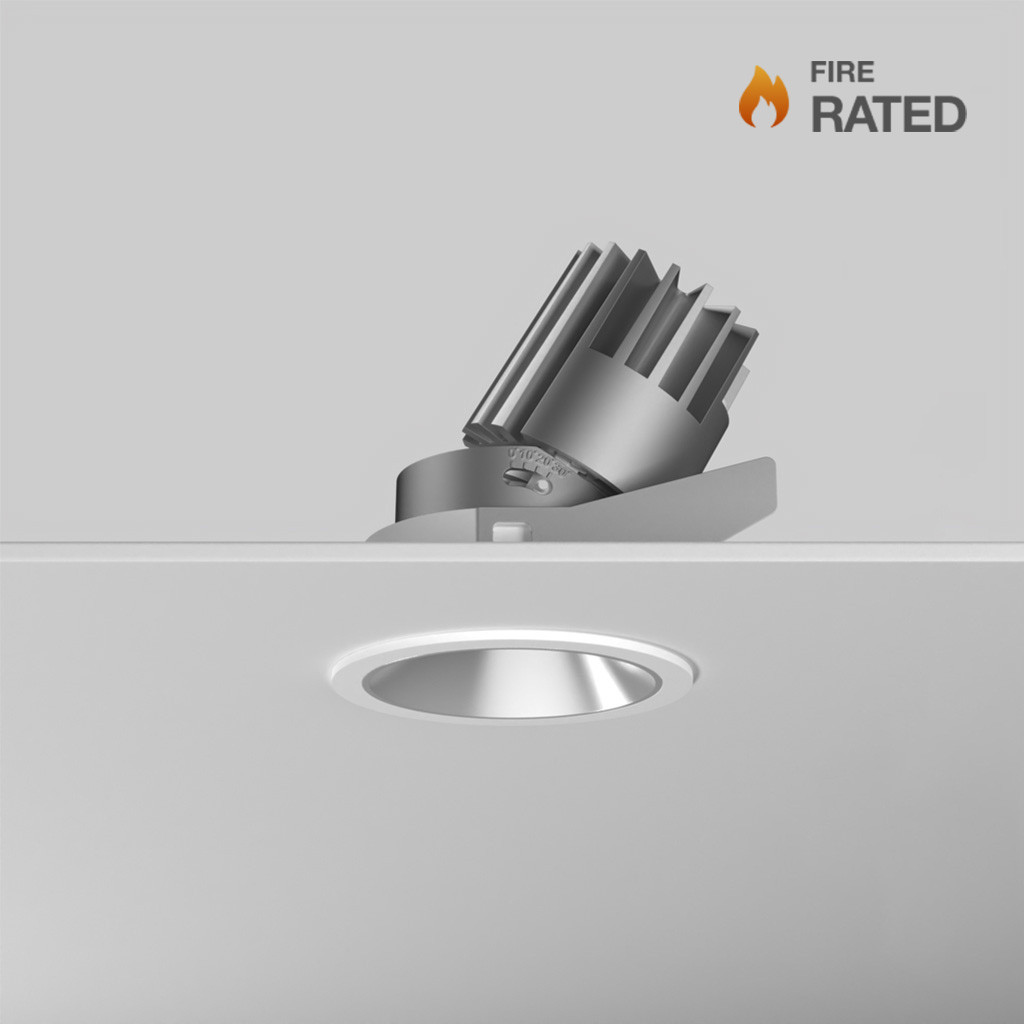

ORION-13W-WH-CH-3000K-EM
Adjustable Solid State Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEORION
COLORWhite/Chrome
Orion Round fixture combines thermal management with a LED chipset to enable superior performance with a passive cooling system. Aluminium construction with secondary reflector for glare reduction. Precision engineered adjustment mechanism, easy to adjust to specific angle. 30° tilt and 355° rotation. CRI>90 for light quality assurance, consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy. For further details on the fire rating, please get in touch with our team by emailing technicalsupport@orlight.com Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage13W
Lumen Output1469LM
Efficacy113LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle20° / 40° / 50°
UGRUGR < 19
ChipsetBRIDGELUX
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current300MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter78 MM
Height96 MM
Cutout68 MM
Weight0.325KG
Tilt30°
Rotation355°
FinishWHITE/CHROME
RALRAL 9016
IP RatingIP20
Fire RatedYES
Fire Rating90 MINS - SOLID JOIST
Fire Test Report424737
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen282LM

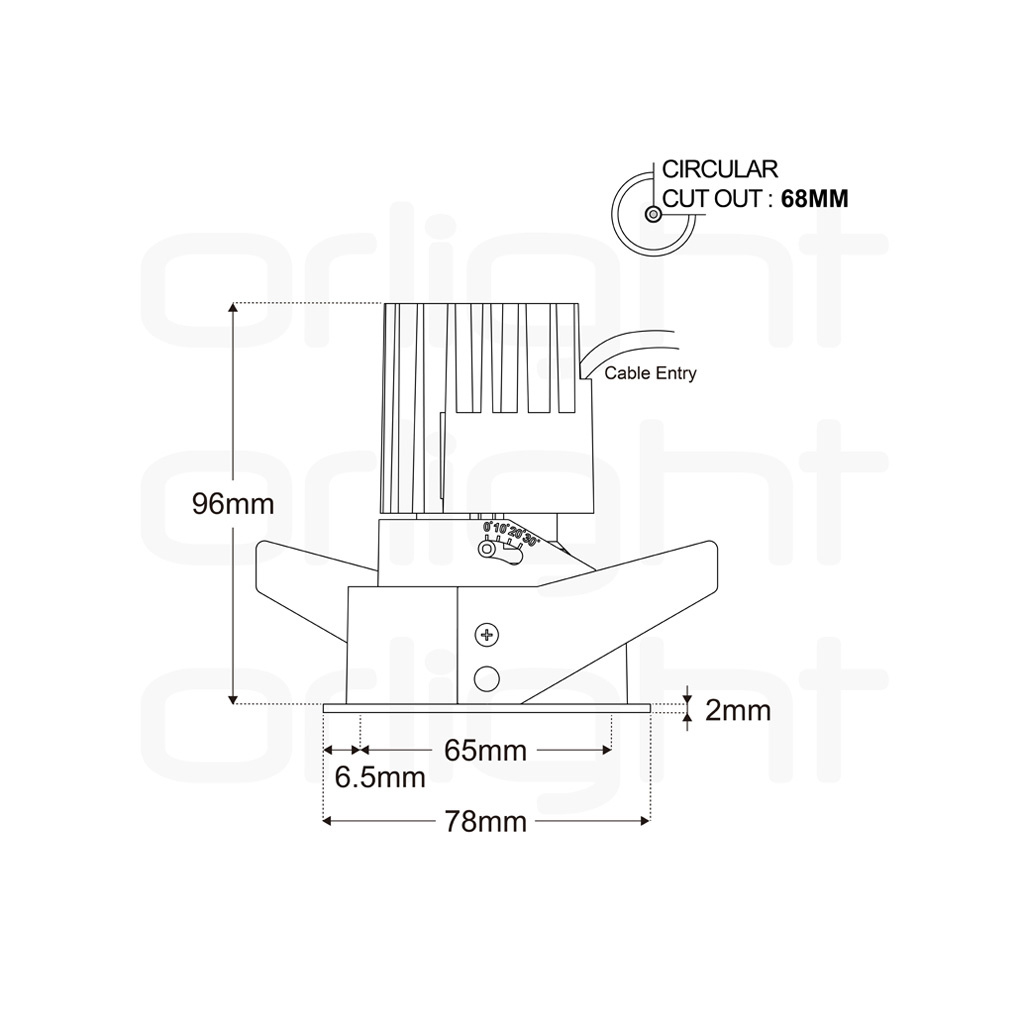

Dimensions
Light Distribution

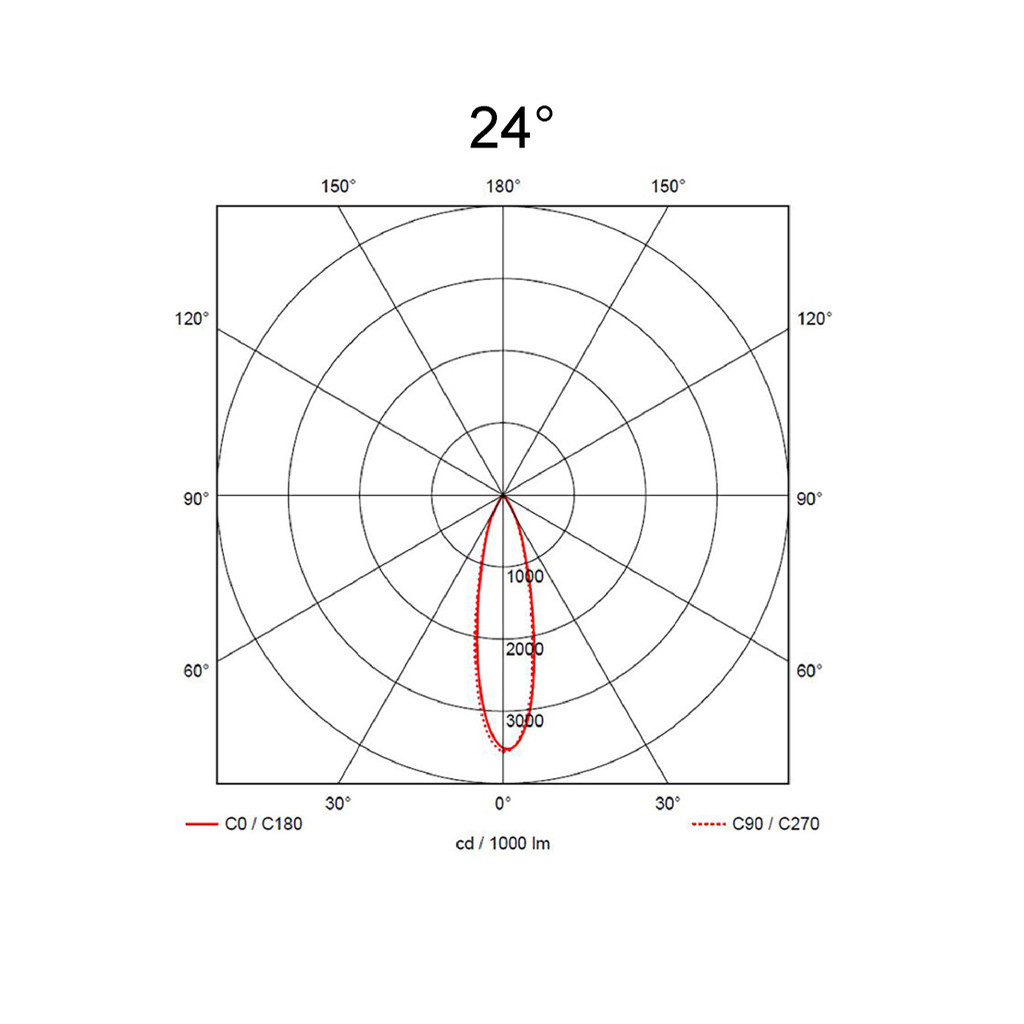

20°

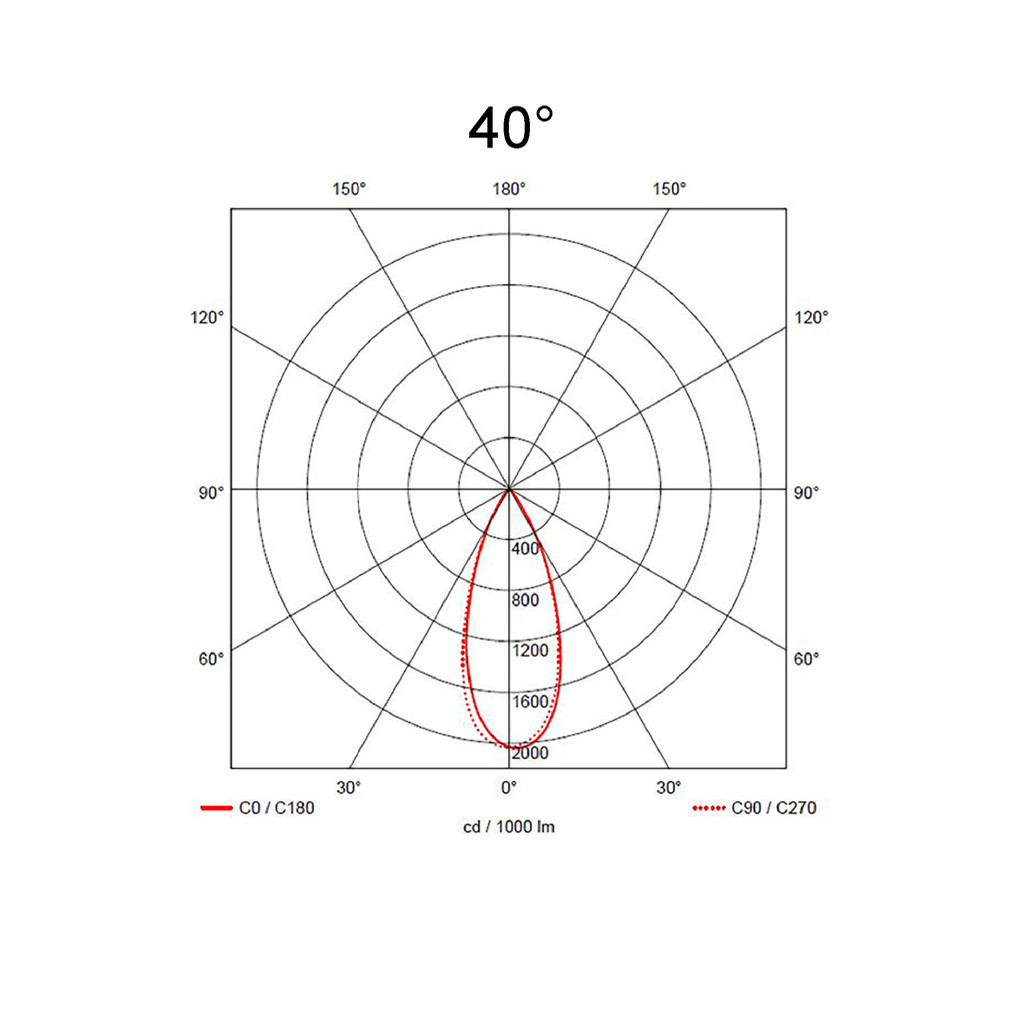

40°

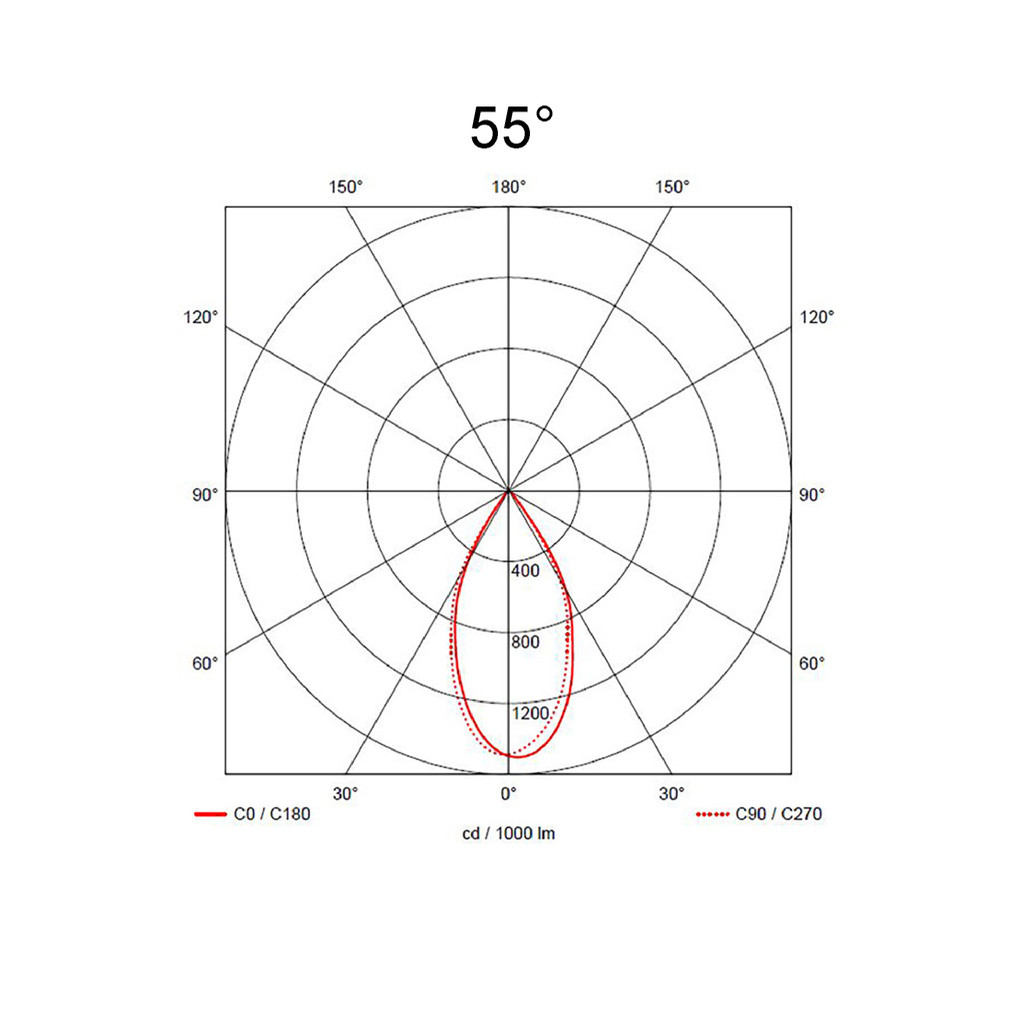

50°
ORION-RF-BL
Orion Reflector
ORION-RF-BL-IP54
Orion Ip54 Reflector
ORION-RF-CH-BL
Orion Reflector
ORION-RF-CH-BL-IP54
Orion Ip54 Reflector
ORION-RF-CH-IP54
Orion Ip54 Reflector
ORION-RF-GOLD
Orion Reflector
ORION-RF-GOLD-IP54
Orion Ip54 Reflector
ORION-RF-MATT
Orion Reflector
ORION-RF-MATT-IP54
Orion Ip54 Reflector
ORION-RF-WH
Orion Reflector
ORION-RF-WH-IP54
Orion Ip54 Reflector
