INTERIOR
MAC SURFACE
Circular Surface Mounted Fixture
The MAC Surface family is a high-performance architectural luminaire range available in 350mm, 450mm, 600mm and 900mm sizes. Constructed from aluminium and finished in black or white, the range combines a clean circular form with UGR<19 performance for improved visual comfort. CRI >80 and a 2-Step MacAdam ellipse binning strategy provide consistent light quality across installations.
Standard and DUO configurations are available, with the DUO option providing both upward and downward light distribution. MAC Surface incorporates an integral driver and can be mounted to walls or ceilings, making it a versatile solution for commercial, workplace, retail and hospitality interiors.
Range Specifications
InstallationSURFACE
Wattage13W – 60W
Lumen Output1560LM / 1690LM – 7200LM / 7800LM
Colour Temperature3000K/4000K
Diameter350 MM – 900 MM
350
Circular Surface Fixture
1560LM | 13W IP20 | 3000K

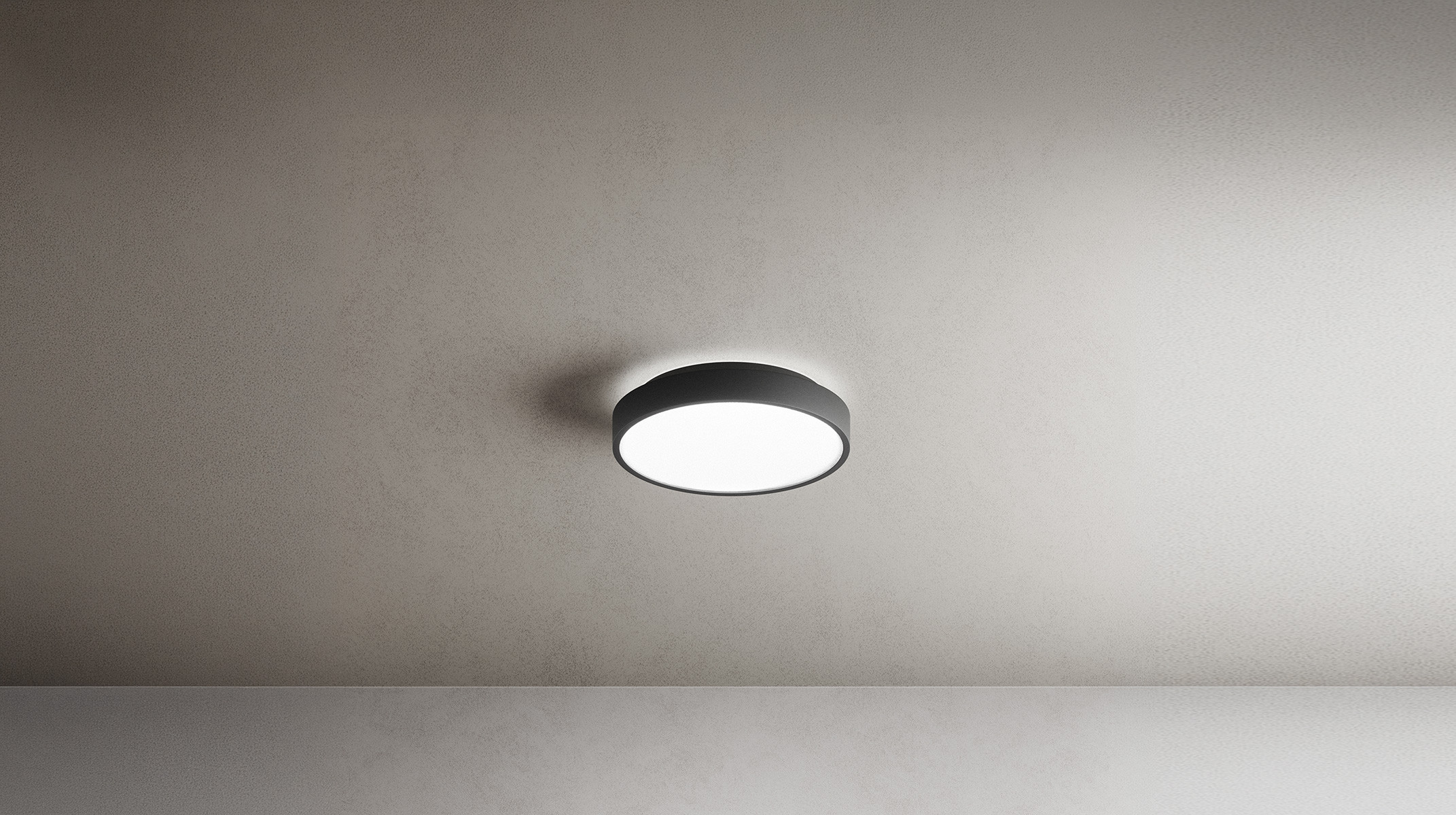

350 DUO
Circular Duo Surface Fixture
2040LM | 17W IP20 | 3000K

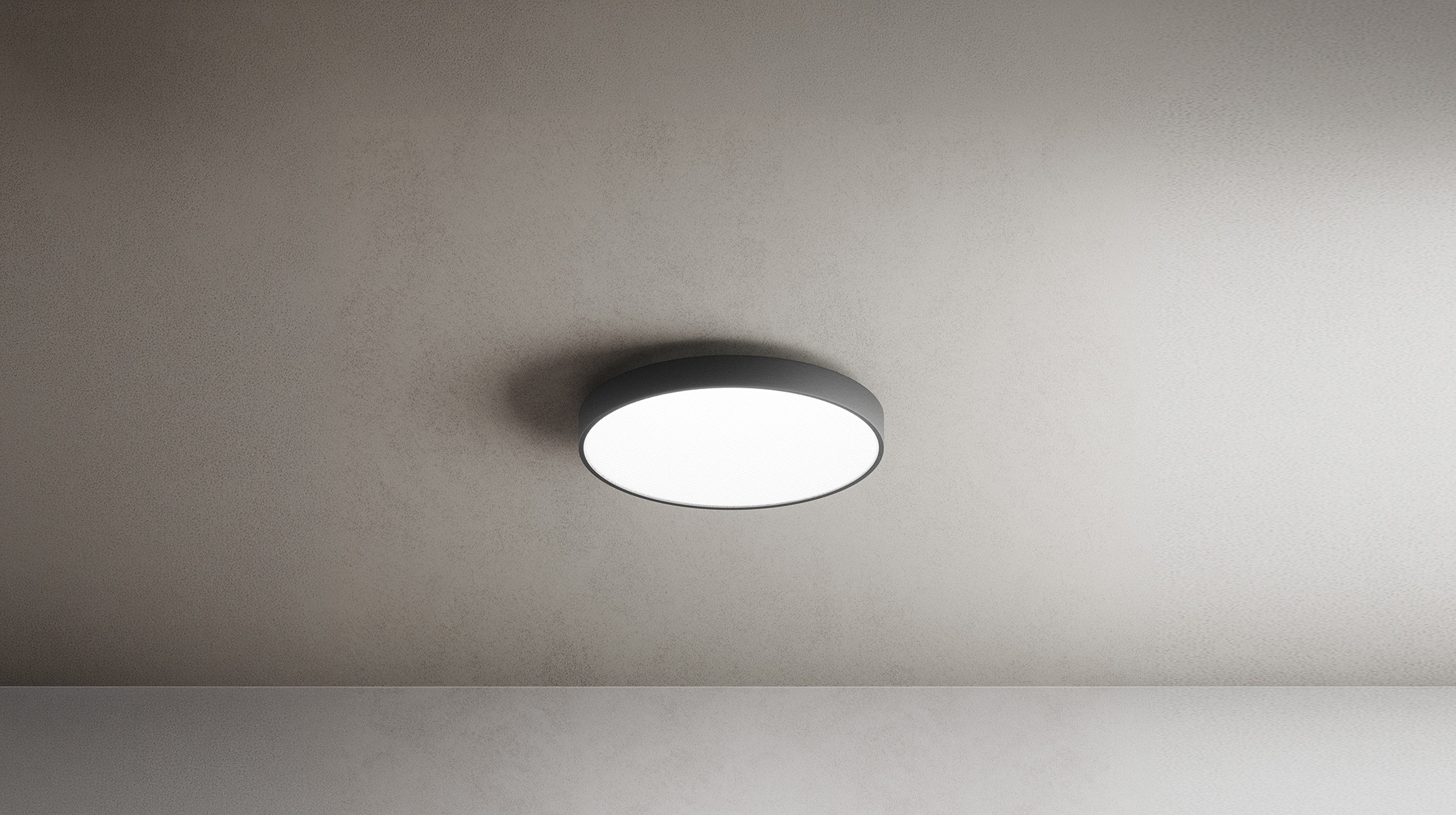

450
Circular Surface Fixture
2280LM | 19W IP20 | 3000K

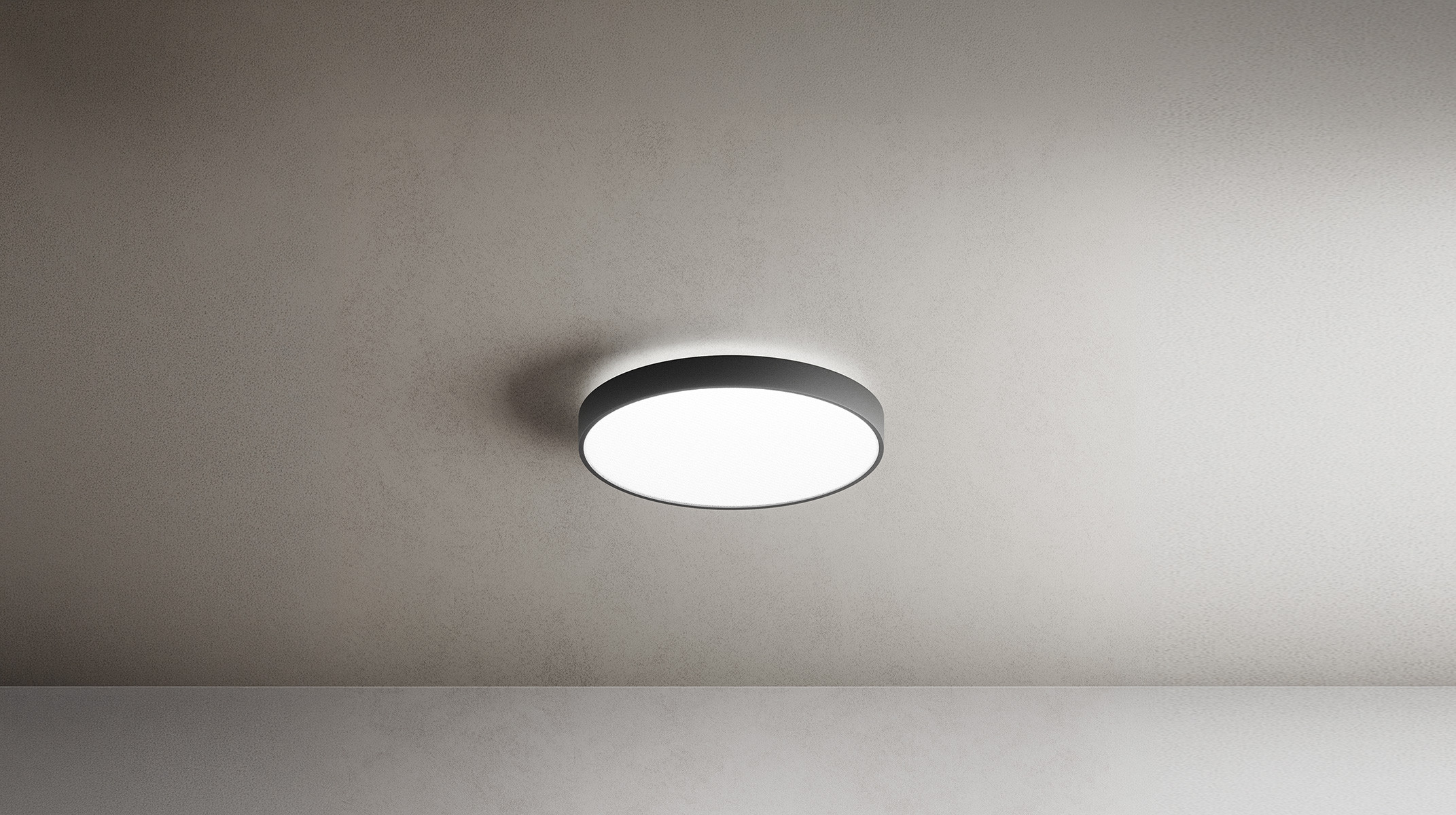

450 DUO
Circular Duo Surface Fixture
3000LM | 25W IP20 | 3000K

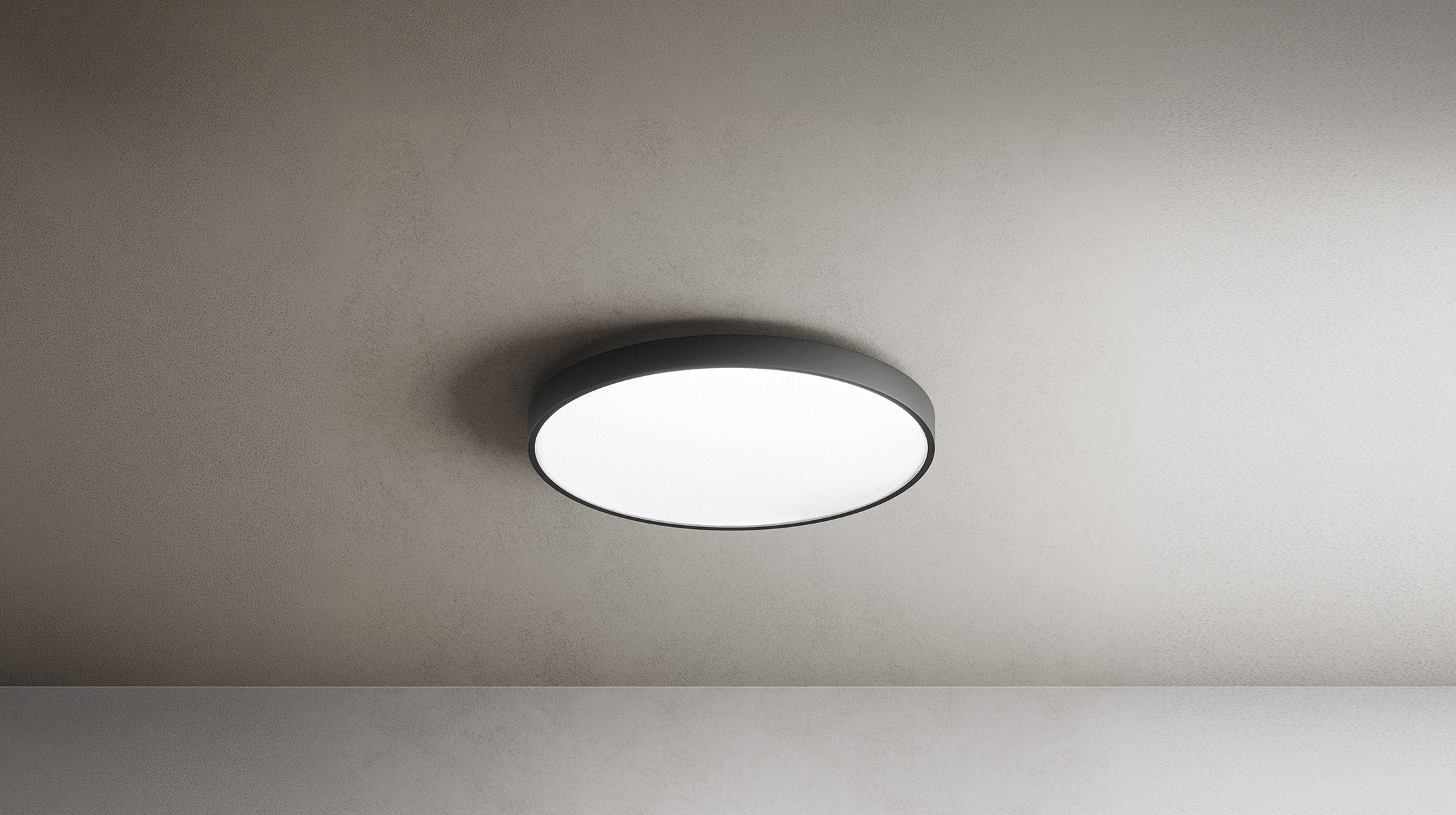

600
Circular Surface Fixture
3600LM | 30W IP20 | 3000K

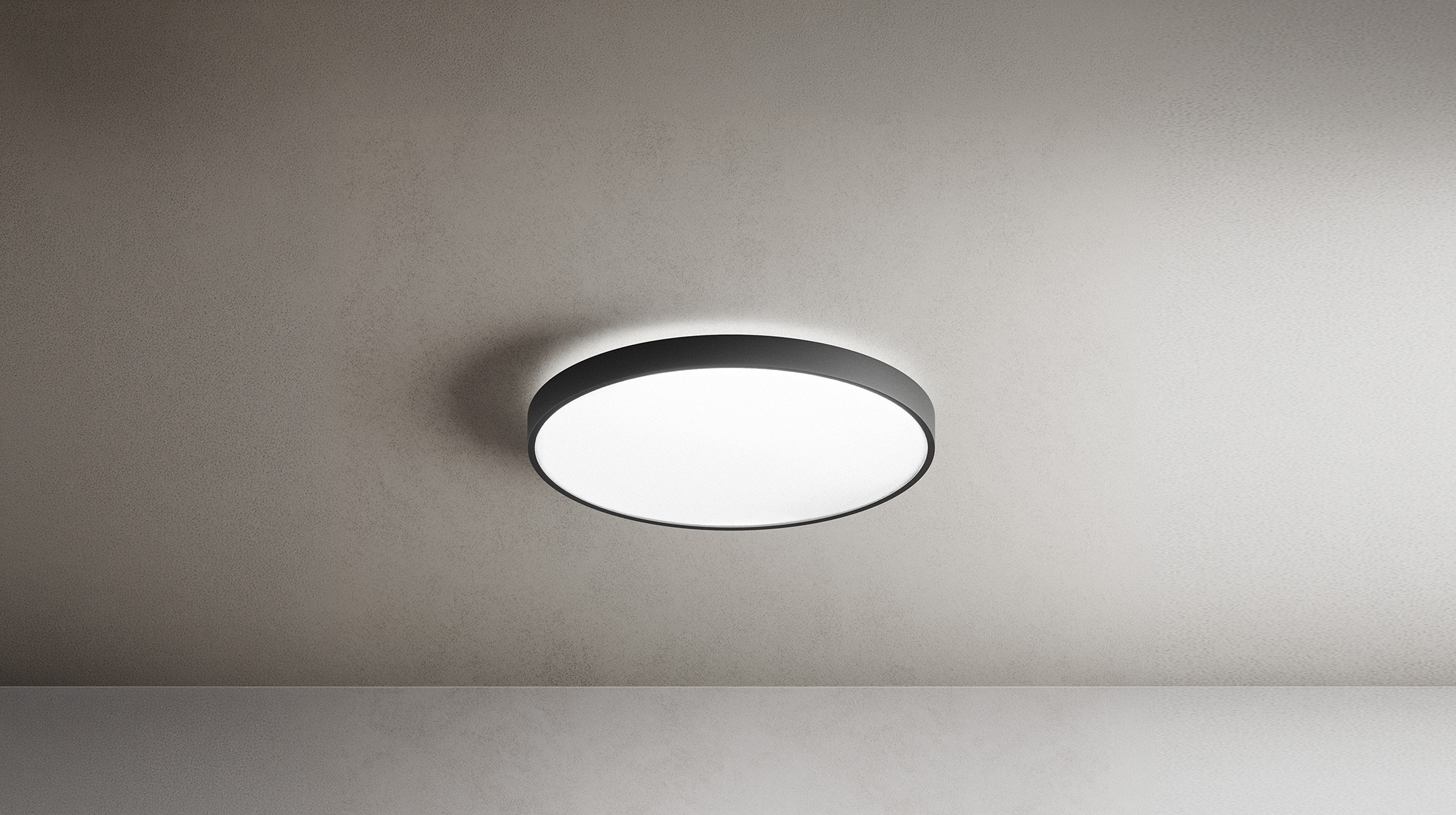

600 DUO
Circular Duo Surface Fixture
4800LM | 40W IP20 | 3000K

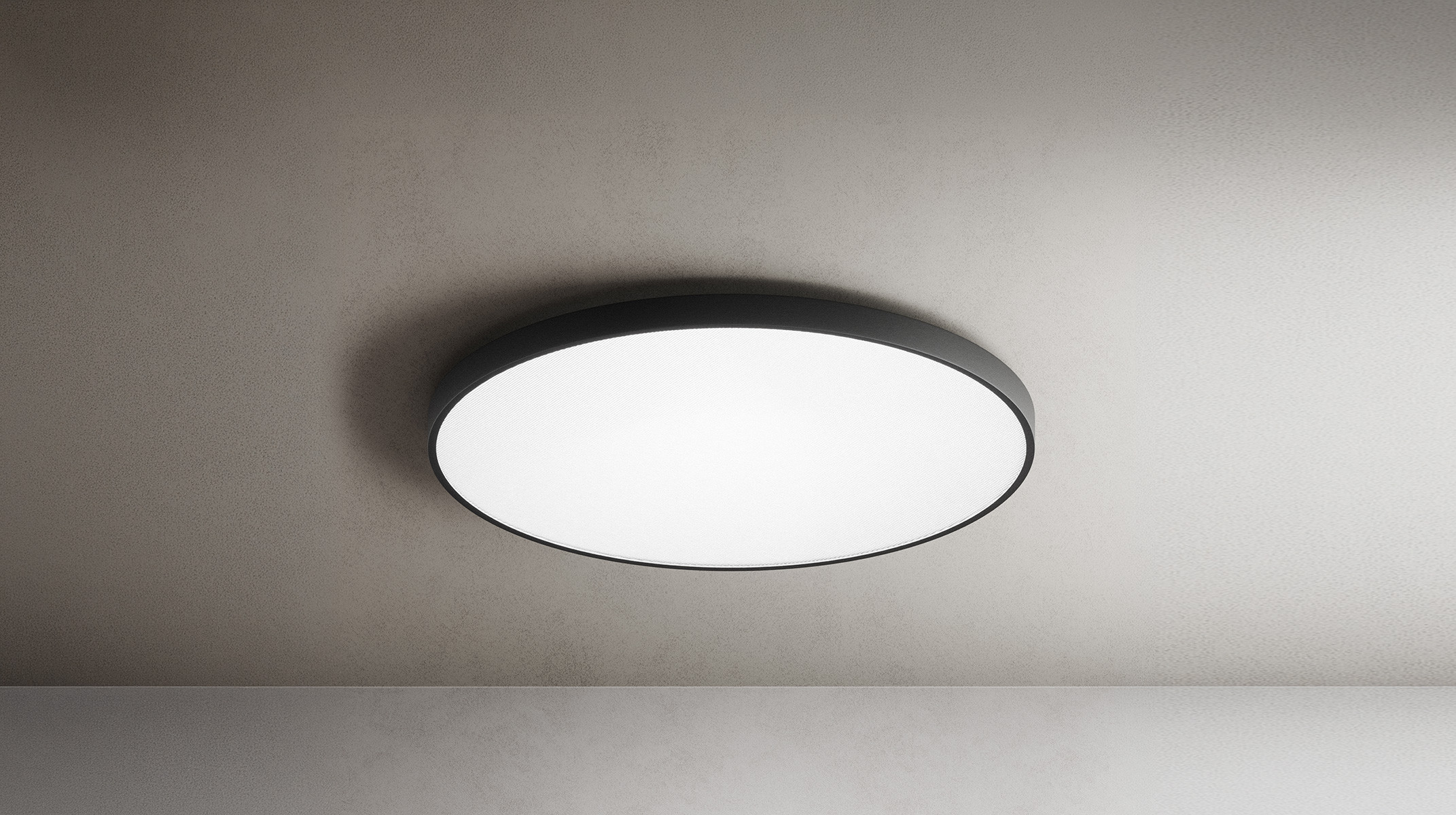

900
Circular Surface Fixture
5400LM | 45W IP20 | 3000K

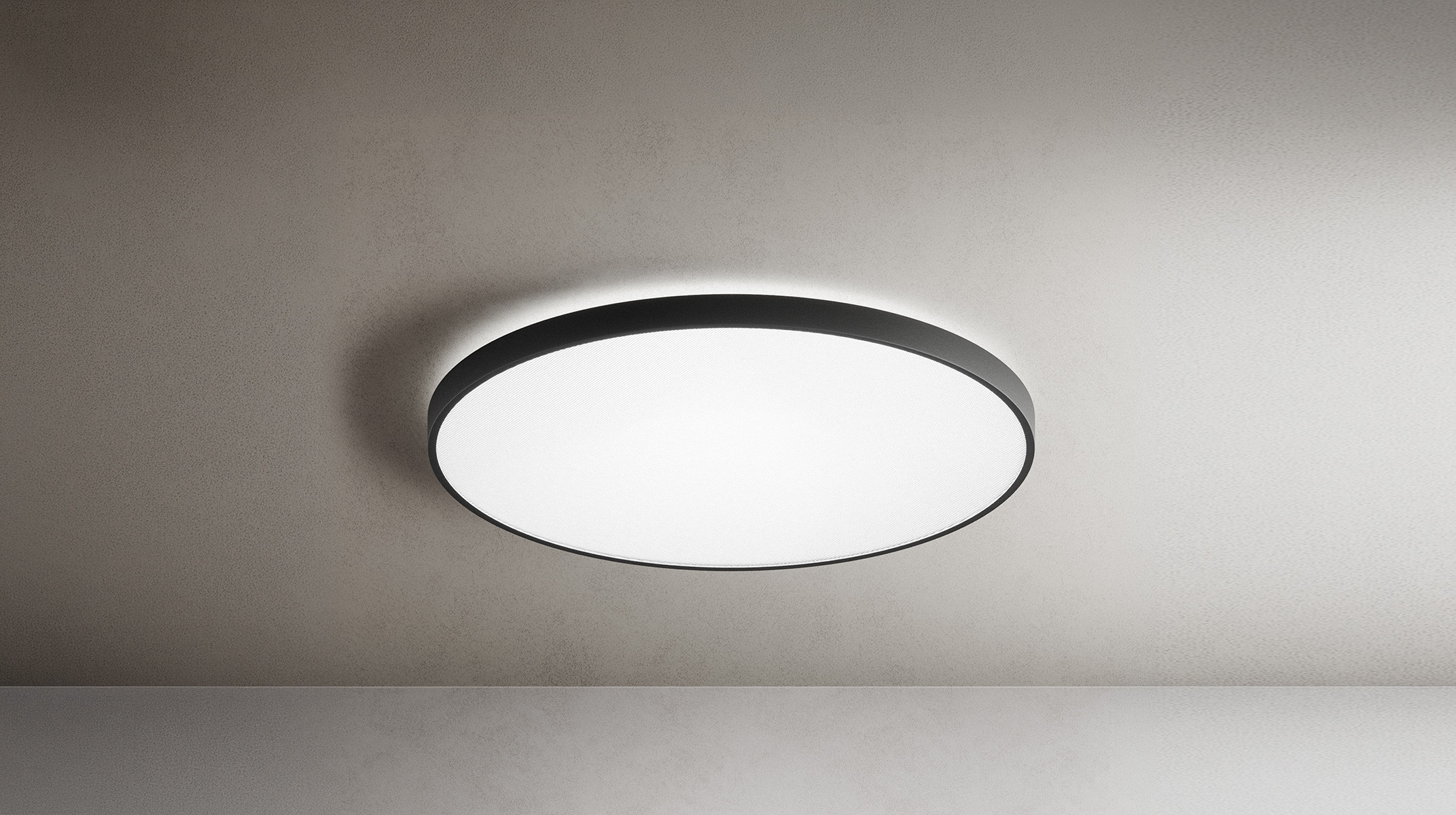

900 DUO
Circular Duo Surface Fixture
7200LM | 60W IP20 | 3000K
Circular Surface Fixture
Product CodeFinishCCTLumen OutputWattageControlEmergencyEfficacyDownloads
Black3000K/4000K1560 LM / 1690 LM13WSwitchedAvailable120LM/W / 130LM/W
Black3000K/4000K1560 LM / 1690 LM13WSwitchedYes120LM/W / 130LM/W
Black3000K/4000K1560 LM / 1690 LM13WDALI DimmableAvailable120LM/W / 130LM/W
Black3000K/4000K1560 LM / 1690 LM13WDALI DimmableYes120LM/W / 130LM/W
White3000K/4000K1560 LM / 1690 LM13WSwitchedAvailable120LM/W / 130LM/W
White3000K/4000K1560 LM / 1690 LM13WSwitchedYes120LM/W / 130LM/W
White3000K/4000K1560 LM / 1690 LM13WDALI DimmableAvailable120LM/W / 130LM/W
White3000K/4000K1560 LM / 1690 LM13WDALI DimmableYes120LM/W / 130LM/W
