INTERIOR
EZENTIAL SURFACE
Solid State Surface Mounted Fixture

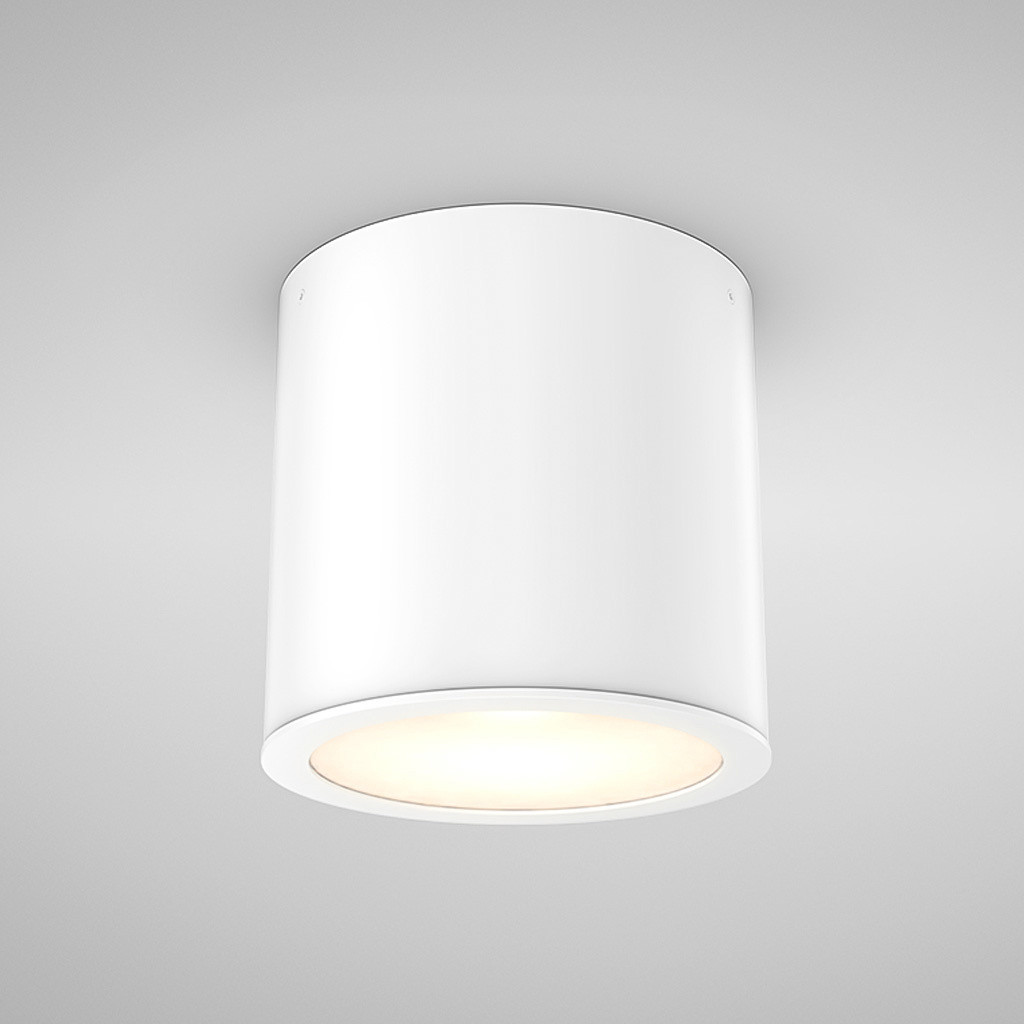

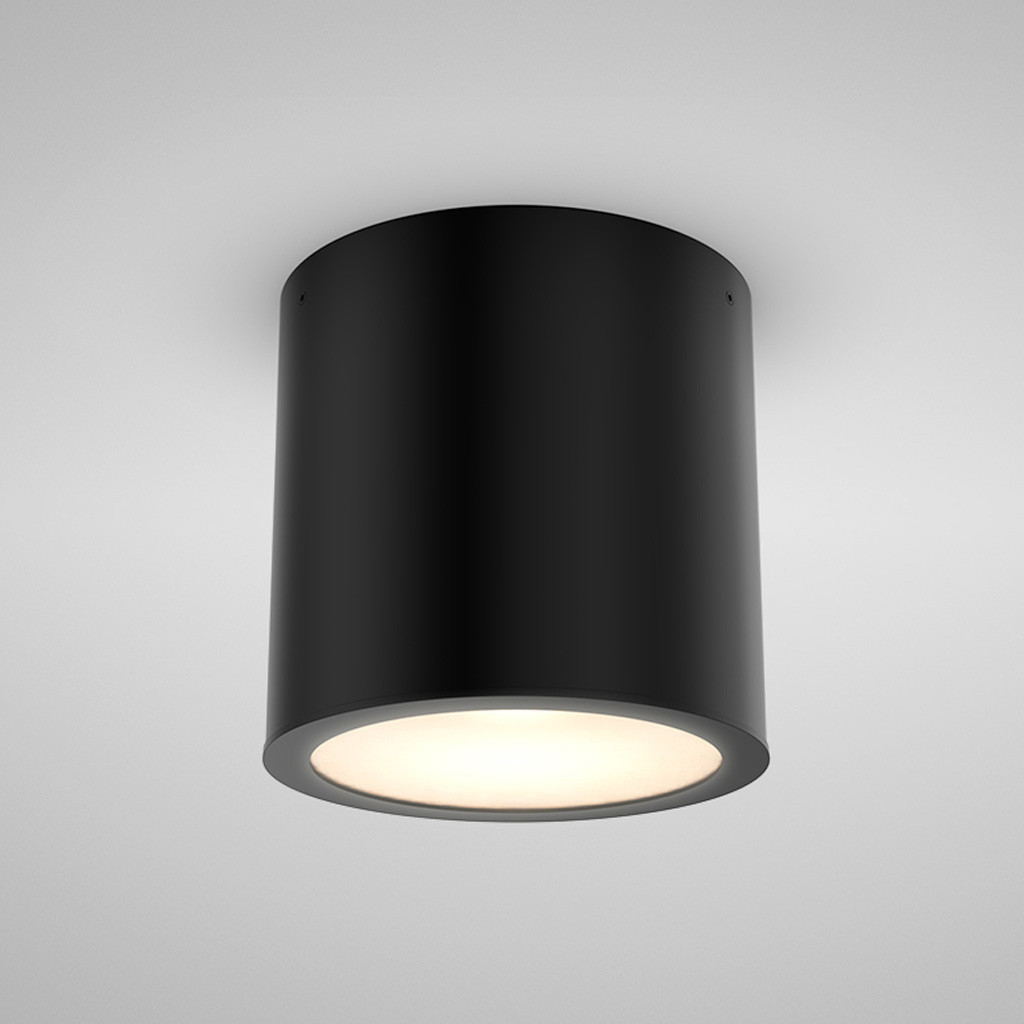

The EZENTIAL Surface family is a high-performance surface-mounted downlight range combining advanced thermal management with a 2835 SMD Samsung chipset for reliable, efficient illumination. Available in 181mm and 231mm formats, the range features aluminium construction rated to IP54 and an opal diffuser to reduce glare and provide uniform light output. CRI >80 ensures consistent light quality across applications.
EZENTIAL Surface is compatible with 1–10V and DALI dimmable power supplies, making it a versatile solution for commercial, workplace and public interiors where dependable performance, visual comfort and clean architectural detailing are required.
Range Specifications
InstallationSURFACE
Wattage14W – 32W
Lumen Output2040LM – 4704LM
Colour Temperature3000K – 4000K
Diameter191 MM – 230 MM

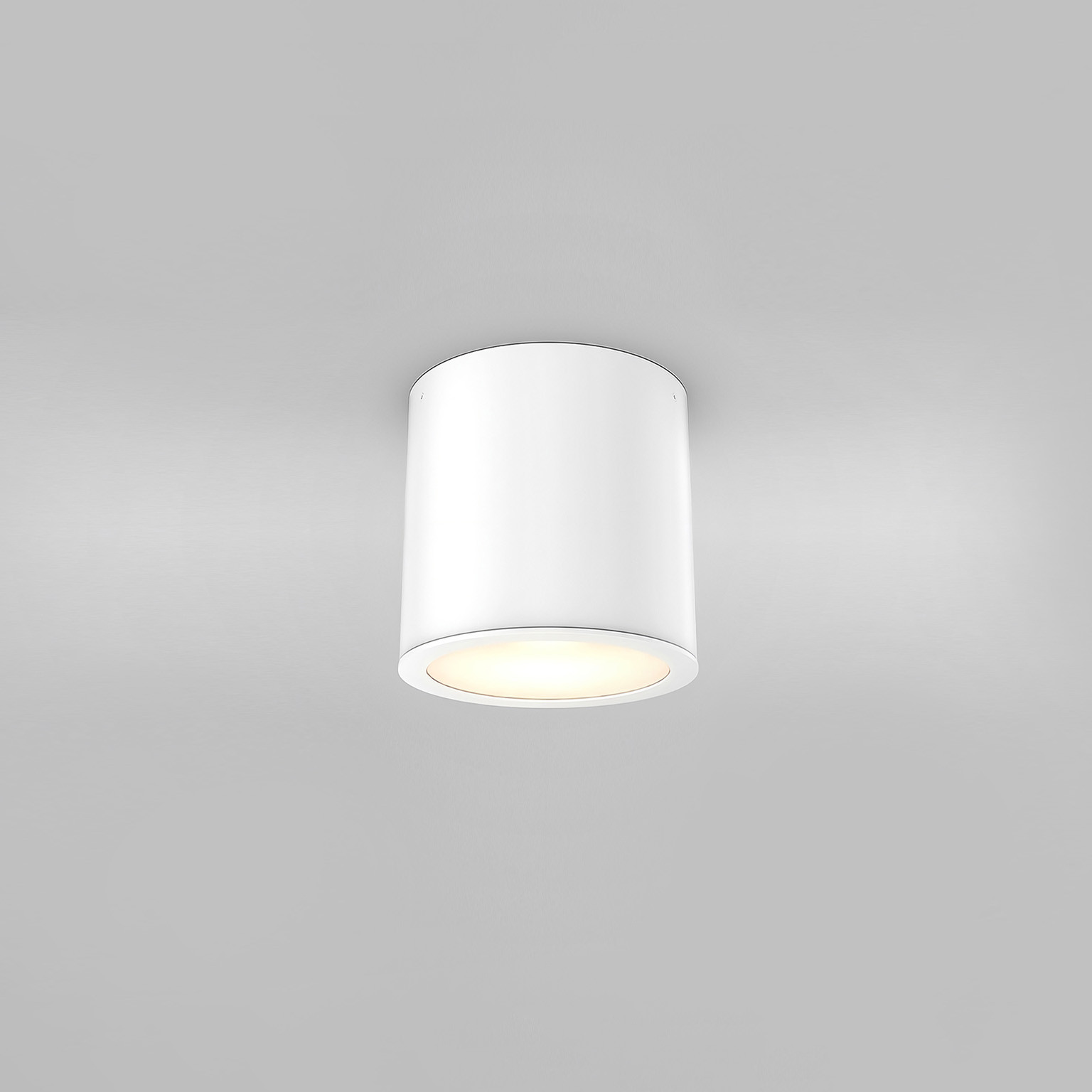

EZ-2SF 181
Solid State Surface Mounted Fixture
2040LM - 3370LM | 14W - 24W IP54 | 3000K - 4000K

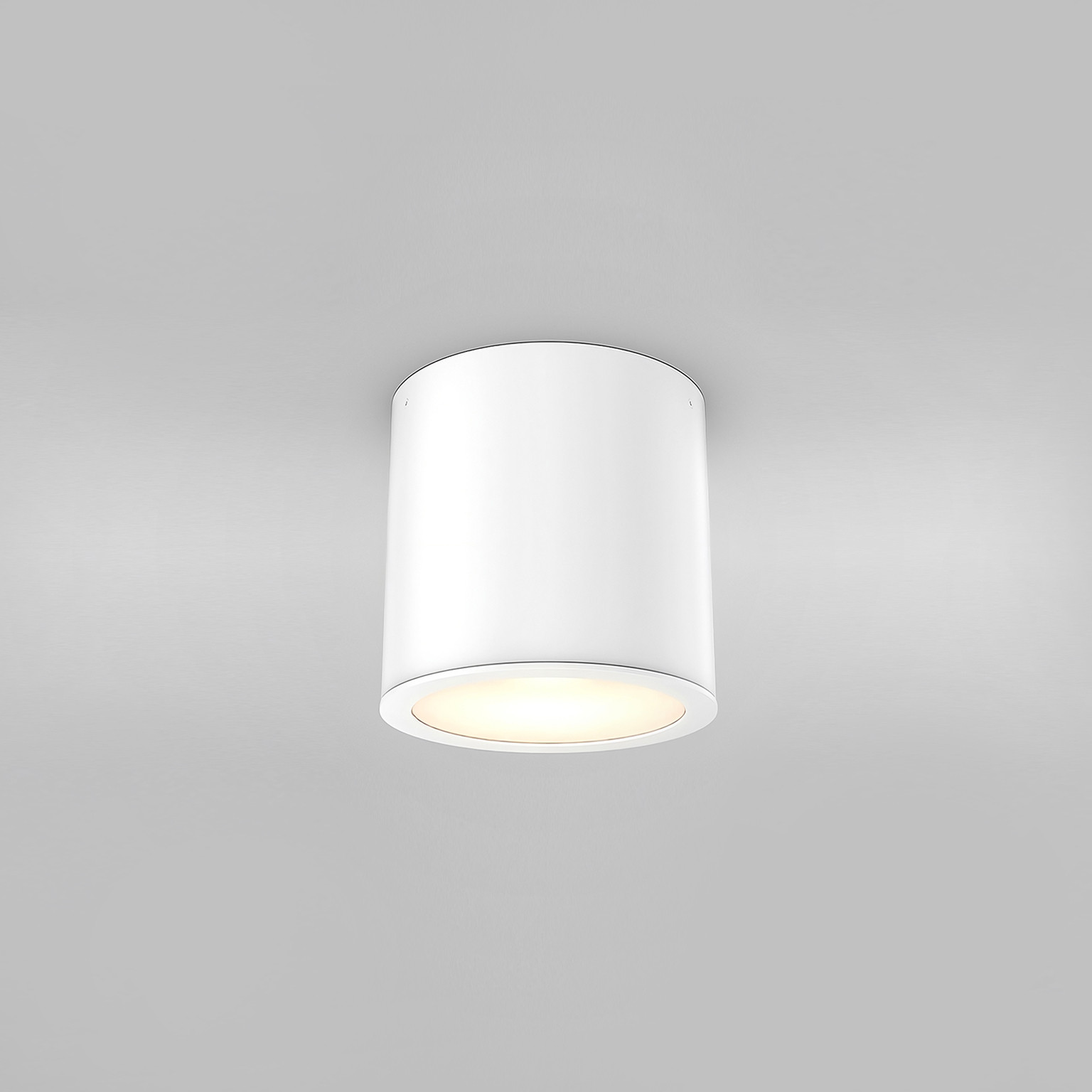

EZ-2SF 231
Solid State Surface Mounted Fixture
3366LM - 4704LM | 22W - 32W IP54 | 3000K - 4000K
Solid State Surface Mounted Fixture
Product CodeFinishCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
White3000K14W2040 LM146LM/WDALI DimmableYes428 LM
Black3000K14W2040 LM146LM/WDALI DimmableYes428 LM
White4000K14W2050 LM146LM/WDALI DimmableYes431 LM
Black4000K14W2050 LM146LM/WDALI DimmableYes431 LM
White3000K16W2304 LM144LM/WDALI DimmableYes462 LM
Black3000K16W2304 LM144LM/WDALI DimmableYes462 LM
White4000K16W2336 LM146LM/WDALI DimmableYes466 LM
Black4000K16W2336 LM146LM/WDALI DimmableYes466 LM
White3000K18W2574 LM143LM/WDALI DimmableYes387 LM
Black3000K18W2574 LM143LM/WDALI DimmableYes387 LM
White4000K18W2610 LM145LM/WDALI DimmableYes391 LM
Black4000K18W2610 LM145LM/WDALI DimmableYes391 LM
White3000K20W2840 LM142LM/WDALI DimmableYes427 LM
Black3000K20W2840 LM142LM/WDALI DimmableYes427 LM
White4000K20W2800 LM140LM/WDALI DimmableYes419 LM
Black4000K20W2800 LM140LM/WDALI DimmableYes419 LM
White3000K22W3102 LM141LM/WDALI DimmableYes466 LM
Black3000K22W3102 LM141LM/WDALI DimmableYes466 LM
White4000K22W3036 LM138LM/WDALI DimmableYes456 LM
Black4000K22W3036 LM138LM/WDALI DimmableYes456 LM
White3000K24W3355 LM140LM/WDALI DimmableYes403 LM
Black3000K24W3355 LM140LM/WDALI DimmableYes403 LM
White4000K24W3370 LM140LM/WDALI DimmableYes404 LM
Black4000K24W3370 LM140LM/WDALI DimmableYes404 LM
