EZ2SF-181-24W-BL-3K-DALI
Solid State Surface Mounted Fixture
Downlights
CATEGORYInterior
PRODUCT RANGEEZENTIAL SURFACE
COLORBlack
Ezential-2-SF-181 Solid State fixture combines advance thermal management with a 2835 SMD Samsung chipset to enable superior performance. Aluminium construction to IP54 with opal diffuser for glare reduction. A single chipset ensures uniformity of the light beam with a CRI>80 light quality assurance. Available in combination with 1-10V and DALI dimmable Power Supplies.
Optical Performance
Wattage24W
Lumen Output3355LM
Efficacy140LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle115°
ChipsetSAMSUNG 2835 SMD
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage32 - 38V
Milliamp / Current600MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter191 MM
Height200 MM
FinishBLACK
RALRAL 9005
IP RatingIP54
TP(a)/TP(b)TP(A)
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

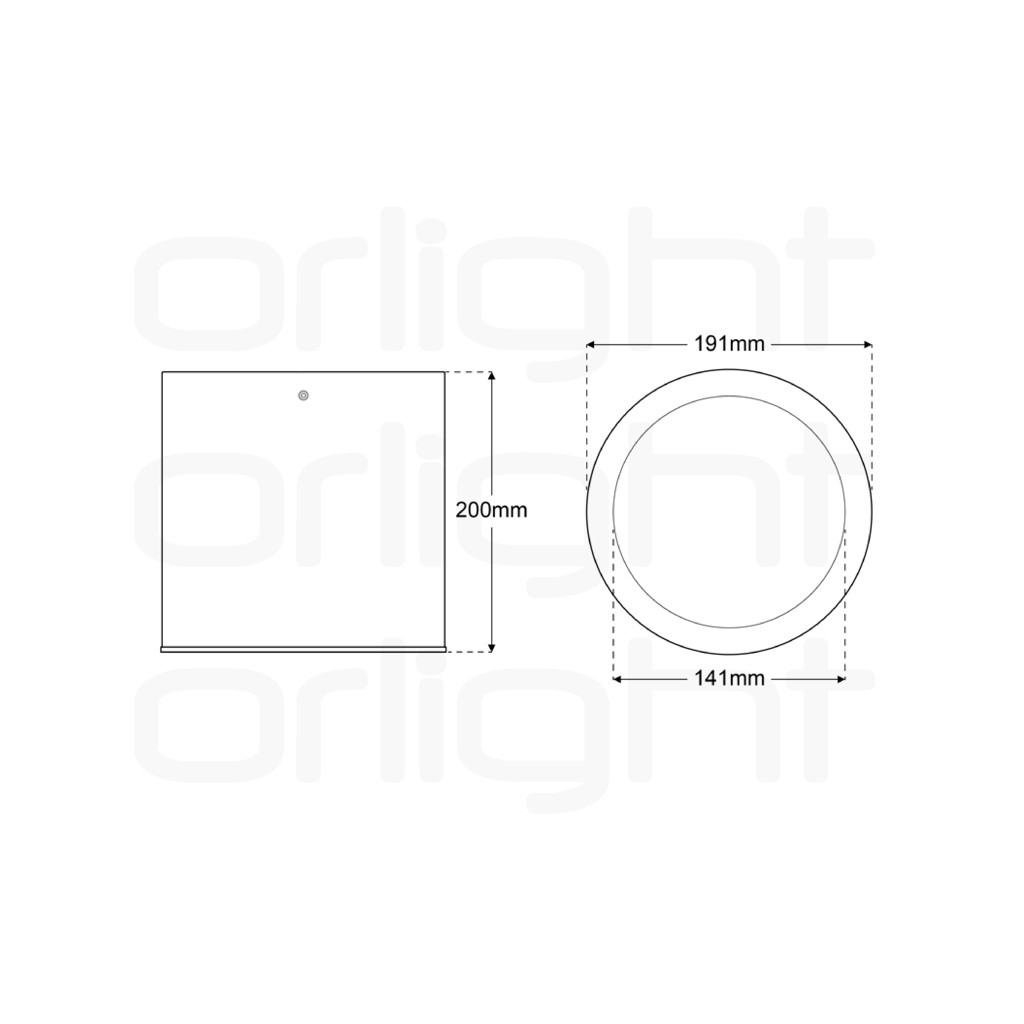

Dimensions

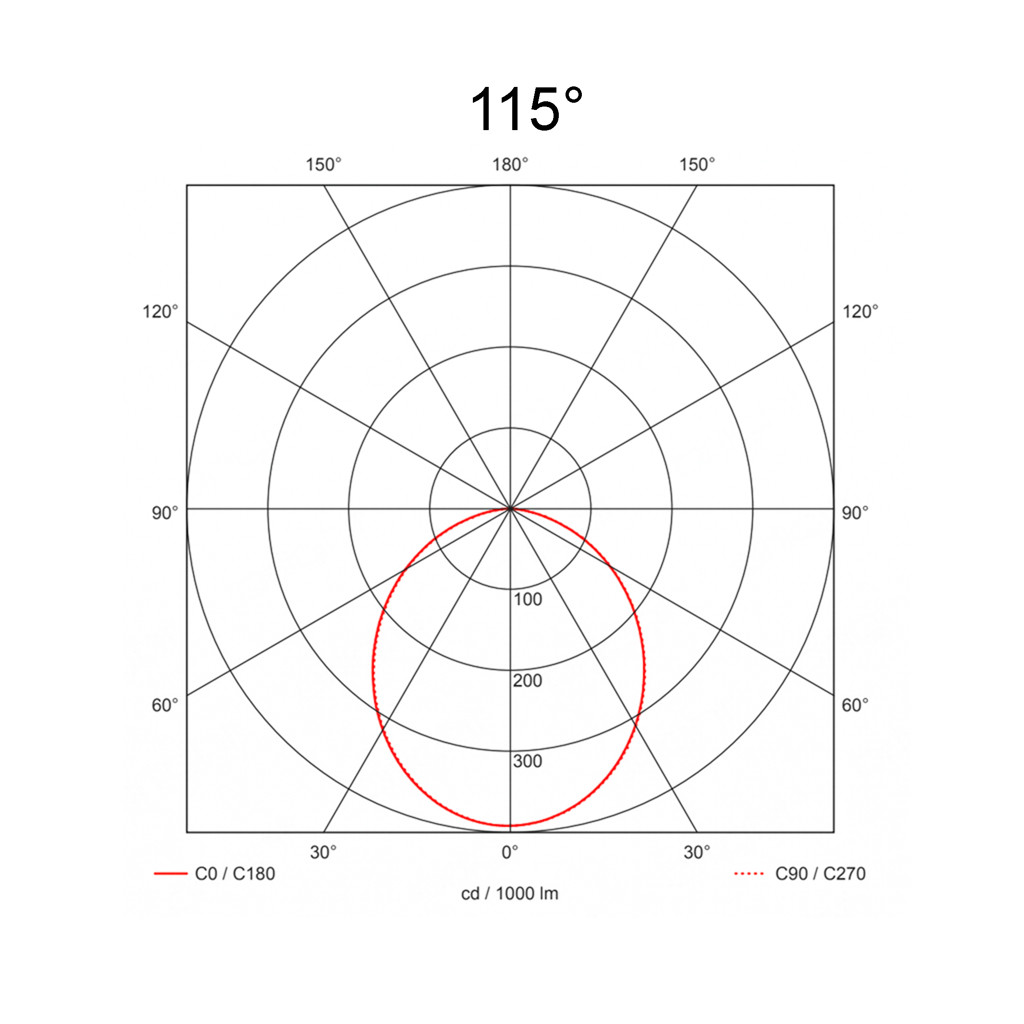

Light Distribution
115°
