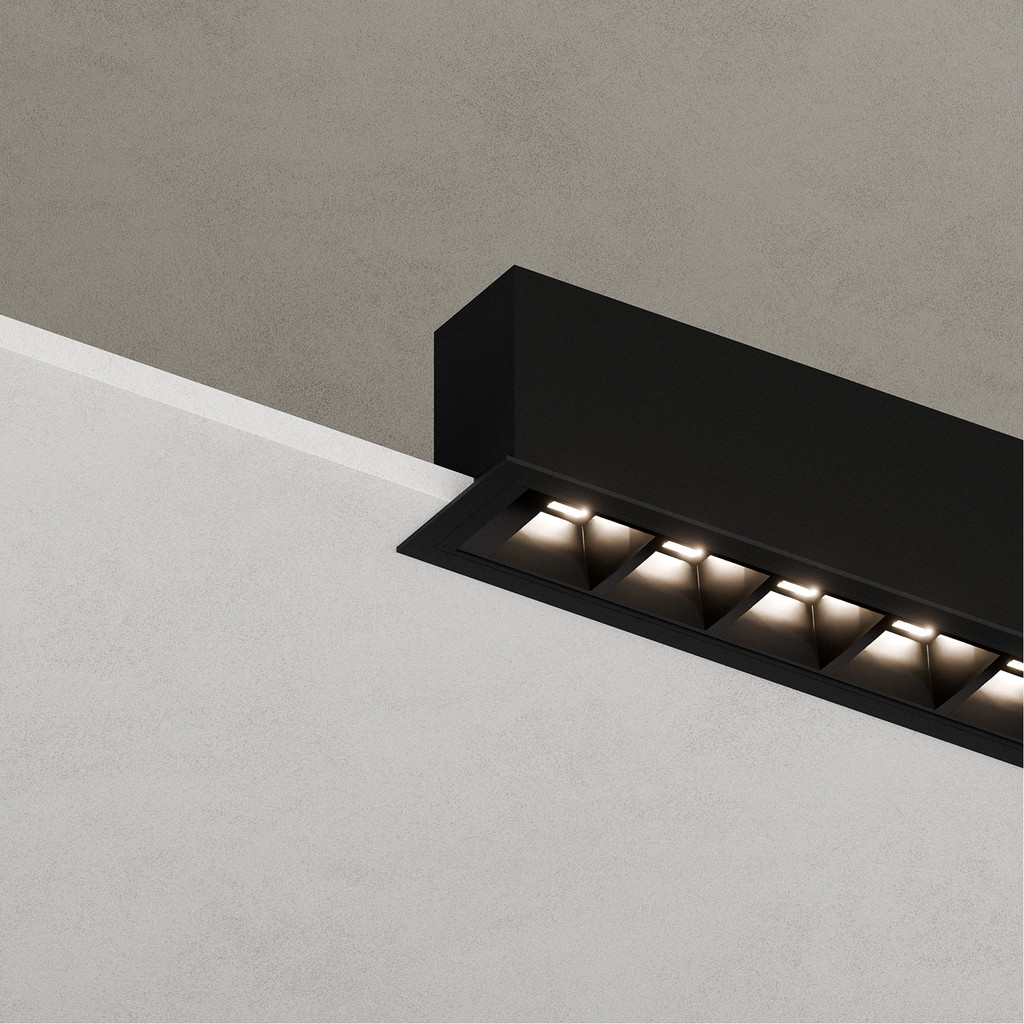

VECTIV-RC-37W-BL-4K-1139-DALI-B-EM
Linear POD Fixture
Linear System
CATEGORYLinear Systems
PRODUCT RANGEVECTIV
COLORBlack
Elevate your professional space with our advanced aluminium linear fixture. The recessed version, featuring a cutting-edge pod louvre design, seamlessly integrates into your environment. With a remote driver for added convenience, this fixture delivers sleek and efficient lighting, setting a new standard for modern, sophisticated illumination in professional settings. Configurations in excess of a standard single length, please refer to the length matrix here which provides options for lengths up to 15M.
Optical Performance
Wattage37W
Lumen Output4440LM
Efficacy120LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle80°
UGR<19
ChipsetOSRAM 2835
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220V
Milliamp / Current800MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length1139 MM
Width / Depth60 MM
Height70 MM
Cutout1125 MM X 45 MM
FinishBLACK
RALRAL 9005
IP RatingIP20
IK RatingIK08
Operating Ambient Temperature-20˚C - +60˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen332LM

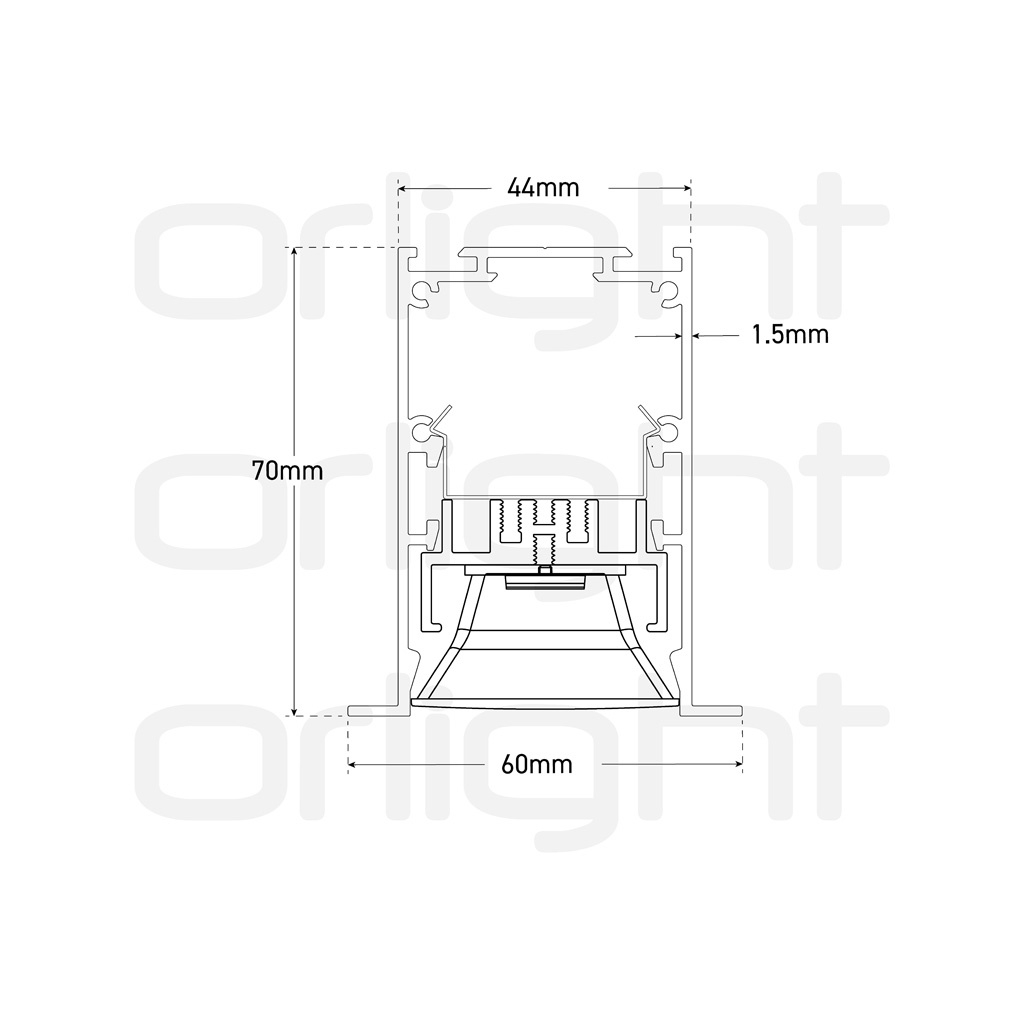

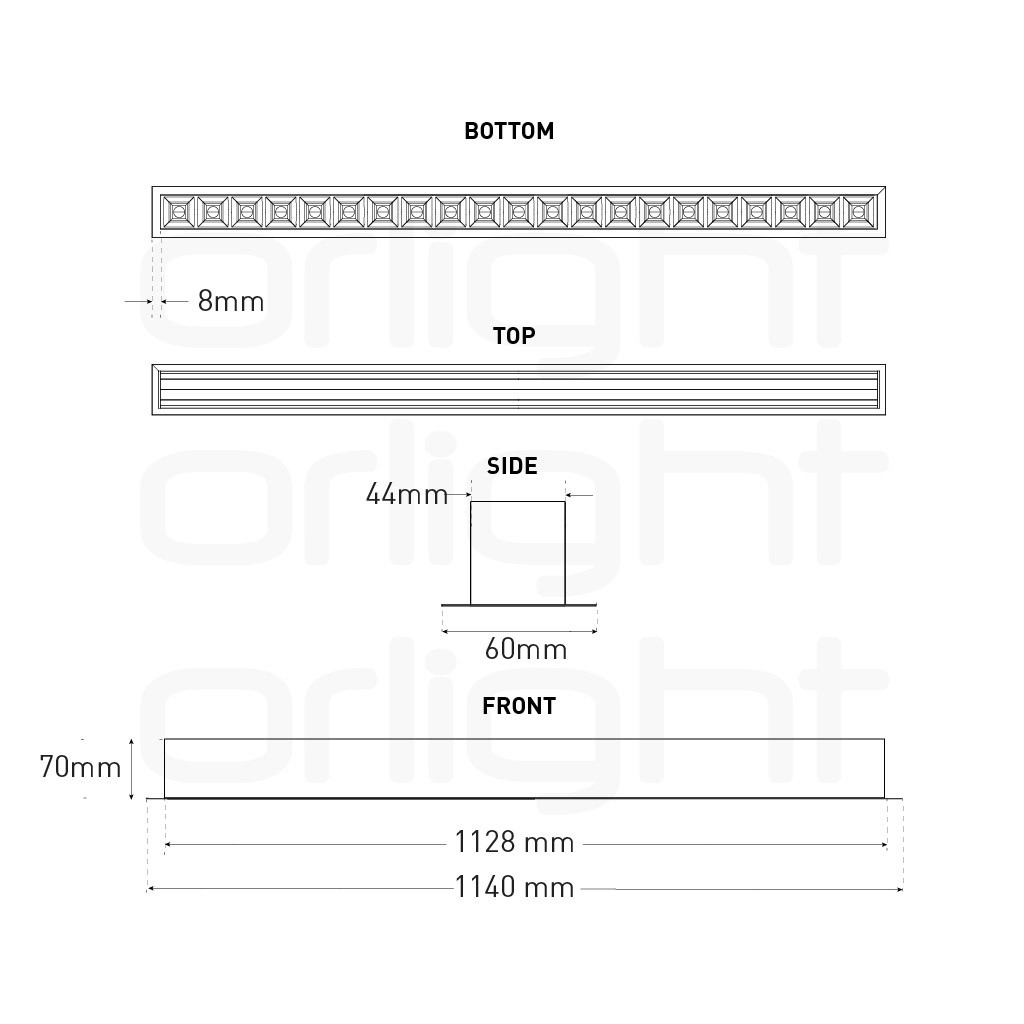

Dimensions

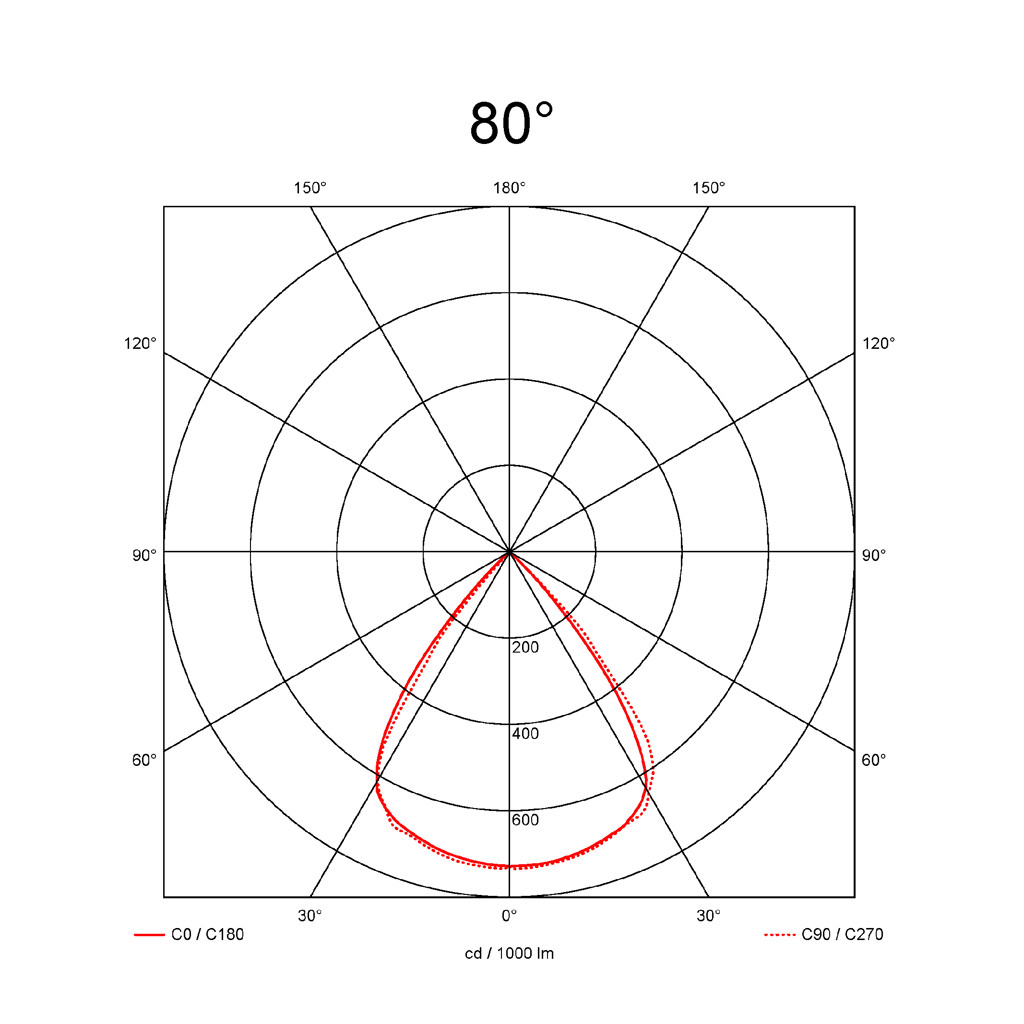

Light Distribution
80°
