CUBIC1515H-9016-UD-4K-DALI
Suspended Linear Light
Suspended
CATEGORYInterior
PRODUCT RANGECUBIC
COLORWhite
The CUBIC is a suspended linear light constructed from Aluminium and rated to IP20. Colour consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy alongside an LED chipset at CRI>80 ensuring light quality. The fitting also features an integral Samsung driver. The suspension cables can be adjusted to a minimum of 350mm and maximum 1800mm in length. Available as Switched, 1-10V and DALI dimming options in 4000K colour temperature.
Optical Performance
Wattage45W
Lumen Output5130LM
Efficacy114LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle92°
UGRUGR < 19
ChipsetSAMSUNG LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220V
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Length1500 MM
Width / Depth150 MM
Height52 MM
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

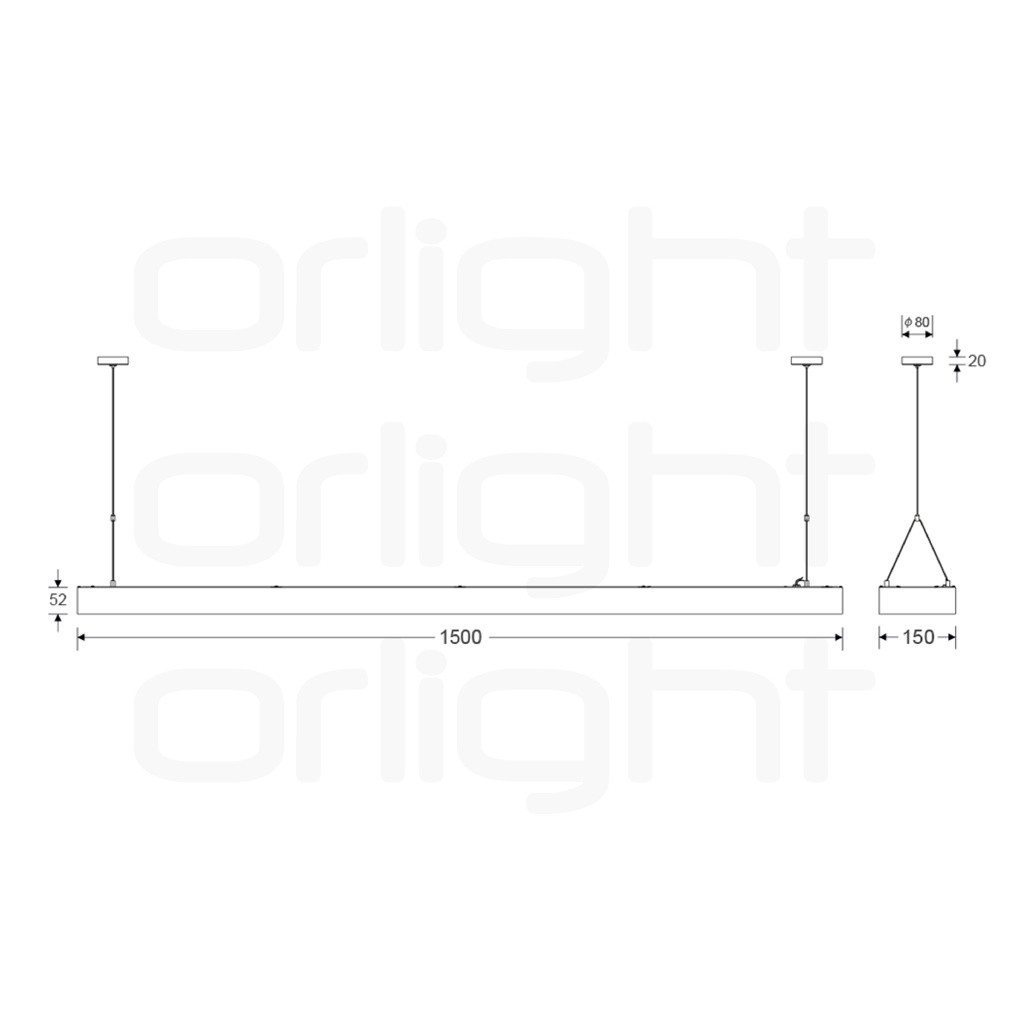

Dimensions

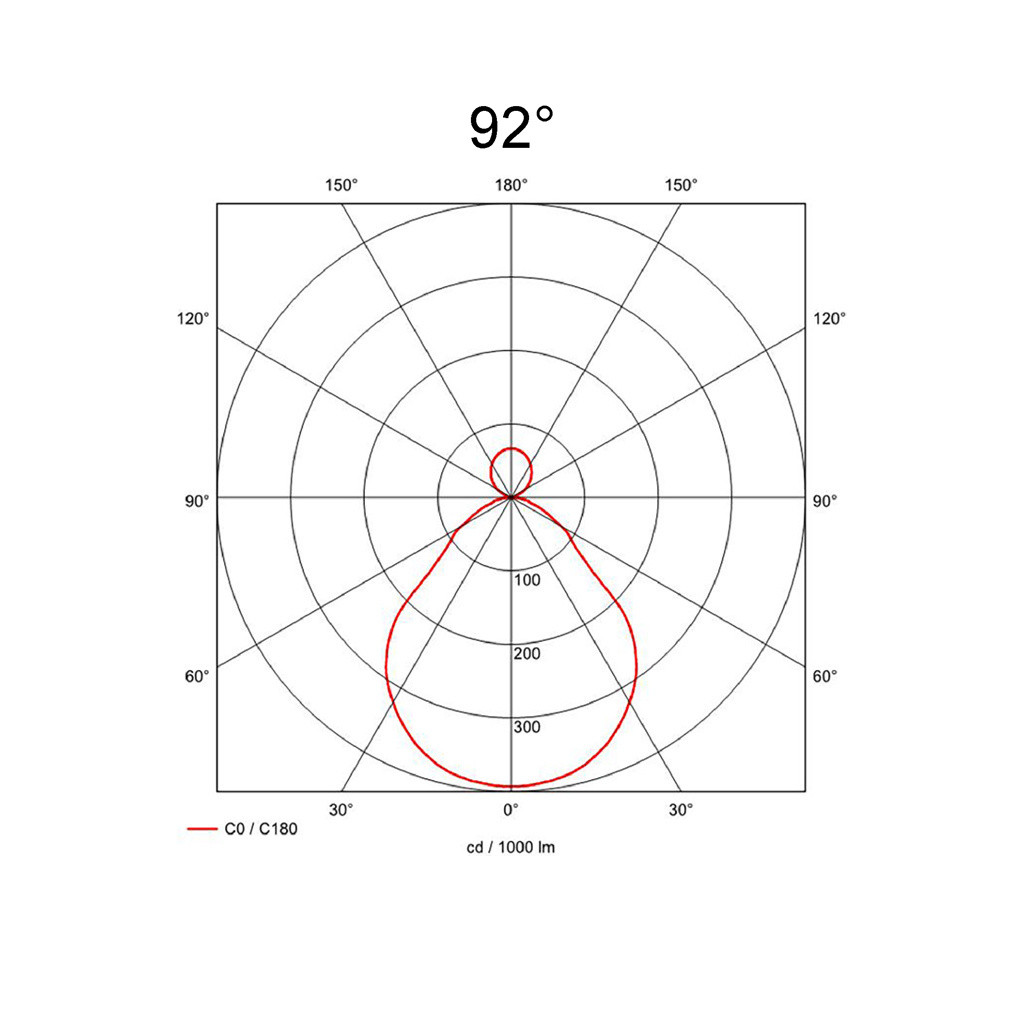

Light Distribution
92°
