INTERIOR
ULTRA LINEAR
Linear Fixture
The ULTRA Linear is a range designed for comfortable, flexible illumination in commercial interiors. UGR<19 optics help reduce glare and improve visual comfort, while switchable colour temperatures from 3000K to 4000K allow the light appearance to be adjusted to suit different environments. Easy-opening end caps simplify installation and ongoing maintenance. ULTRA can be surface mounted as standard or suspended using optional suspension kit accessories.
Available in ULTRA-4 and ULTRA-5 variants, the range combines controlled light distribution, adaptable colour temperature and straightforward servicing for workplace, education and general commercial applications.
Range Specifications
InstallationSURFACE
Wattage18W – 40W
Lumen Output2250LM / 2358LM – 4840LM / 5080LM
Colour Temperature3000K/4000K
Length1200 MM – 1500 MM

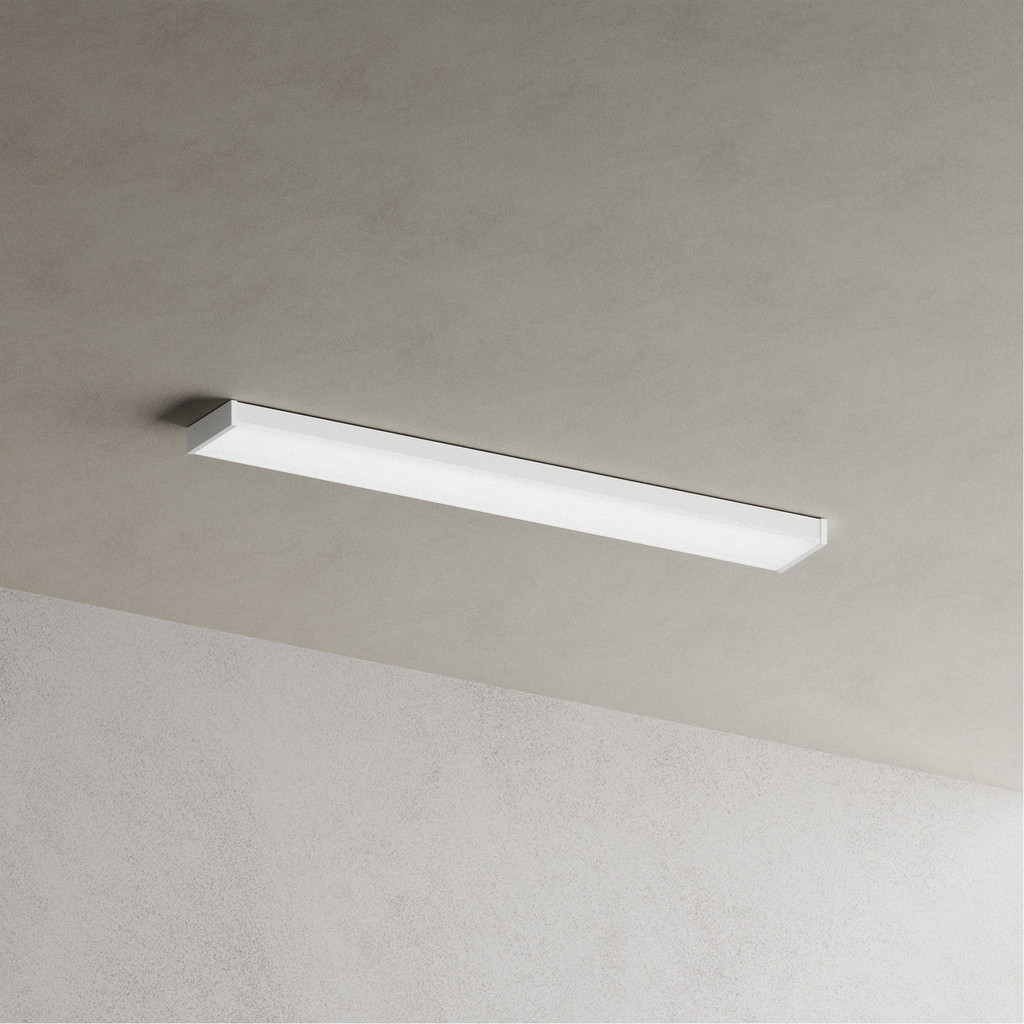

ULTRA-4 LINEAR
Linear Fixture
2250LM - 3720LM | 18W - 31W IP44 | 3000K
ULTRA-5 LINEAR
Linear Fixture
2898LM - 4840LM | 23W - 40W IP44 | 3000K
Linear Fixture
Product CodeCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
3000K/4000K18W2250 LM / 2358 LM125LM/W / 131LM/WDALI DimmableAvailable-
3000K/4000K18W2250 LM / 2358 LM125LM/W / 131LM/WDALI DimmableYes337 LM / 354 LM
3000K/4000K18W2250 LM / 2358 LM125LM/W / 131LM/WSwitchedYes337 LM / 354 LM
3000K/4000K22W2772 LM / 2904 LM126LM/W / 132LM/WDALI DimmableAvailable-
3000K/4000K22W2772 LM / 2904 LM126LM/W / 132LM/WDALI DimmableYes416 LM / 436 LM
3000K/4000K22W2772 LM / 2904 LM126LM/W / 132LM/WSwitchedYes416 LM / 436 LM
3000K/4000K27W3294 LM / 3429 LM122LM/W / 127LM/WDALI DimmableAvailable-
3000K/4000K27W3294 LM / 3429 LM122LM/W / 127LM/WDALI DimmableYes395 LM / 413 LM
3000K/4000K27W3294 LM / 3429 LM122LM/W / 127LM/WSwitchedYes395 LM / 413 LM
3000K/4000K31W3720 LM / 3844 LM120LM/W / 124LM/WDALI DimmableAvailable-
3000K/4000K31W3720 LM / 3844 LM120LM/W / 124LM/WDALI DimmableYes372 LM / 385 LM
3000K/4000K31W3720 LM / 3844 LM120LM/W / 124LM/WSwitchedYes372 LM / 385 LM
