CMF-14W-9016-3K
Low UGR Suspended Curved Panel
Led Panels
CATEGORYInterior
PRODUCT RANGECMF PANEL
COLORWhite
The CMF is a low UGR suspended linear panel constructed from Aluminium and rated to IP20. The fitting comes with an integral driver. Colour consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy alongside an LED chipset at CRI>80 ensuring light quality. Available as Switched, 1-10V and DALI dimming options in 3000k and 4000K colour temperature.
Optical Performance
Wattage14W
Lumen Output1624LM
Efficacy116LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220V
Milliamp / Current300MA
Driver ConfigurationFIXTURE MOUNTED
ControlSWITCHED
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Length1195 MM
Width / Depth295 MM
Height54 MM
Weight5.5KG
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TPA
Emergency
EmergencyAVAILABLE
Emergency ConfigurationFIXTURE MOUNTED

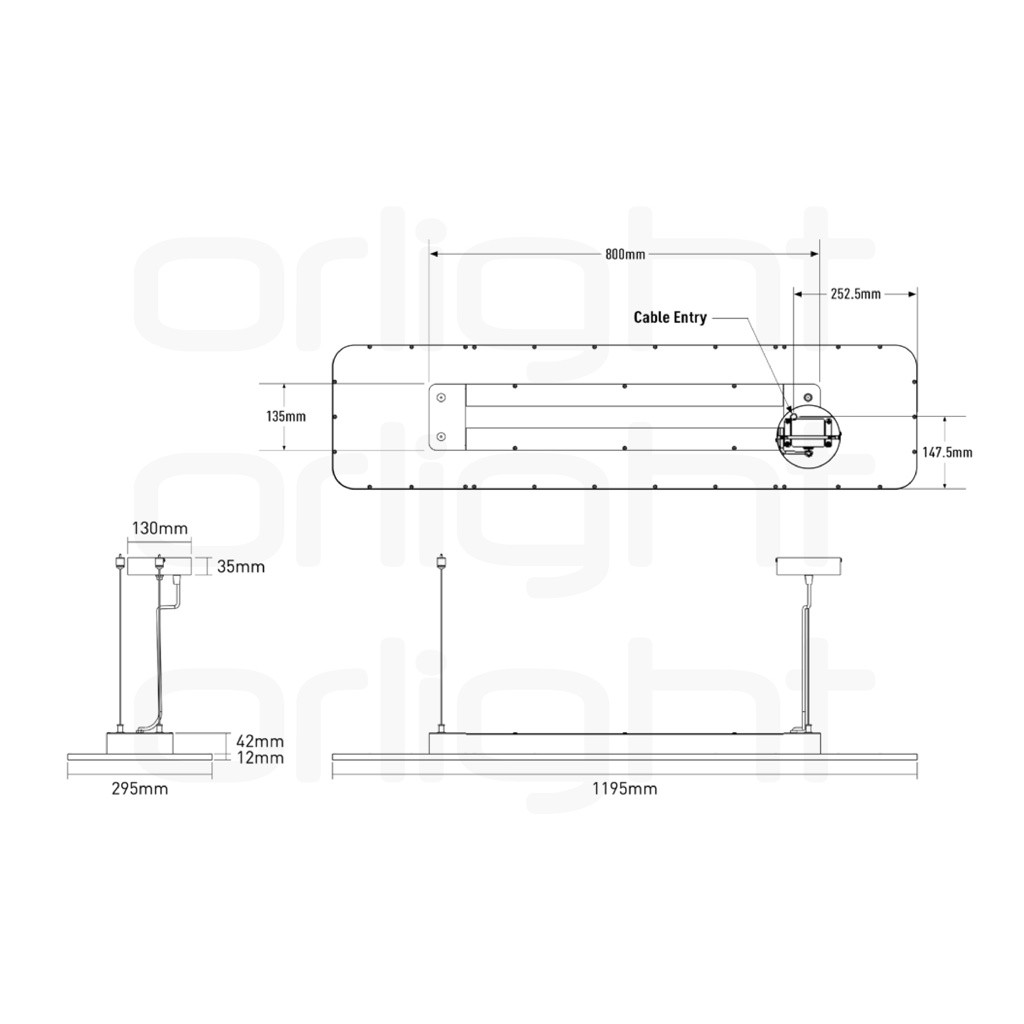

Dimensions

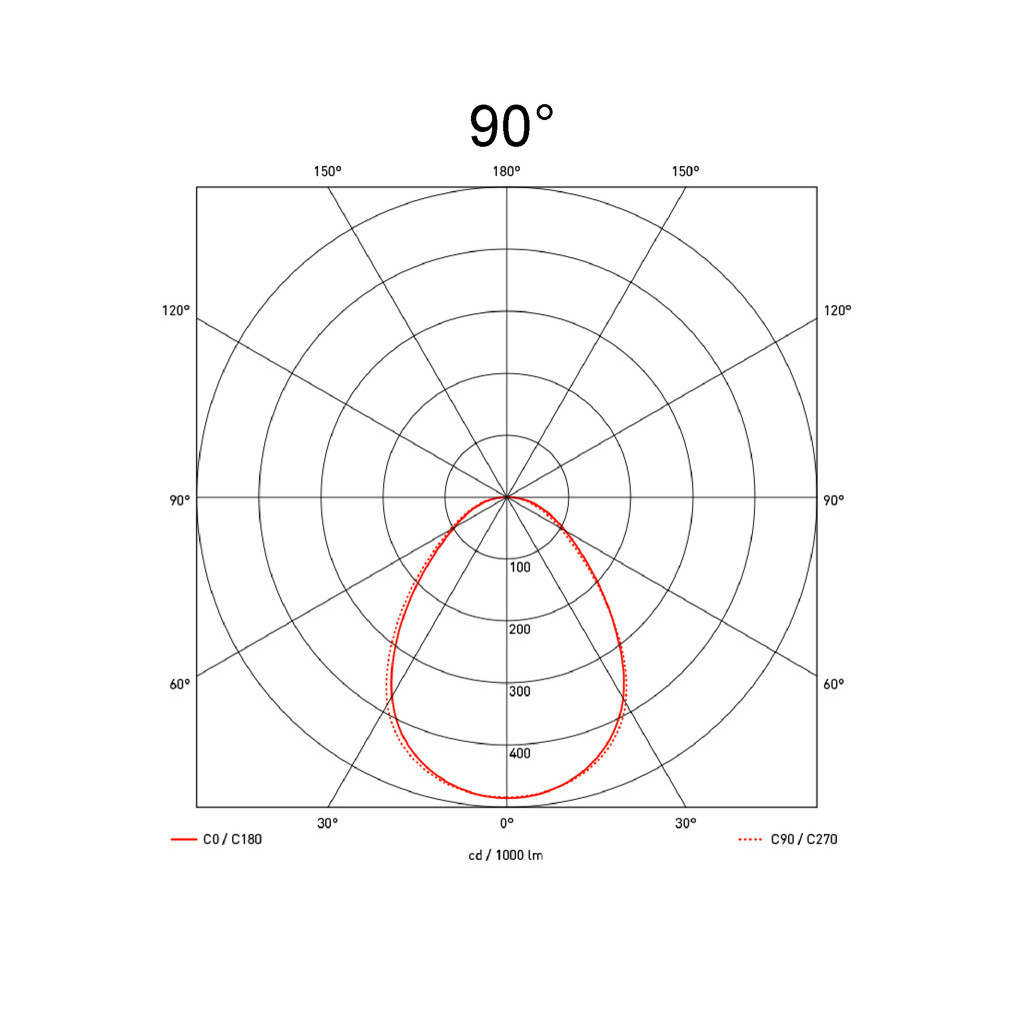

Light Distribution
90°
