ORL-X14U-WH-4K-MS
High Output LED Surface Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORLX14
COLORWhite
High Powered IP65 rated fixture with polycarbonate construction and anti-glare diffuser. Integral control gear, with CRI>80 to ensure light quality. Side conduit entry points and twist / lock mechanism diffuser for ease of installation and maintenance. Emergency options available.
Optical Performance
Wattage20W
Lumen Output2380LM
Efficacy119LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage200-240V
Milliamp / Current520MA
Driver ConfigurationINTEGRAL
ControlMICROWAVE SENSOR
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter315 MM
Height96 MM
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-20˚C - +45˚C
TP(a)/TP(b)TPA
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

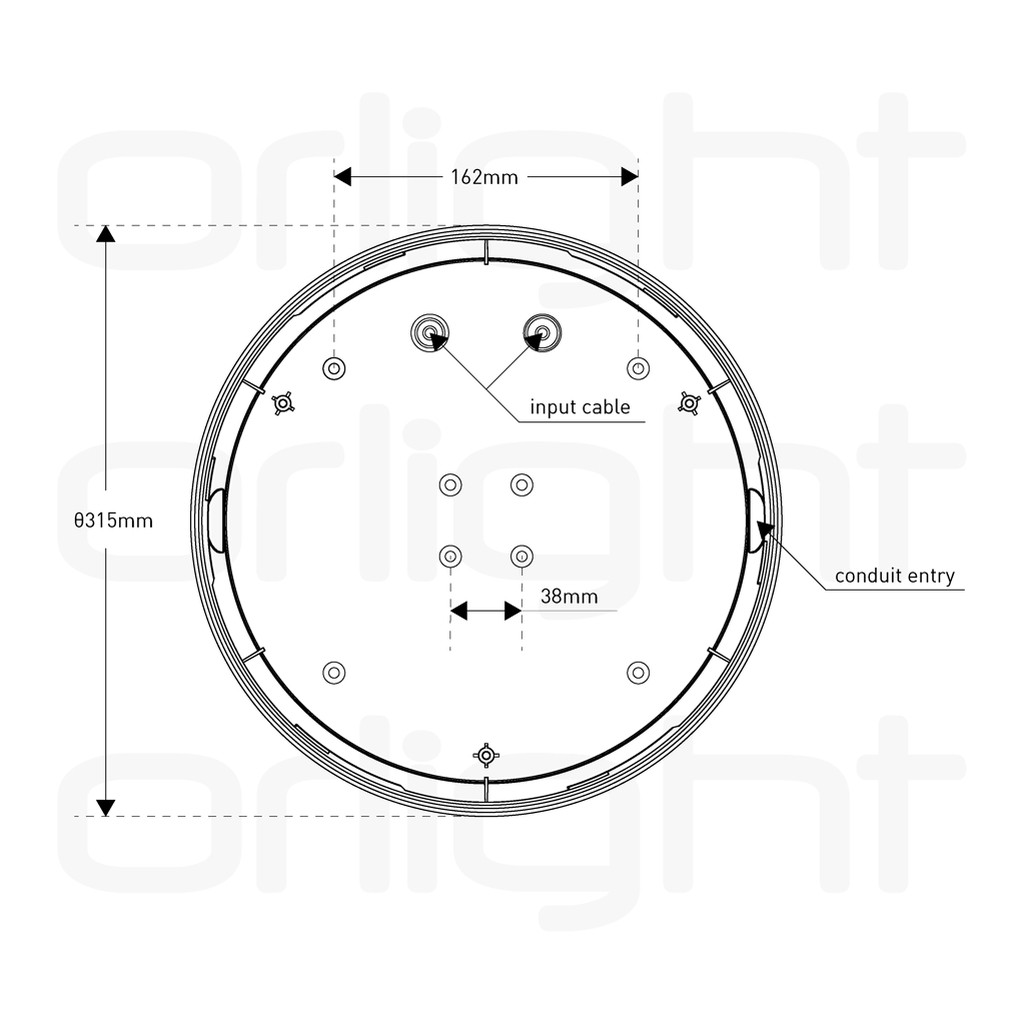

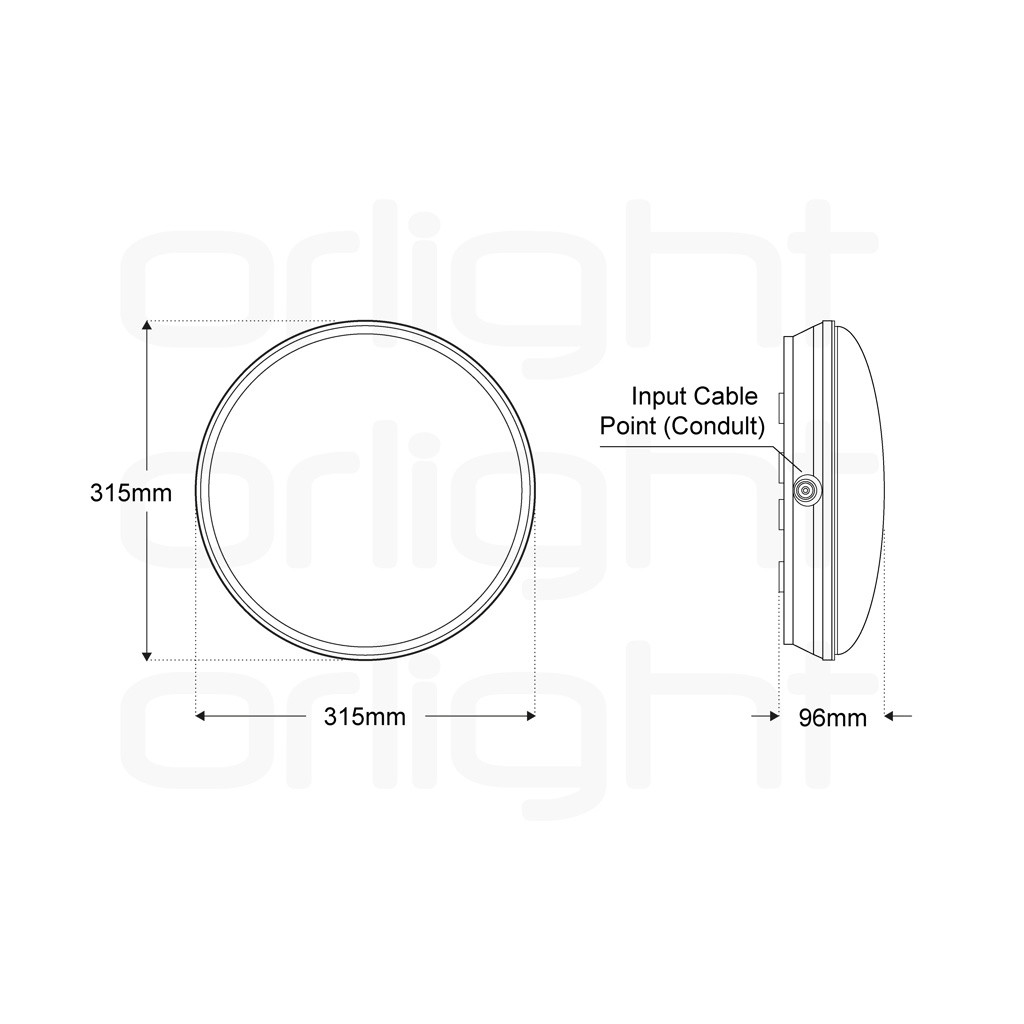

Dimensions

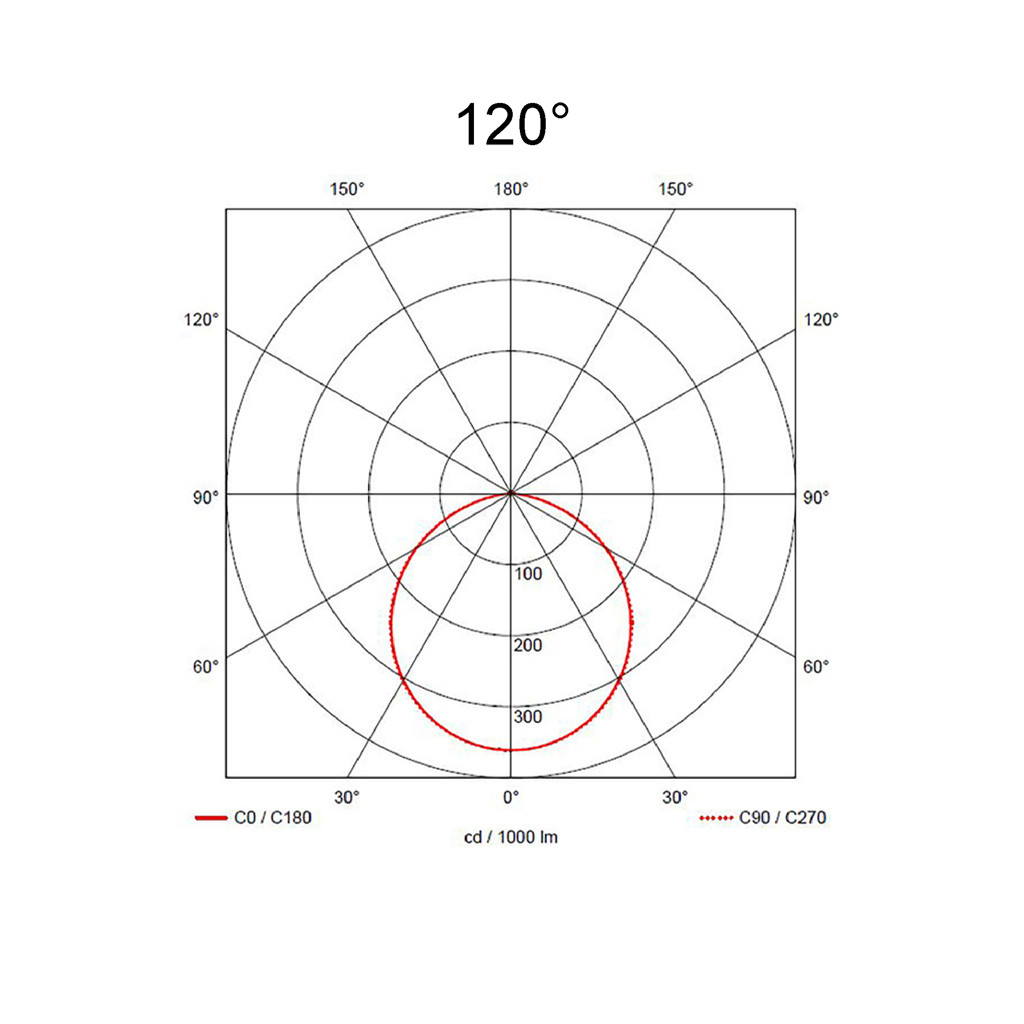

Light Distribution
120°
