ORL-X14U-WH-3K-DALI-B-EM
High Output LED Surface Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORLX14
COLORWhite
High Powered IP65 rated fixture with polycarbonate construction and anti-glare diffuser. Integral control gear, with CRI>80 to ensure light quality. Side conduit entry points and twist / lock mechanism diffuser for ease of installation and maintenance.
Optical Performance
Wattage20W
Lumen Output2280LM
Efficacy114LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current520MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Diameter315 MM
Height96 MM
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-20˚C - +45˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen343LM

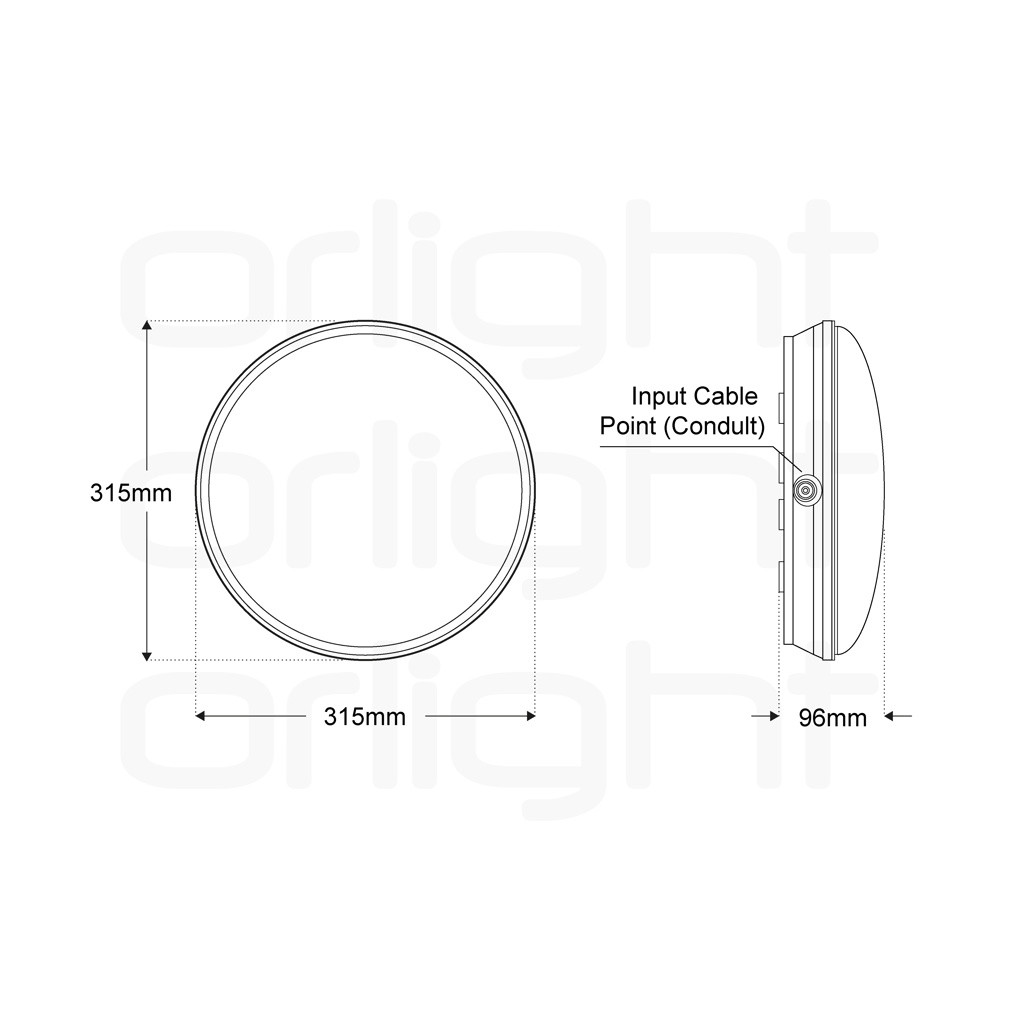

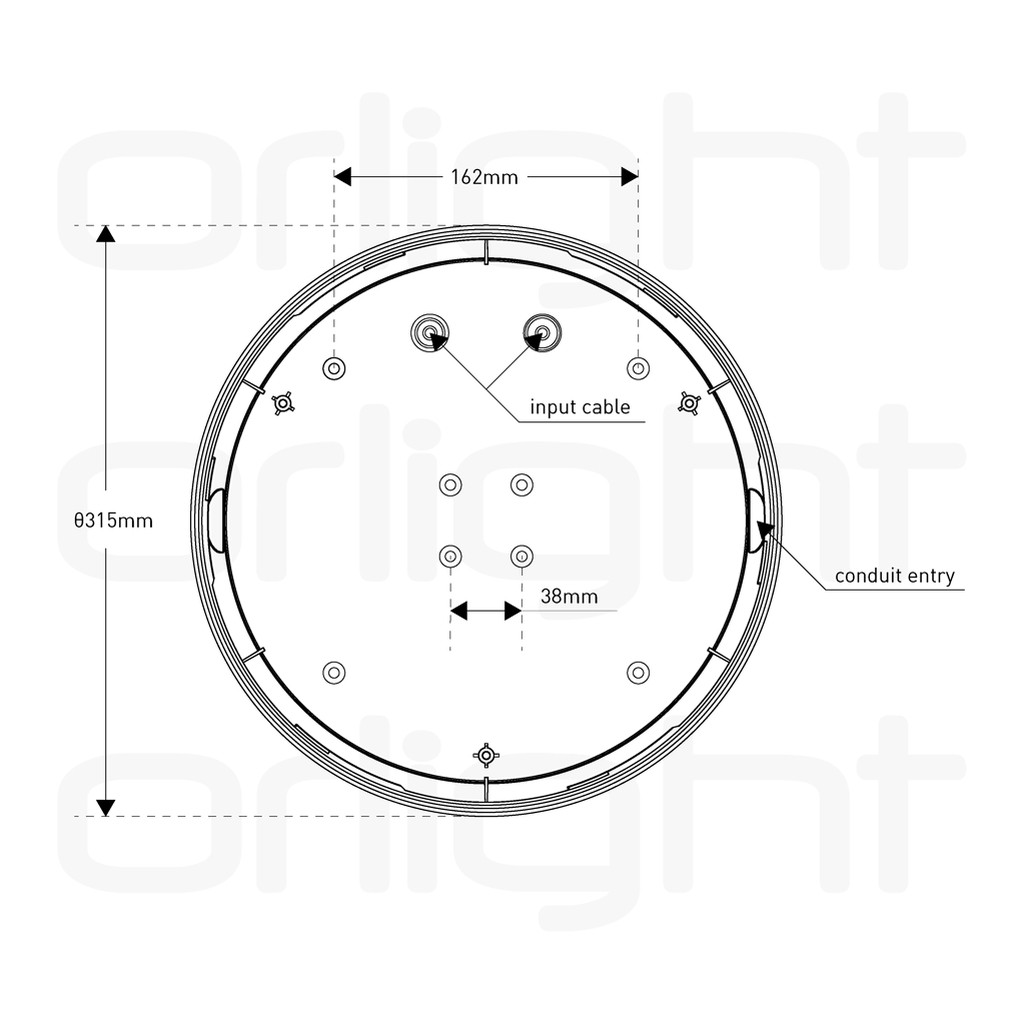

Dimensions

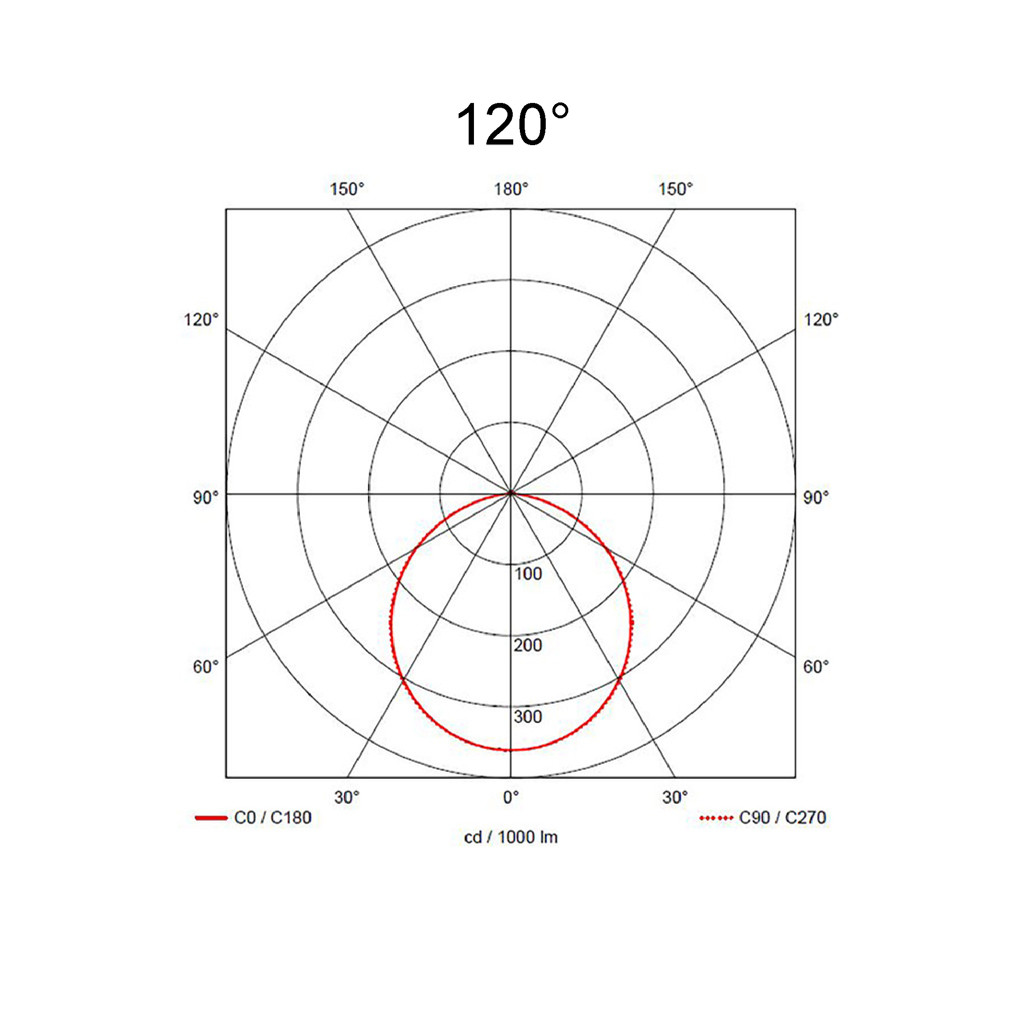

Light Distribution
120°
