ORLLEDBT-600-15W-9016-4K
Linear LED Fixture
Surface
CATEGORYInterior
PRODUCT RANGEORLLEDBT
COLORWhite
Linear LED fitting featuring Aluminium construction finished in white RAL9016 and an opal diffuser. Integral LED driver with configurations to accommodate 1-10V, DALI and emergency options. This 2FT LED luminaire can be surface mounted or suspended depending on the desired application. Do not connect battery supply until 220/240V A.C. supply is permanently fed, and lamp fitted. Allow 24 hours charge before running lamp in emergency mode.
Optical Performance
Wattage15W
Lumen Output1800LM
Efficacy120LM/W
CCT4000K
CRICRI > 80
Beam Angle120°
ChipsetSMD 2835
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length600 MM
Width / Depth124 MM
Height68 MM
Weight2KG
FinishWHITE
RALRAL 9016
IP RatingIP20
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
TP(a)/TP(b)TP(A)
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

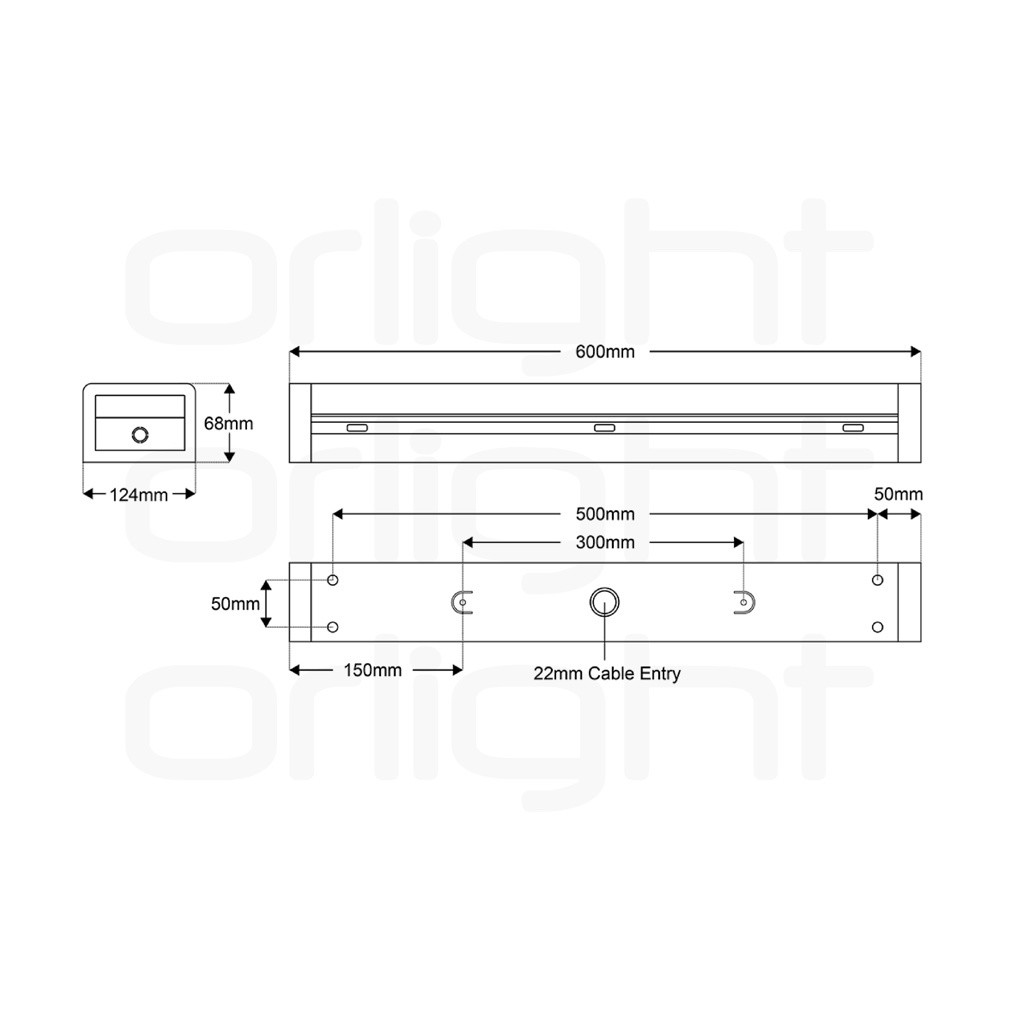

Dimensions

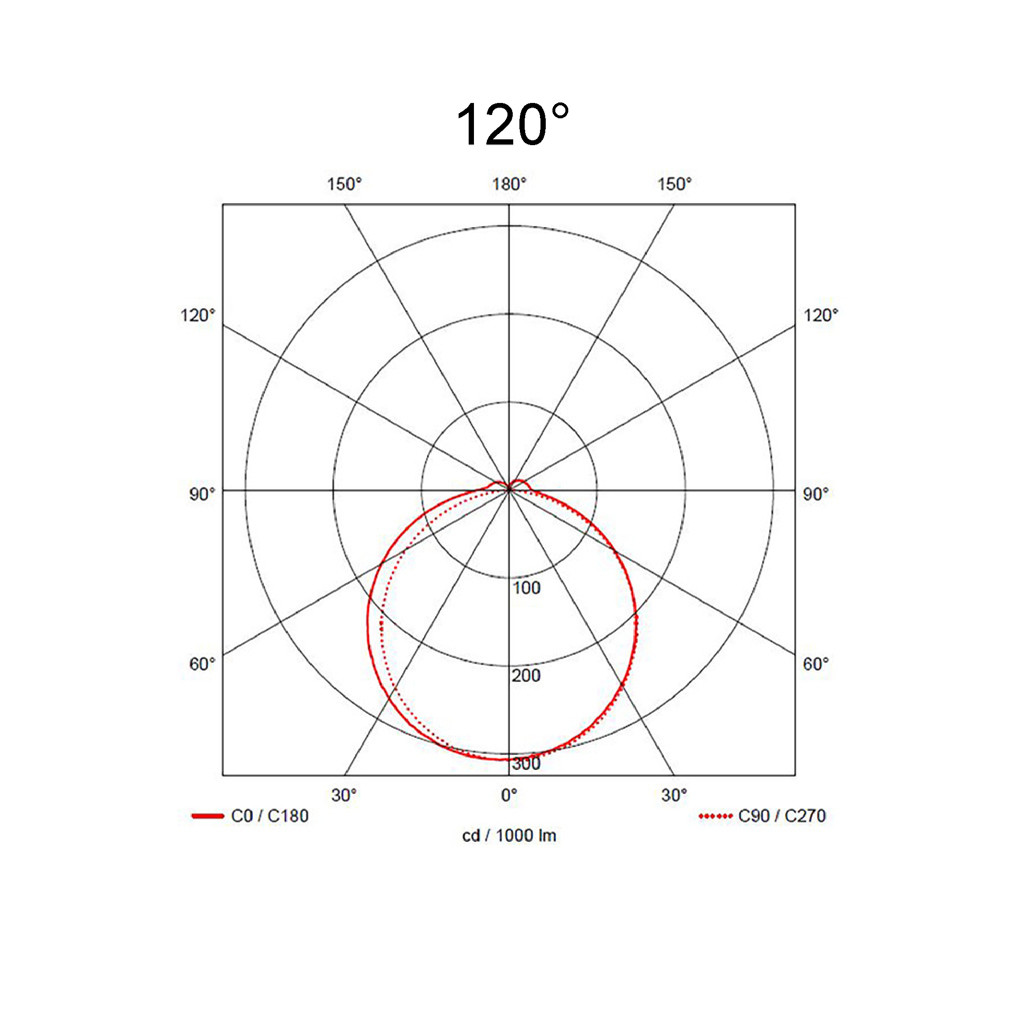

Light Distribution
120°
