REFRACT2-2400K-500MM
Diffused Linear LED
Flexible Linear
CATEGORYInterior
PRODUCT RANGEREFRACT2
COLORAluminium
The fixture features superior grade aluminium extrusion with embedded chipset. A light diffusion channel facilitates the spread of light whilst a translucent diffuser enhances light uniformity, concealing individual LED light sources. The unit is available in various lengths, with a small product footprint regardless of size. Integrated Plug-and-Play connections with high bond adhesive liner allow for simple installation. High longevity with a 50,000 hour chip life.
Optical Performance
Wattage12W/M
Lumen Output394LM
Efficacy33LM/W
CCT2400K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSOLID STATE LED
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage12V
Construction
InstallationSURFACE / RECESSED
ConstructionALUMINIUM & OPAL
Length500 MM
Width / Depth14 MM
Height16 MM
FinishALUMINIUM
IP RatingIP44
Cut Points20 MM

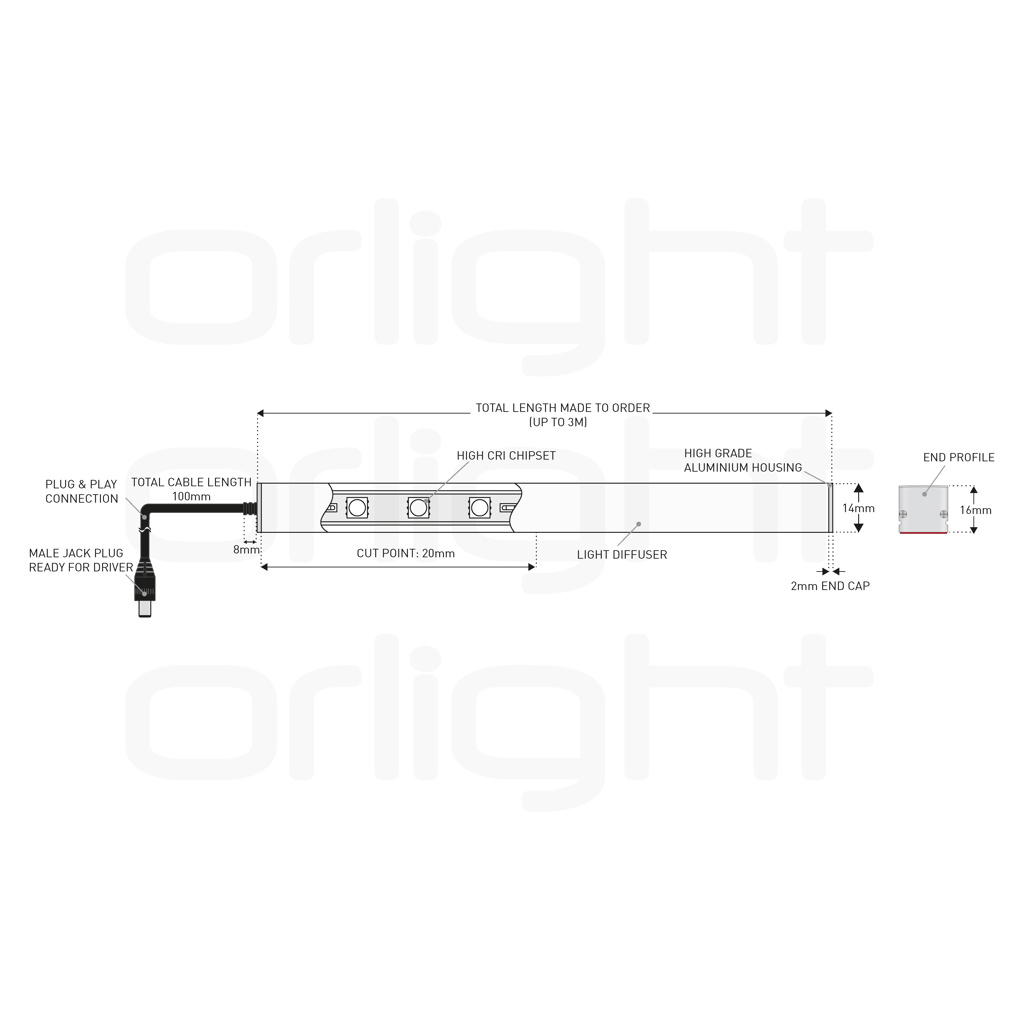

Dimensions

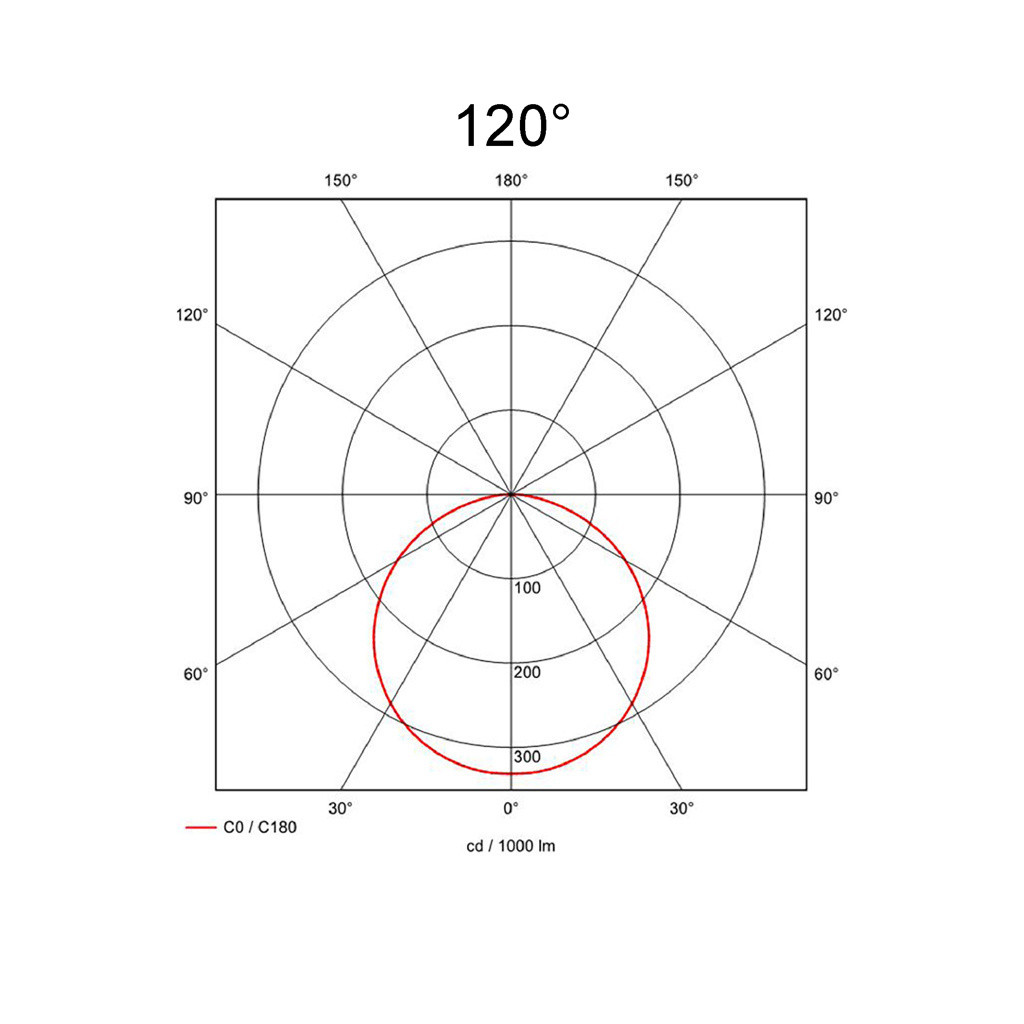

Light Distribution
120°
