MARINEFLEX-TOP-TW-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGEMARINEFLEX
COLORWhite

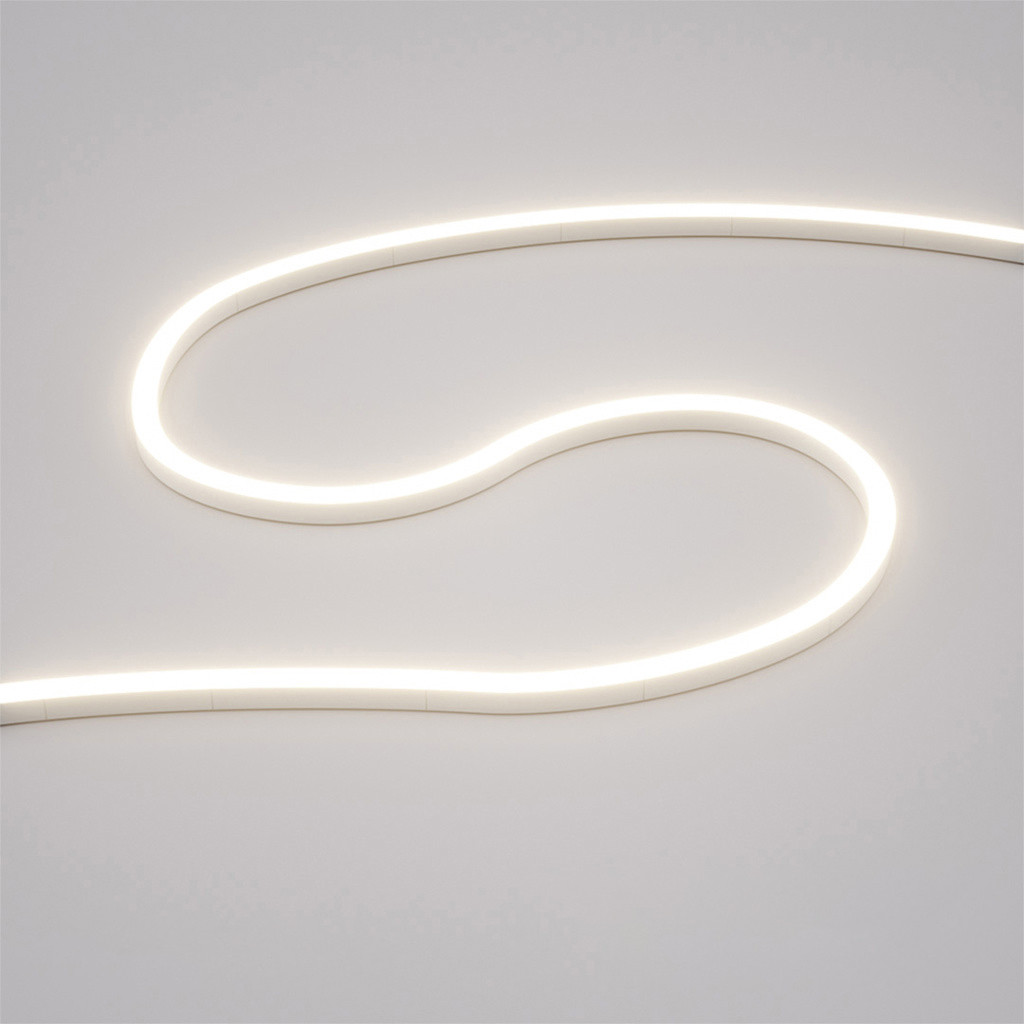

This IP67-rated strip delivers clean, top-emitting light —ideal for coves, under-shelf, and feature lighting. Built for durability, made from silicone, with UV and chemical resistance, suited for indoor and outdoor use. Available in tuneable white 2700K–5300K with CRI >90 for excellent colour rendering and visual clarity. 2-Step MacAdam binning and dot-free technology ensure consistent, flawless illumination. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionSILICONE
Length1000MM
Width / Depth16 MM
Height17 MM
FinishWHITE
IP RatingIP67
IK RatingIK09
Operating Ambient Temperature-40˚C - +45˚C
Cut Points71.4 MM
Max Cut Length10000 MM
Optical Performance
Wattage13W/M
Lumen Output858LM/M
Efficacy66LM/W
CCT2700K-5300K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetLUMILEDS 2835 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Dimensions
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2.5M | |
| 15214 | ORLRPV2460 | Switched | 4.5M | |
| 15199 | ORLRPV24100 | Switched | 7.5M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 34998 | ORLDALIIF-12-24-36V-TW-RGBW-DT8 | Interface | 10M |
