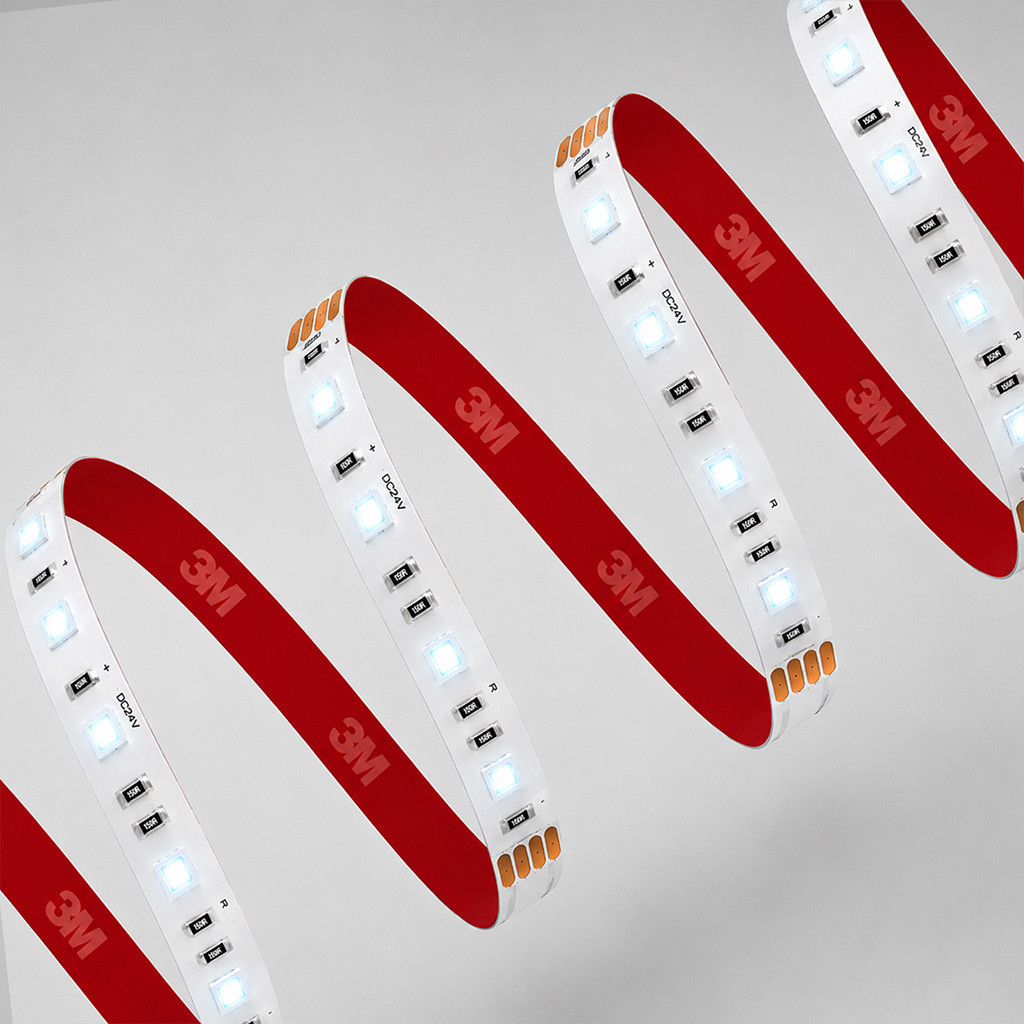

ORLTE6024EVO4-RGBW-IP65-10W-S
Nano Coated EVO4 24V LED Strip
Flexible Linear
CATEGORYInterior
PRODUCT RANGEEVO4
High-output self-adhesive RGBW LED strip, supplied per metre complete with plug-and-play connections. Featuring 3M adhesive backing for simple installation, the strip can be cut every 62.5mm, allowing you to tailor it precisely to your project requirements. The maximum continuous cut length is 5 metres. A durable Nano coating provides an IP65 rating, offering protection against dust and water ingress while maintaining excellent performance. Please click here to view available cut lengths and driver configuration.
Optical Performance
Wattage10W/M
Lumen Output550LM/M
Efficacy55LM/W
CCTRGBW
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD 5050 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Construction
InstallationPLUG & PLAY
ConstructionPCB & NANO COATING
Width / Depth12 MM
Height2.5MM
IP RatingIP65
Cut Points62.5 MM
Max Cut Length5000 MM

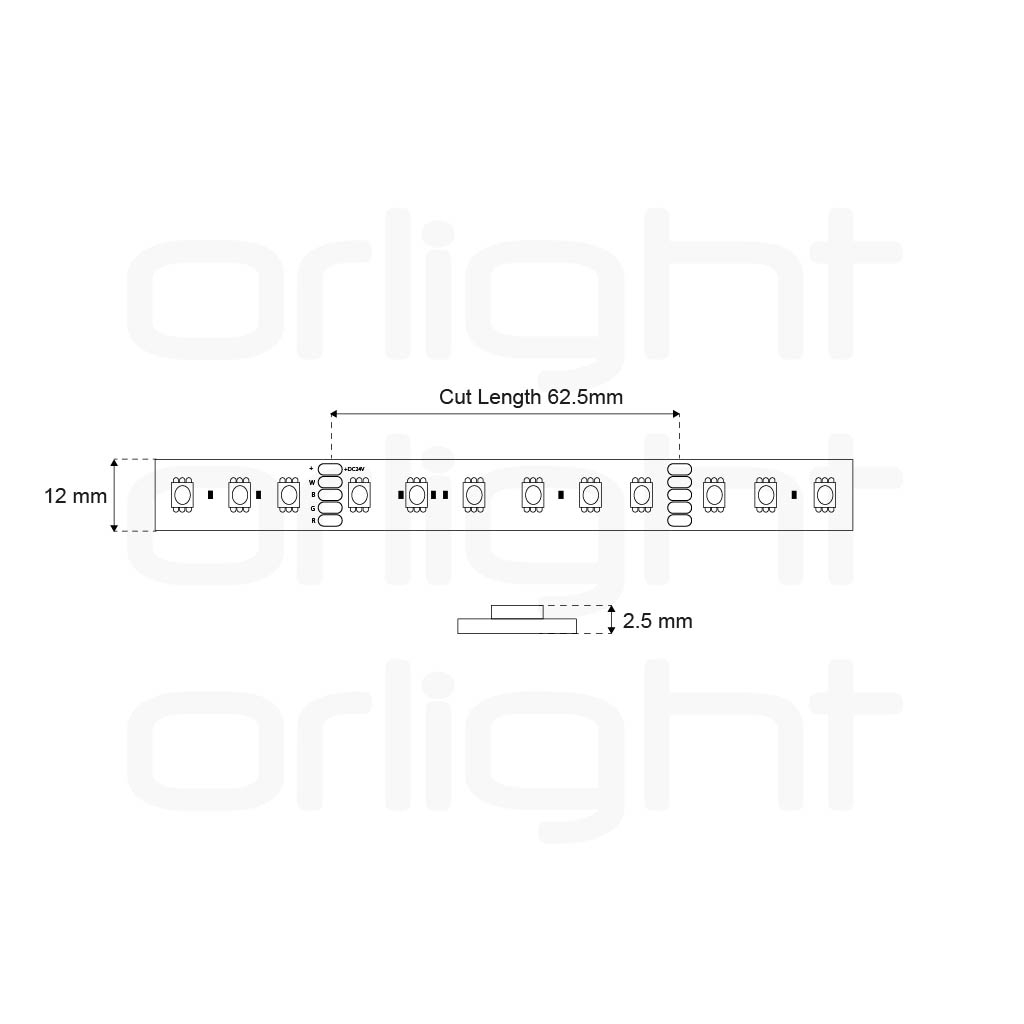

Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 3M | |
| 15214 | ORLRPV2460 | Switched | 5M | |
| 34998 | ORLDALIIF-12-24-36V-TW-RGBW-DT8 | DALI Interface | 5M |
