ORLTE6024EVO4-1800K-6500K-TW-10W-S
Nano Coated EVO4 24V LED Strip
Flexible Linear
CATEGORYInterior
PRODUCT RANGEEVO4

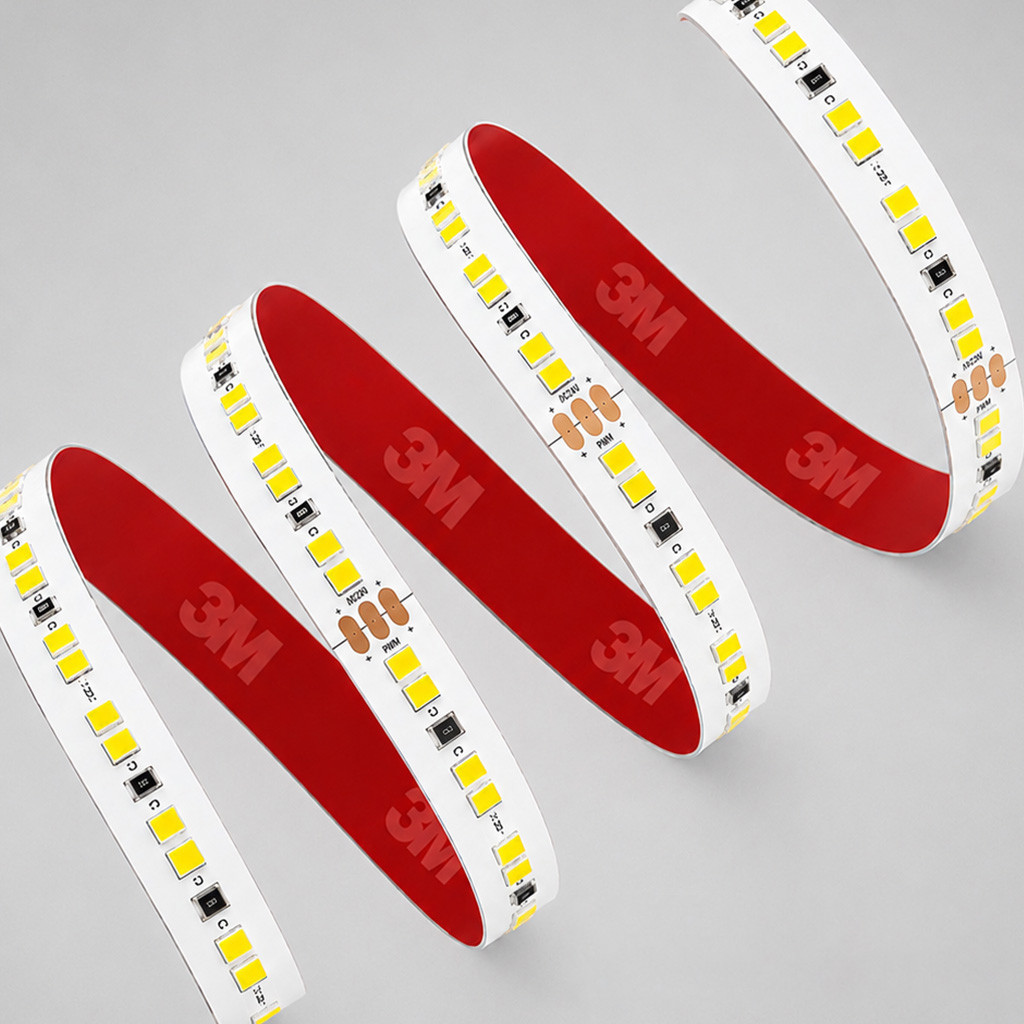

High-output self-adhesive Tunable White LED strip, offering a colour temperature range from 1800K to 6500K. Supplied per metre complete with plug-and-play connections. Featuring 3M adhesive backing for simple installation, the strip can be cut every 71.43mm, allowing you to tailor it precisely to your project requirements. The maximum continuous cut length is 10 metres. A durable Nano coating provides an IP65 rating, offering protection against dust and water ingress while maintaining excellent performance. The technically enhanced EVO LED design delivers reliable, high-quality illumination across the full tunable white range. Please click here to view available cut lengths and driver configuration.
Optical Performance
Wattage10W/M
Lumen Output900LM/M
Efficacy90LM/W
CCT1800K-6500K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSANAN 2835 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Construction
InstallationPLUG & PLAY
ConstructionPCB & NANO COATING
Width / Depth12 MM
Height2 MM
IP RatingIP65
Cut Points71.43 MM
Max Cut Length10000 MM
Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 3M | |
| 15214 | ORLRPV2460 | Switched | 6M | |
| 15199 | ORLRPV24100 | Switched | 10M | |
| 34998 | ORLDALIIF-12-24-36V-TW-RGBW-DT8 | DALI Interface | 10M |
