ORLTE6024EVO-4000K-CRI90-S
EVO 24V CRI90 LED Strip
Flexible Linear
CATEGORYInterior
PRODUCT RANGEEVO
COLORWhite

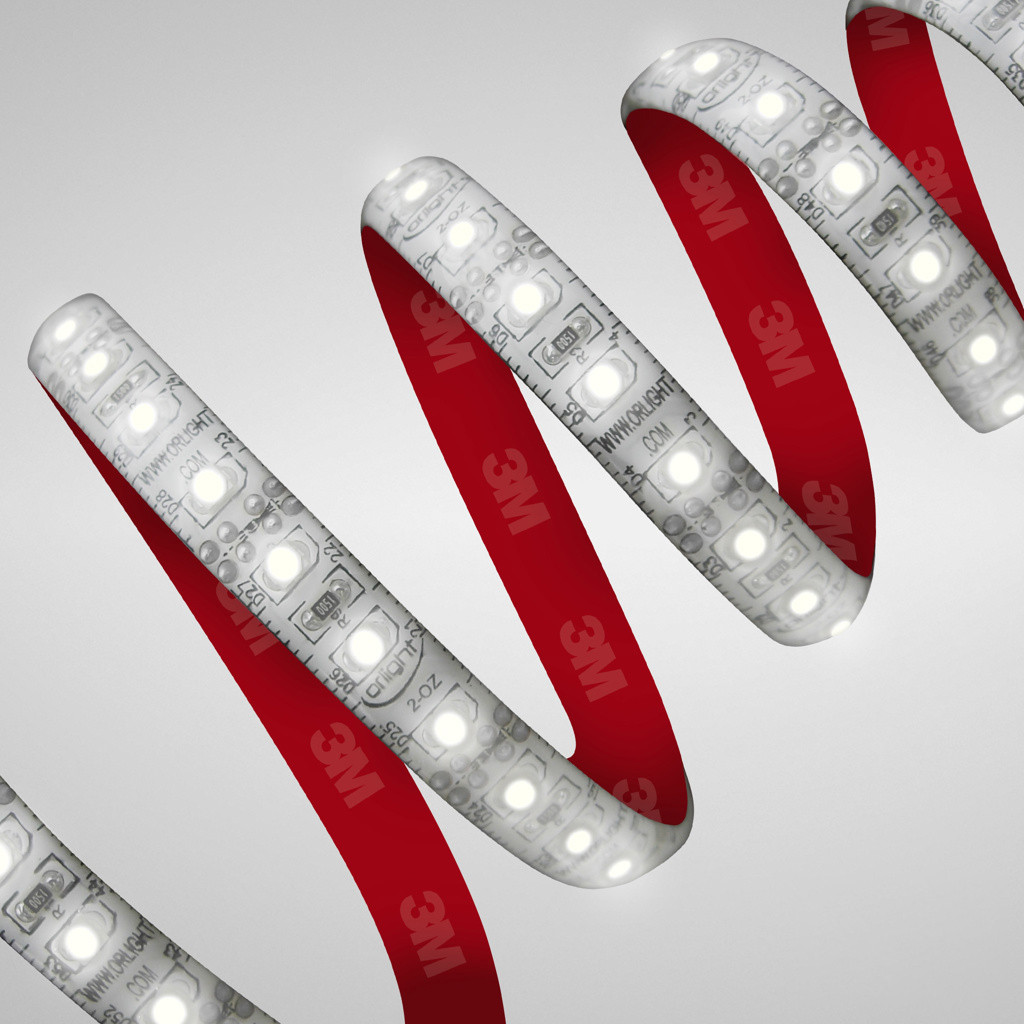

Adhesive LED strip with technical enhancement combined with the Orlight Evolution high CRI colour chipsets. Heavier 2oz copper board allows for greater heat dissipation and longevity. High purity epoxy IP65 coating. Supplied in bespoke lengths with Plug & Play connections and foam based 3M adhesive linings. Available in combination with Mains Dimmable, 1-10V and DALI dimmable Power Supplies. Solid State LED With Plug & Play Connection. Please click here to view available cut lengths and driver configuration.
Optical Performance
Wattage9.6W/M
Lumen Output778LM
Efficacy81LM/W
CCT4000K
CRICRI > 94
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD5050
Chip LifeL70 > 36,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Construction
InstallationPLUG & PLAY
ConstructionPCB & CLEAR EPOXY
Width / Depth10 MM
Height3 MM
FinishWHITE
IP RatingIP65
Cut Points50 MM
Max Cut Length10000 MM

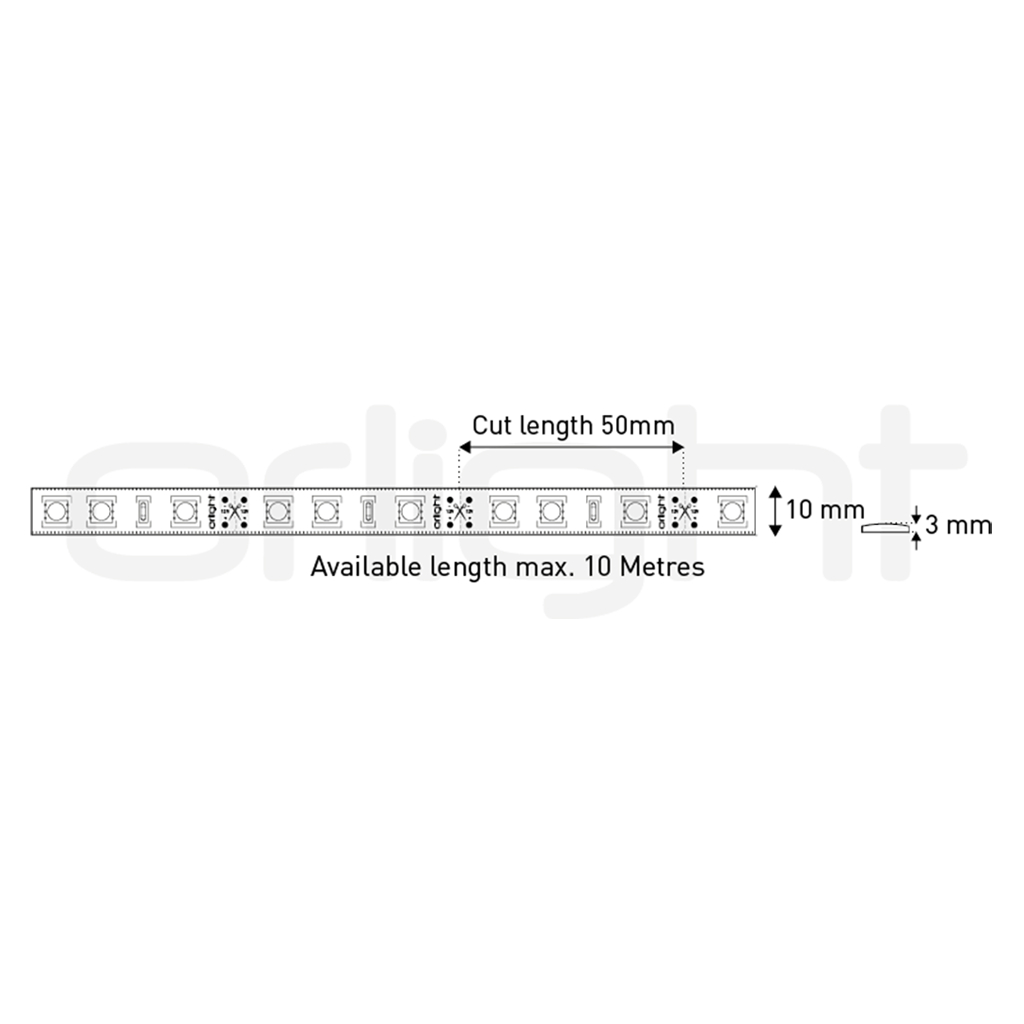

Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Min. Length | Max. Length | Datasheet |
|---|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2M | 3M | |
| 15214 | ORLRPV2460 | Switched | 4M | 6M | |
| 15199 | ORLRPV24100 | Switched | 7M | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 1M | 2M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 3M | 5M | |
| 15169 | ORLRPV100-24MD | Mains Dimmable | 6M | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | 1-10V Interface | — | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | DALI | — | 10M |
