ORLLM104-6000K
Maxi Inground Fixture and Projector
Surface
CATEGORYExterior
PRODUCT RANGENOVA
COLOR316 Marine Grade
Marine Grade 316 stainless steel miniature surface mounted fixture complete with integral CREE LED package. Fixture rated to IP68 allowing submersion in water thus negating common issues arising from lack of soil drainage. Configured to 35 degree beam as standard. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Ideal as a surface mounted miniature marker light. Please Note: This product does not support hot plugging.
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Diameter75 MM
Width / Depth85 MM
Height105 MM
Weight1.05KG
TiltADJUSTABLE
RotationADJUSTABLE
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage6W
Lumen Output665LM
Efficacy111LM/W
CCT6000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle35°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage15V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

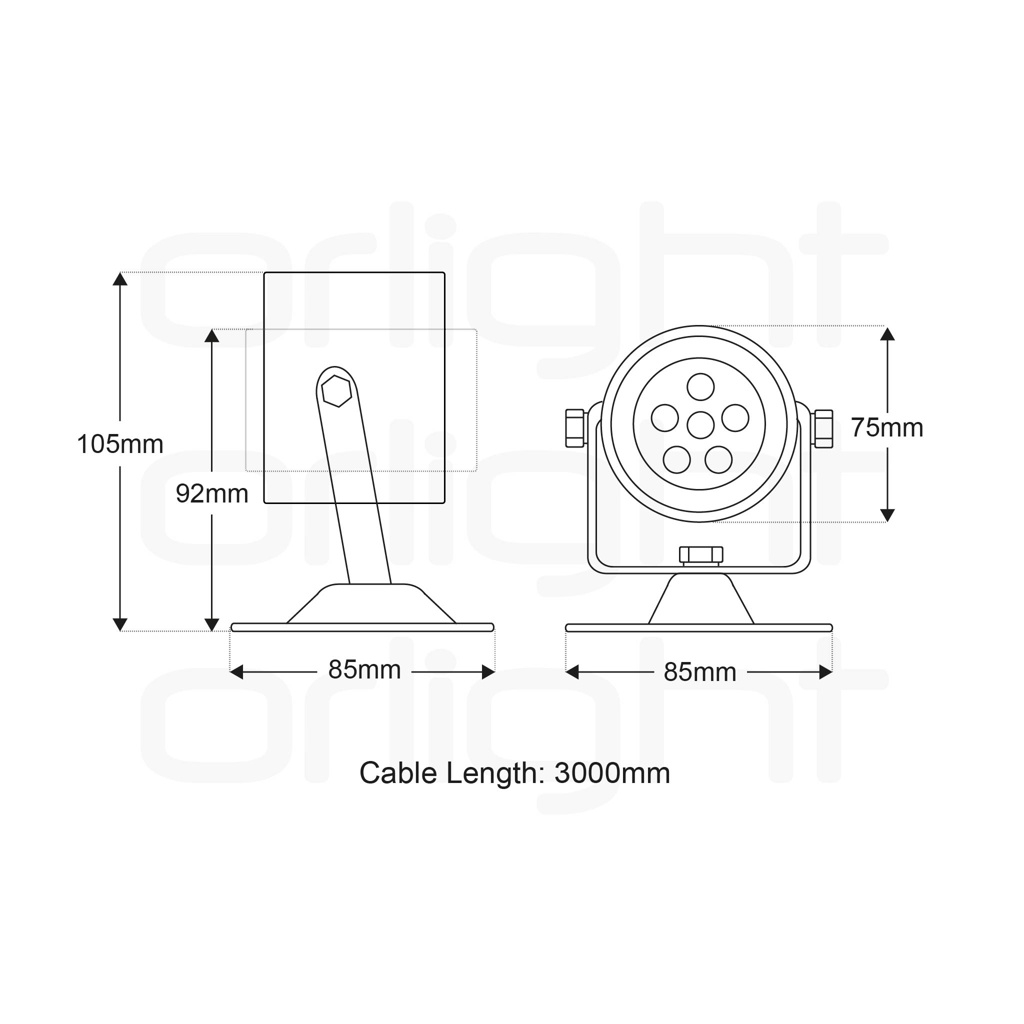

Dimensions

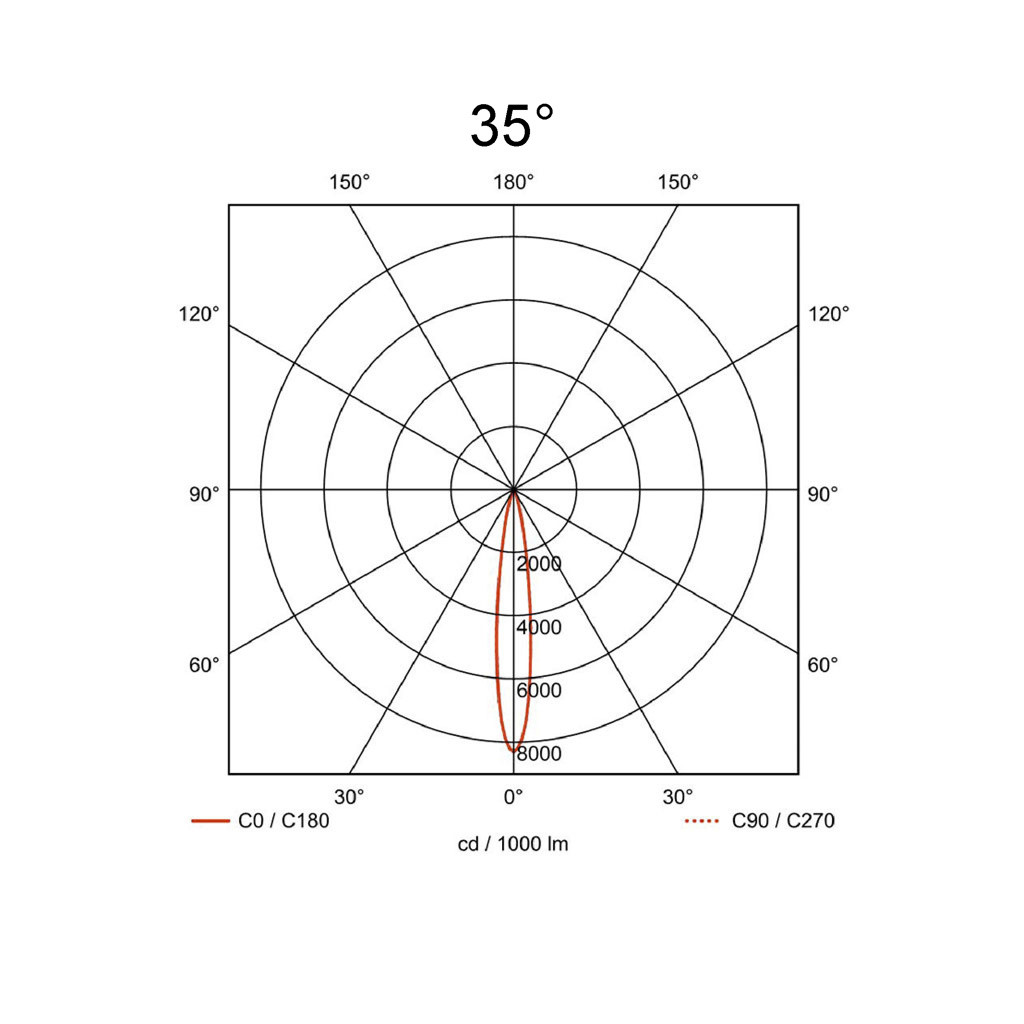

Light Distribution
35°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 1 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 2 | 5 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 2 | 5 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 2 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 2 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 2 |
