FALCON-28W-AN-3K-DALI-B-EM
IP65 Exterior Wall Mounted Bulkhead
Surface
CATEGORYExterior
PRODUCT RANGEFALCON
COLORGrey
Exterior wall mounted bulkhead constructed to IP65 and IK10. Finished in Black RAL9005 or Anthracite RAL7016 with a clear diffuser. CRI >80 for light quality assurance.
Optical Performance
Wattage28W
Lumen Output3780LM
Efficacy135LM/W
CCT3000K
CRICRI > 83
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD 2835
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current725MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationWALL MOUNTED
ConstructionALUMINIUM
Length319 MM
Width / Depth165 MM
Height265 MM
Weight2.35KG
FinishGREY
RALRAL 7016
IP RatingIP65
IK RatingIK10
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen378LM

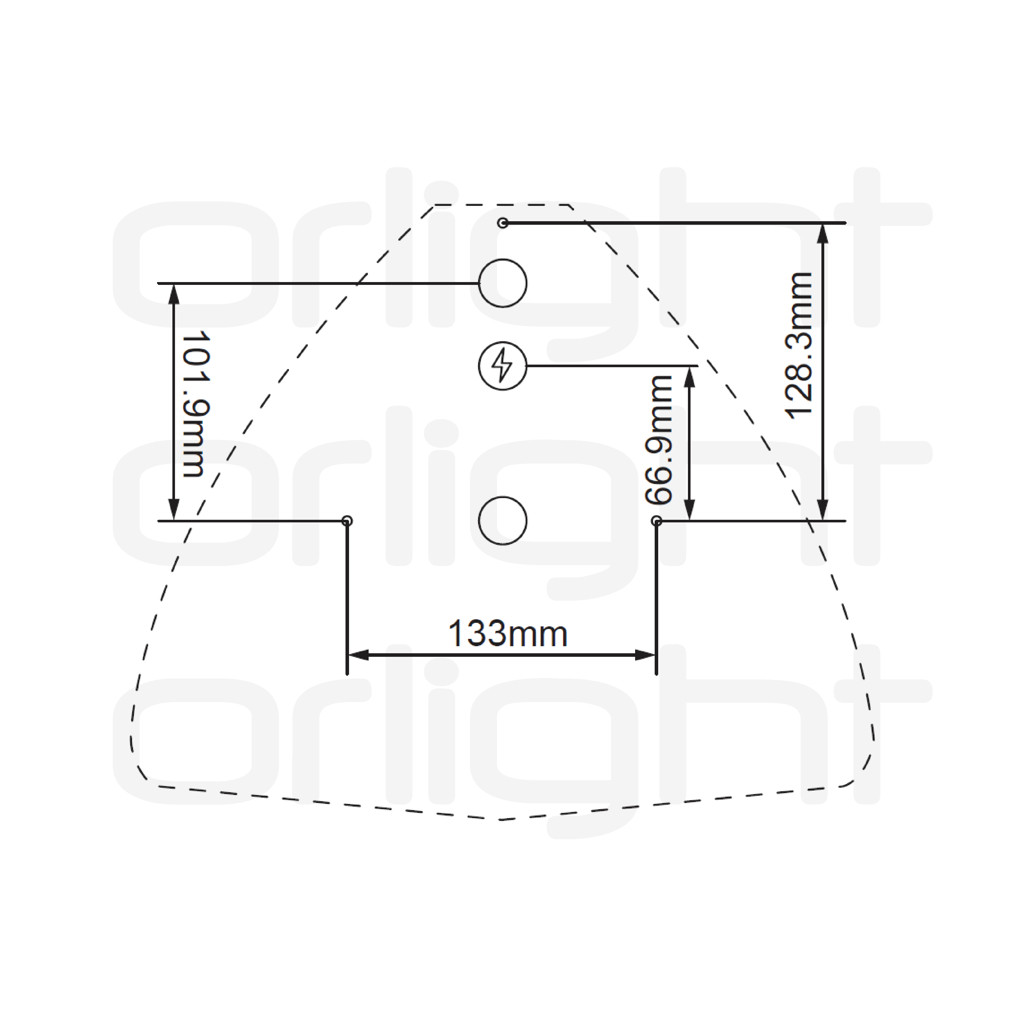

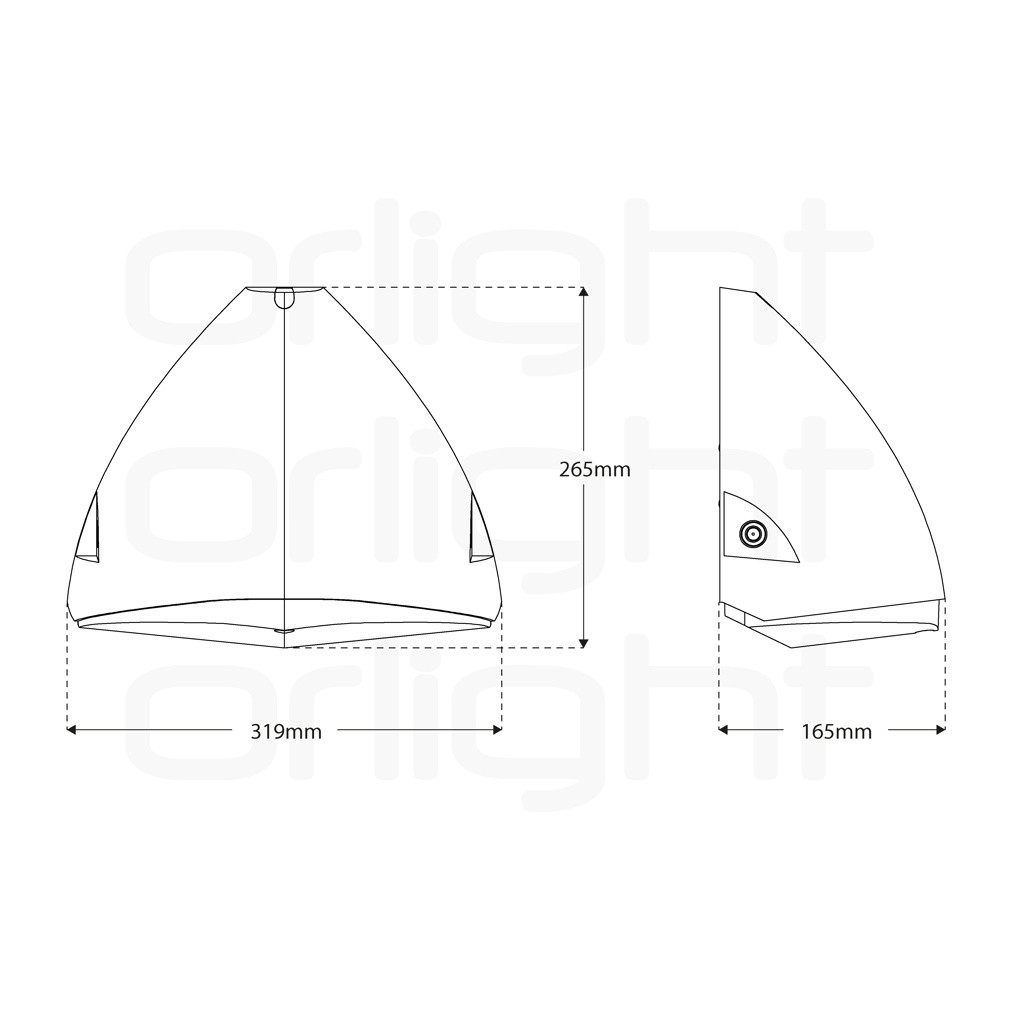

Dimensions

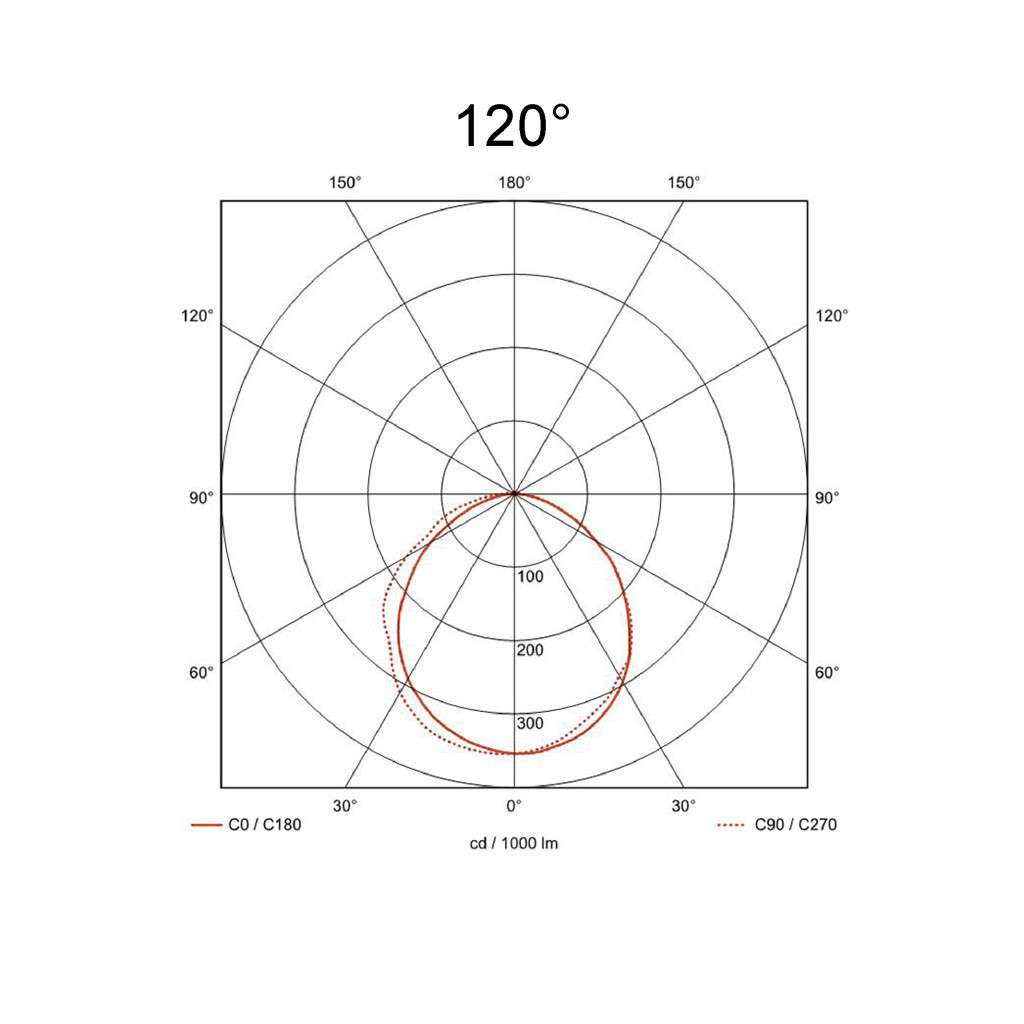

Light Distribution
120°
