ORLLM22-HS-BR-2700K
High Specification Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGETELESO
COLORBronze
Miniature recessed fixture complete with integral CREE XPE package and a 20 degree beam. Marine Grade 316 Stainless Steel option with construction rated to IP68. Bronze and Black RAL9011 finish options feature aluminium construction with Epoxy Powder coat rated to IP65. Product footprint of 22mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter22 MM
Width / Depth17 MM
Height41 MM
Cutout18 MM
Weight0.05KG
TiltFIXED
FinishBRONZE
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output74LM
Efficacy74LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle20°
ChipsetCREE
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3.2V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM

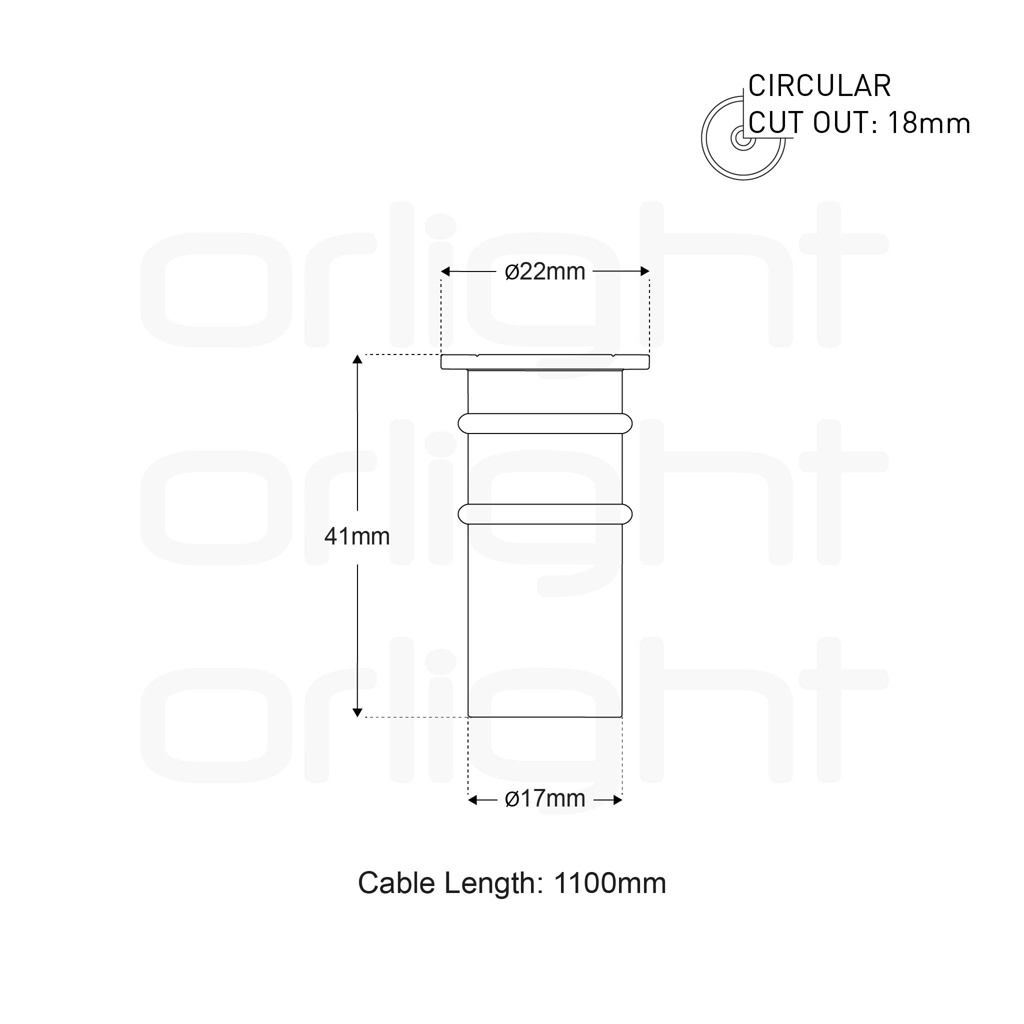

Dimensions

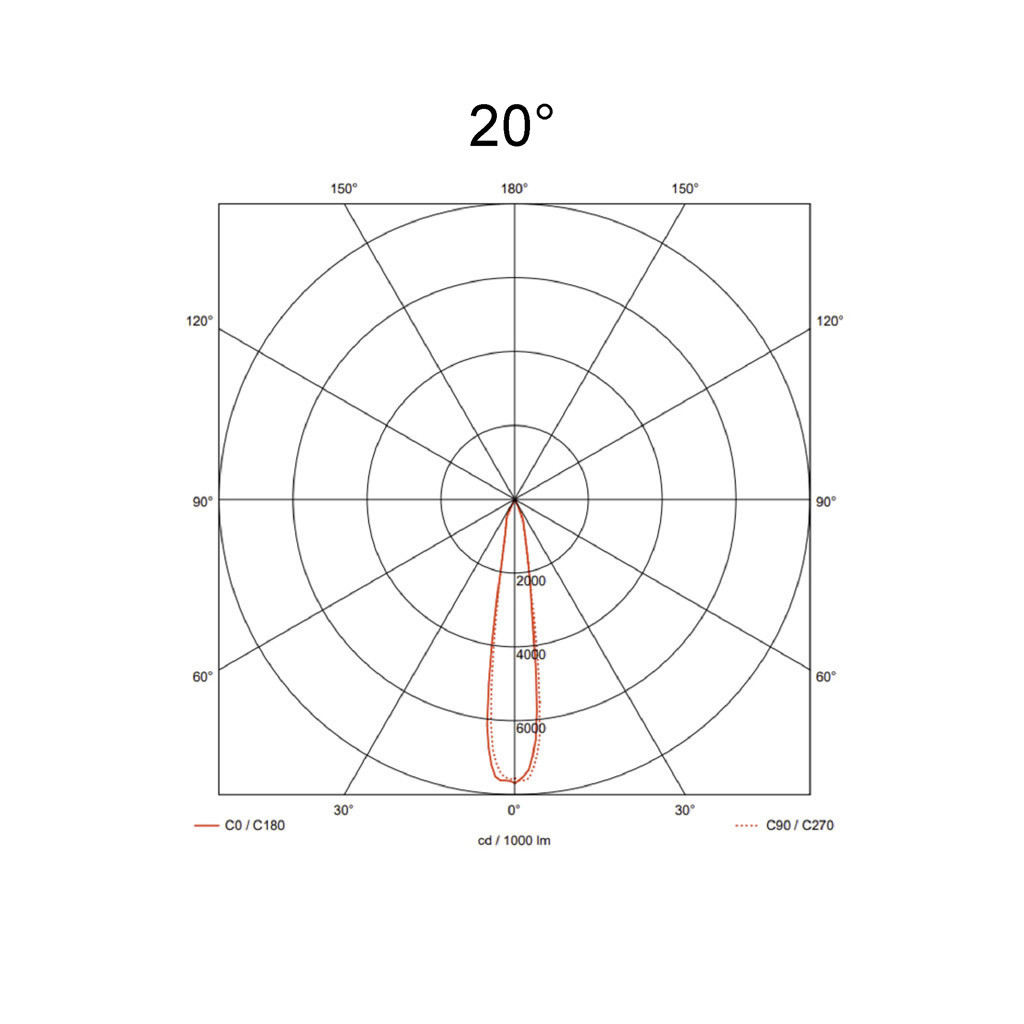

Light Distribution
20°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
Product Support
We're here to help with product enquiries, technical questions, and project support.
