EXTERIOR
CASCADE
IP67 Linear Wall Wash LED Fixture
The CASCADE family is a recessed in-ground architectural luminaire range designed for powerful wall washing and façade illumination. Available in 340mm, 600mm, 1200mm and 2000mm lengths, each fitting features aluminium construction rated to IP67 and an integrated CREE LED chipset. A mechanical tilt mechanism allows adjustment through 0°, 3°, 5° and 8° for precise light projection, while a micro louvre helps reduce glare.
CASCADE can project light up to 10m and offers CRI >80 with 2-Step MacAdam ellipse binning for colour consistency. DALI control is also available.
Range Specifications
InstallationRECESSED
Wattage15W – 72W
Lumen Output1000LM – 5328LM
Colour Temperature3000K – 4000K
ControlDALI DIMMABLE / SWITCHED
340
IP67 Linear Wall Wash LED Fixture 340mm
1000LM | 15W IP68 | 3000K
600
IP67 Linear Wall Wash LED Fixture 600mm
1800LM - 1904LM | 25W IP68 | 3000K - 4000K
1200
IP67 Linear Wall Wash LED Fixture 1200mm
3200LM - 3308LM | 45W IP68 | 3000K - 4000K

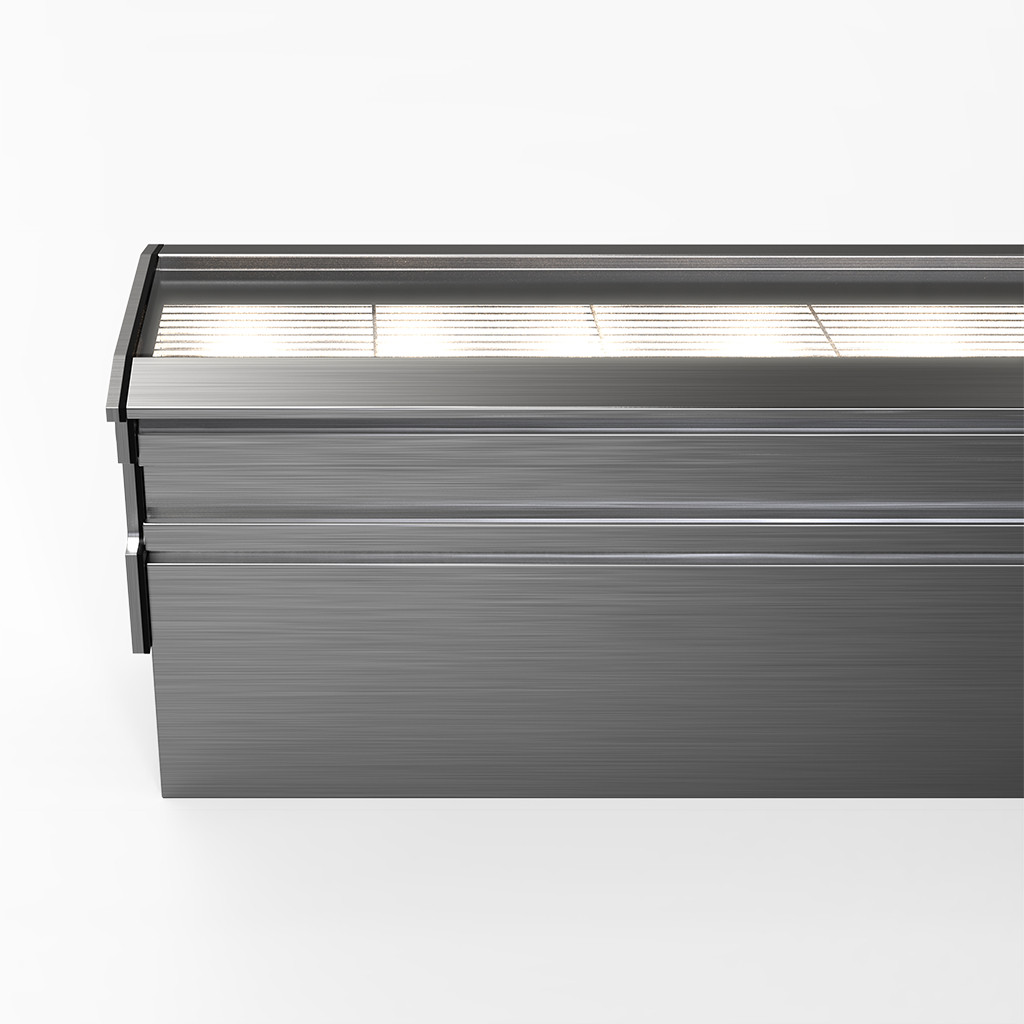

2000
IP67 Linear Wall Wash LED Fixture 2000mm
5328LM | 72W IP68 | 3000K
IP67 Linear Wall Wash LED Fixture 340mm
Product CodeCCTControlDownloads
